SPTM-5V Smart Electric Control Valve Position Transmitter Pneumatic Parts

Smart Position Transmitter

Control Valve Position Transmitter

Pneumatic Valve Position Transmitter

Brand Name:

Rotork YTC

Model Number:

SPTM-5V

Request A Quote

Product Details

Product Name:

Pneumatic Parts ROTORK YTC SPTM-5V Smart Position Transmitter For Valve

Brand:

ROTORK YTC

Model:

SPTM-5V

Matrial:

Alloy/Steel

Valve Style:

Positioner

Impedance:

Max.500 20mA DC

Supply Pressure:

0.14~0.7Mpa

Linearity:

±0.5% F.S

Hysteresis:

±0.5% F.S

Sensitivity:

±0.2% F.S

Reapeatability:

±0.3% F.S

Electric Control Valve With Tissin Smart Valve Positioner TS700 Series Pneumatic Positioners And Asco Solenoid Valve

Get Best Price

Magnetrol 705 706 Heavy Duty Guided Wave Radar Level Transmitter For Water Treatment System

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pneumatic Applications

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pressure Reducing Ball Valves

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

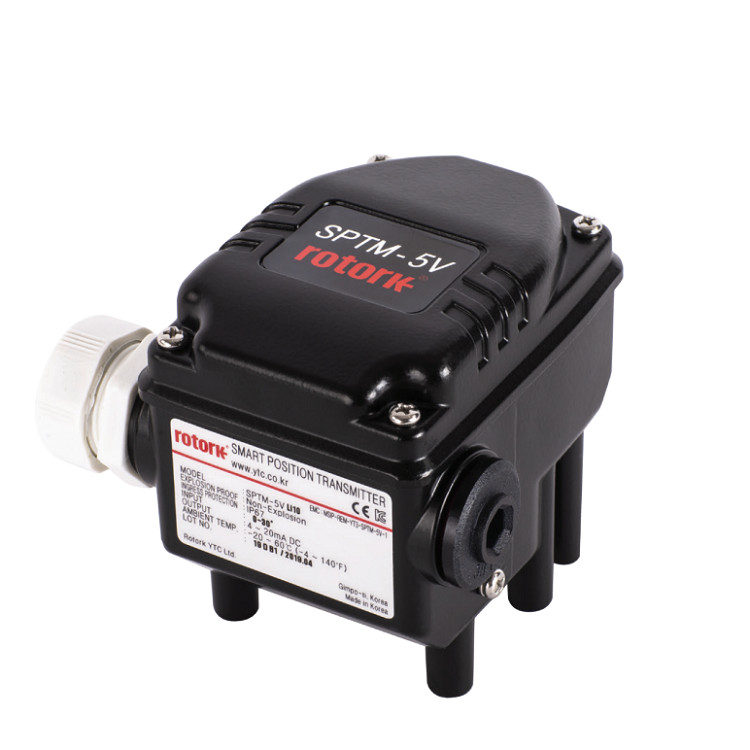

pneumatic parts ROTORK YTC SPTM-5V Smart Position Transmitter for valve


Product Description 2.1 General SPTM-5V series is 2 wire type transmitter with in-built micro-processor which transmits 4 ~ 20 mA

DC signal according to changes in valve or damper position.
2.2 Main Features and Functions
➢ Non-explosion proof.
➢ A wide rangeof uses with IP67 protection grade.

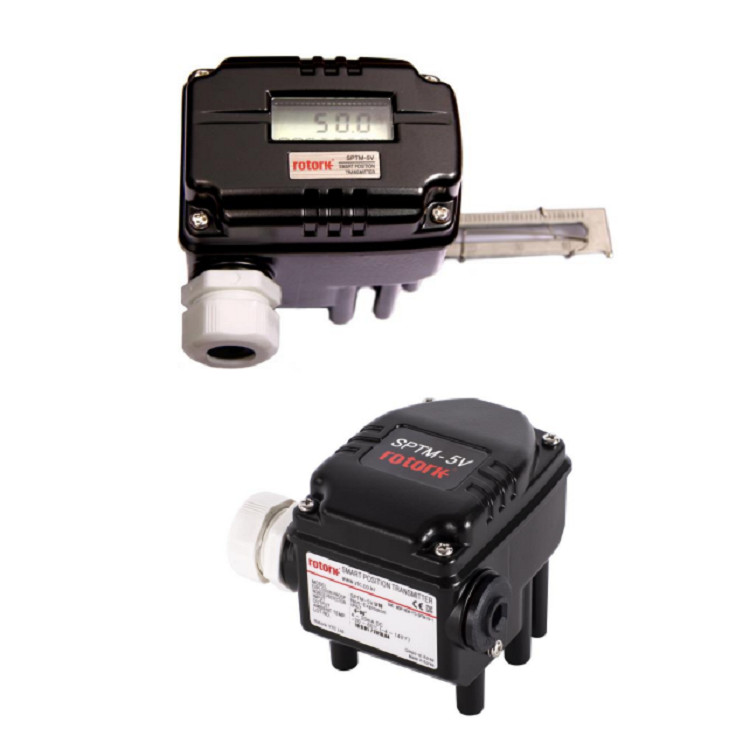

➢ LCD displays current output signal. (Option)
➢ Very easy and simple calibration.
➢ Polyesterpowder coating of SPTM-5V resists the corrosion process.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	1.7MPa(17bar)
outlet Pressure Rating	0.42MPa
Weight	1~3KG
Application	Gas& Oil industry

Special features


Safety When installing a unit, please ensure to read and follow safety instructions.
➢ Be sure to have protective equipment and

comply with safety regulations.
➢ After setting the pressure, secure the nut so that the adjustment bolt does not turn.
➢ Supply

pressure should be used with clean air.
➢ Use within specifications specified in the manual. Exceeding the specification may

result in damage to the product or accident.
➢ If there is any impact on the product, it may cause malfunction or failure, so be

careful during handling, installation and operation.
➢ For maintenance, periodically open the drain plug at the bottom of the

product to discharge the condensate.
➢ Exhaust to the atmosphere are made through a small exhaust hole next to the spring case.
➢Install the product with the adjustment bolt facing up. Otherwise, the life cycle of the product may be shortened or moisture and

foreign substance may enter into the vent hole, leading to damaging internal parts.


Packing & Delivery

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Our Company

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
