Lock Up Electric Control Valve Steel Positioner YT-400S

Lock Up Electric Control Valve Steel Positioner YT-400S

Lock Control Globe Valve

Rotary Airlock Valve Positioner

YT-400S Air Lock Valve

Brand Name:

Rotork YTC

Model Number:

YT-400S YT-400D

Contact Us

Request A Quote
Product Details
Product Name:
Rotork YTC Lock Up Valve YT-400S YT-400D Lock Valve For Valve
Brand:
ROTORK YTC
Model:
YT-400
Matrial:
Alloy/Steel
Valve Style:
Positioner
Impedance:
Max.500 20mA DC
Supply Pressure:
0.14~0.7Mpa
Linearity:
±0.5% F.S
Hysteresis:
±0.5% F.S
Sensitivity:
±0.2% F.S
Reapeatability:
±0.3% F.S
Product Description
Product Description

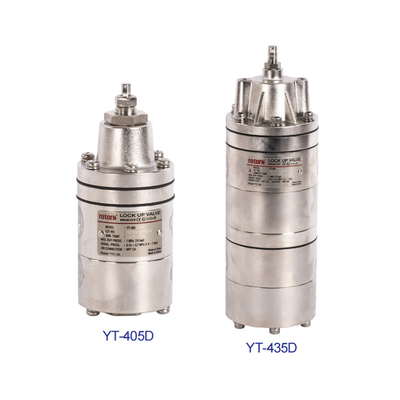

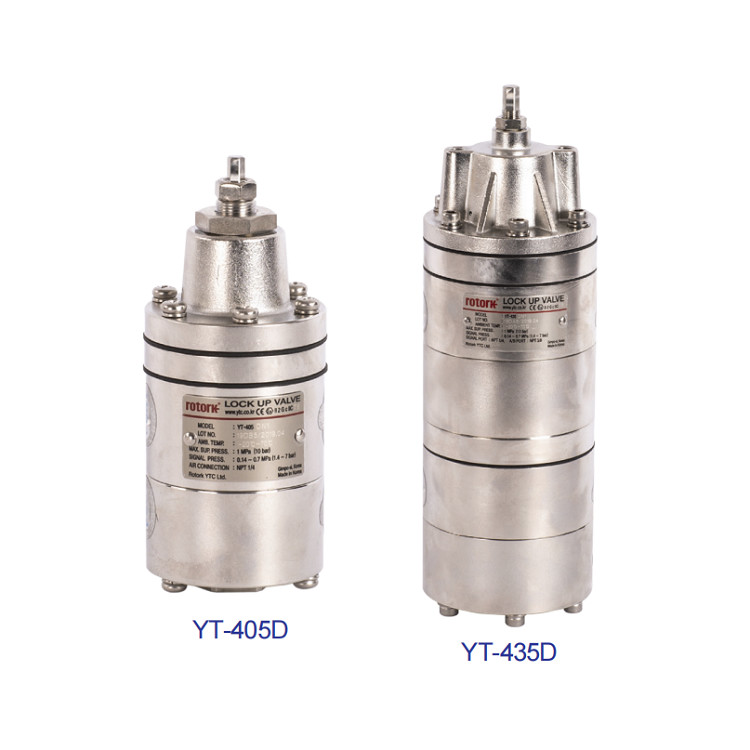

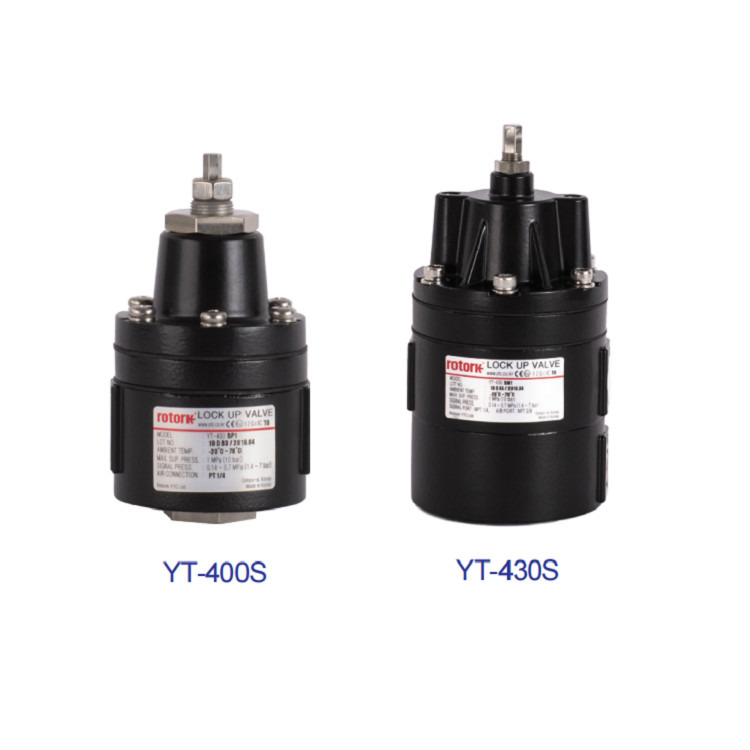

Lock Up Valve, YT-400 sense the main supply pressure and shuts down the air flow when the pressure is lower than setting.
* Compact size – NO bracket is required
* Detects small variation of the pressure – below 0.01MPa.

YT-400

Lock Up Valve 1/4″


Lock Up Electric Control Valve Steel Positioner YT-400S 0







Specification


Series

EP800

Model

EPA801

Input signal

4~20mA analog signal or digit signal

Input impedance

250 ± 5% at 25℃

Characteristic

Linear

Brand Name

Rotork YTC

Pilot valve

avaNon-bleeding type/Single acting and double acting types are available

Air supply

Output air pressure 50%
Single acting type : 5Nl / min at 140 Kpa air supply
Double acting type : 15Nl / min at 400 Kpa air supply

Max. capacity

Capacity when output is atmospheric venting.
Single acting type : 175Nl / min at 140 Kpa air supply
Double acting type :400Nl / min at 400 Kpa air supply

Performance

For single acting actuator
Linearity 1.0% of Full stroke
Hysteresis 0.5% of Full stroke
Response level 0.1% of Full stroke
Repeatability 0.2% of Full stroke
Supply pressure effect 0.1%/10 Kpa

For double acting actuator
Linearity 1.5% of Full stroke
Hysteresis 0.8% of Full stroke
Response level 0.2% of Full stroke
Repeatability 0.3% of Full stroke
Supply pressure effect 0.4%/50 Kpa
KOSO
The above represents the performance of the positioner on an actuator without a valve.For the performance of the
complete unit with a valve and an actuator, see KOSO STANDARD SPECIFICATION.

Air connection

Rc 1/4

Wiring connection

G 1/2

Ambient temperature

Standard type 20 80
High temperature service (option) 0 100
Low temperature service (option) 50 60

Ambient humidity range

10 90% RH

Enclosure

Weather proof type ( IP65 )
Explosion proof type ( Ex md CT6 )
01171
Intrinsically safe explosion
proof type ( Exia CT6 )
01172

Standard anicillary

Auto-Manual change


FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.
