Name: Smart Pneumatic Control Valve Positioner AVP300 With Fisher Valve
Brand: Azbil
SKU: AVP300/301/302
Rating: 5 (182 reviews)

Home > products > Control Valve Positioner >

Smart Pneumatic Control Valve Positioner AVP300 With Fisher Valve

Pneumatic Smart Positioner

Fisher Valve Pneumatic Positioners

AVP300 Digital Valve Positioner

Brand Name:

Azbil

Model Number:

AVP300/301/302

Request A Quote

Smart Pneumatic Control Valve Positioner AVP300 With Fisher Valve

Product Details

Product Name:

Azbil Smart Pneumatic Positioners AVP300/301/302 Positioner

Brand:

Azbil

Model:

AVP300/301/302

Matrial:

Alloy/Steel

Valve Style:

Positioner

Impedance:

Max.500 20mA DC

Supply Pressure:

0.14~0.7Mpa

Linearity:

±0.5% F.S

Hysteresis:

±0.5% F.S

Sensitivity:

±0.2% F.S

Reapeatability:

±0.3% F.S

Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve

Get Best Price

Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System

Get Best Price

Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock

Get Best Price

Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

A-zbil smart pneumatic positioners AVP300301302 positioner with fisher valve


HART/Fieldbus Solutions offered by Azbil Corporation provide field devices compliant with HART communication and FOUNDATION

Fieldbus protocol, systems and sophisticated services, and contribute to safe plant operation and productivity.

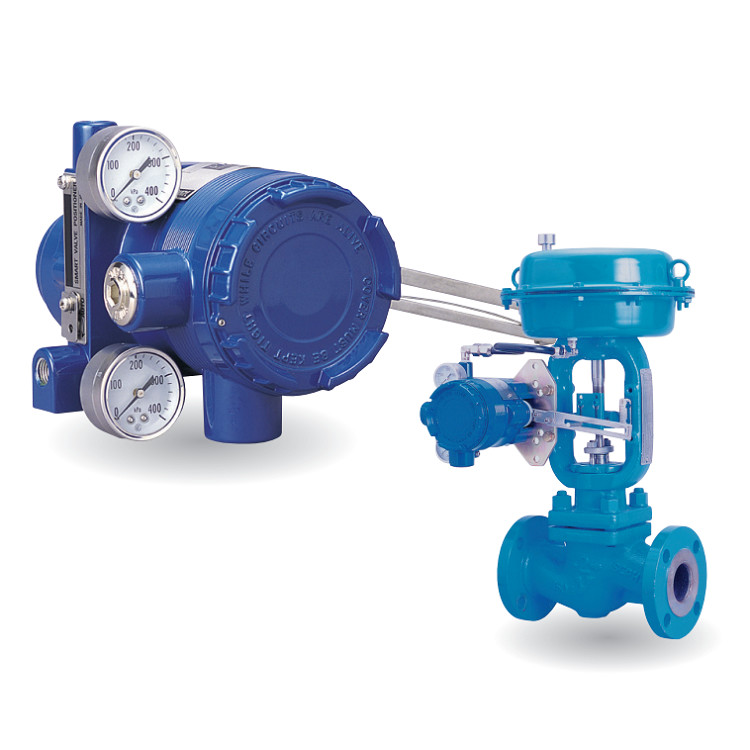

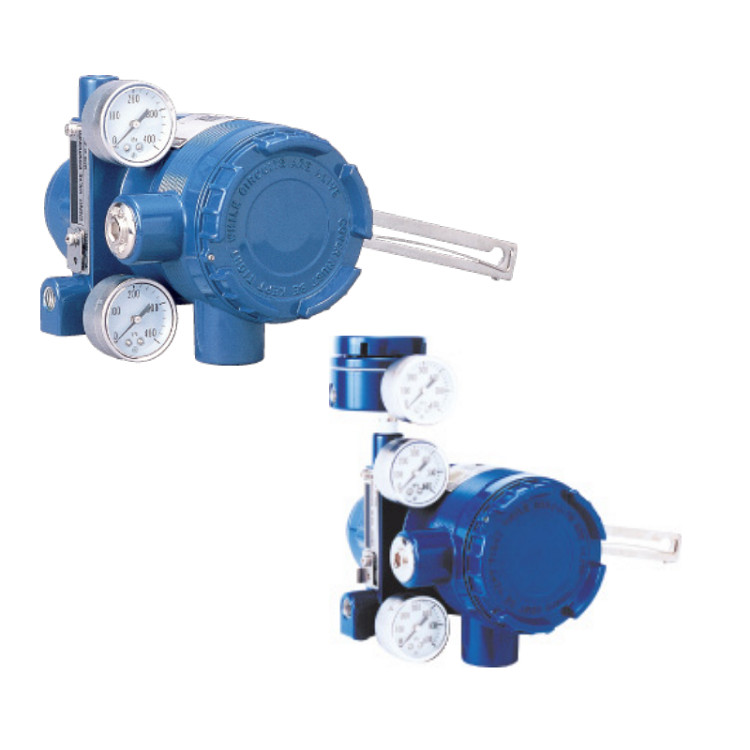

Smart Valve Positioner 300 Series Models AVP300/AVP301/AVP302 are current-pneumatic smart valve positioners. The 300 Series receives a DC current signal from control devices and controls pneumatic valves. In addition to this basic function, the 300 Series has communication capabili- ties, automatic configuration program, and self diagnostics functions that will greatly increase productivity and the efficiency of plant operation. The model AVP301 has a valve travel transmitter function which transmits a 4-20 mA DC signal. The model AVP302 has a HART communication protocol.

FEATURES 1.Easy to use ·Auto setup The auto-setup function is a fully-automatic configura-tion program which specifies the actuator and adjusts the zero and span of the valve. The program can be turned on simply from an external switch so that adjustments to the valve can be performed quickly and safely in hazardous areas. 2.Single model for multiple specifications The 300 Series' settings can be changed without replacing any parts.A single model can be modified to suit any application.
·Input range: Configurable to any required range for split range ·Flow characteristic: Linear, EQ%, Quick opening or custom user characteris- tics ·Actuator type: Single or double acting actuator (optional revprsing relay required) 3.Valve diagnostic (Model AVP302 only) Following parameters can be monitored by HART com- municator or Control Valve Maintenance Support System “Valstaff". ·Stick Slip ·Total Stroke ·Travel Histogram ·Cydle Count ·Shut-Off Count ·Max.Travel Speed
4.Positive seating The positive seating function completely shuts off the valve if the input signal becomes lower than previously set. This in turn enhances the full shut-off capabilities of thevalves. 5.Easy maintenance The electrical circuit section and air circuit section are completely separate, making the maintenance of the air circuit section at the work site easy. An Auto/Manual switch is standard equipment, so it is also easy to check the operation ofthe valve. (However, it is not available for the double-acting actuator.) 6.Travel transmission The model AVP301 transmits a 4-20 mA signal propor-tional to the valve travel. The valve travel can be monitored from the control room. 7. Can be mounted on either a single or double-acting actuator.On a double-acting actuator, a reversing relay is added at the output air pressure connector.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	1.7MPa(17bar)
outlet Pressure Rating	0.42MPa
Weight	1~3KG
Application	Gas& Oil industry

Special features


Safety When installing a unit, please ensure to read and follow safety instructions.
➢ Be sure to have protective equipment and

comply with safety regulations.
➢ After setting the pressure, secure the nut so that the adjustment bolt does not turn.
➢ Supply

pressure should be used with clean air.
➢ Use within specifications specified in the manual. Exceeding the specification may

result in damage to the product or accident.
➢ If there is any impact on the product, it may cause malfunction or failure, so be

careful during handling, installation and operation.
➢ For maintenance, periodically open the drain plug at the bottom of the

product to discharge the condensate.
➢ Exhaust to the atmosphere are made through a small exhaust hole next to the spring case.
➢Install the product with the adjustment bolt facing up. Otherwise, the life cycle of the product may be shortened or moisture and

foreign substance may enter into the vent hole, leading to damaging internal parts.

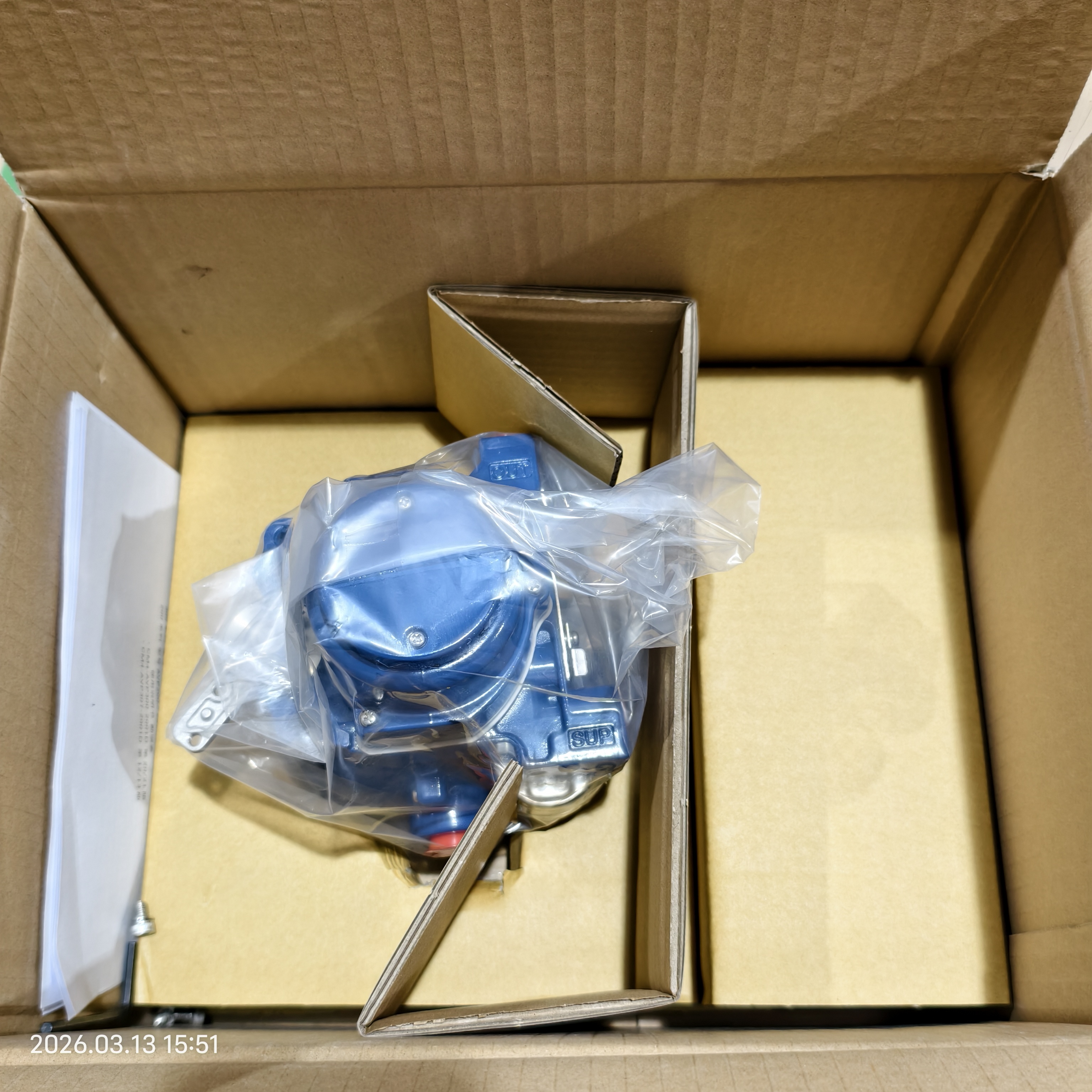

Packing & Delivery

Our Service

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
