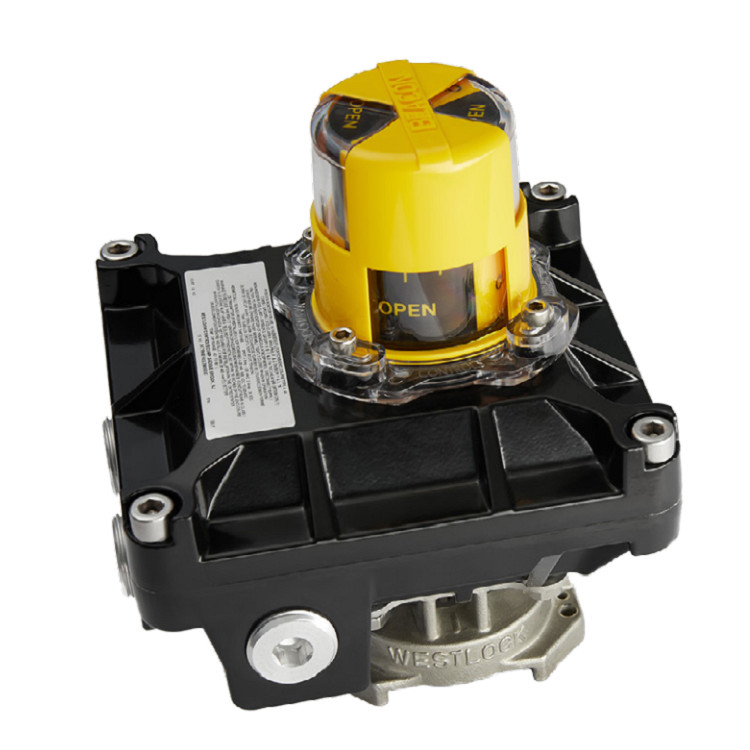

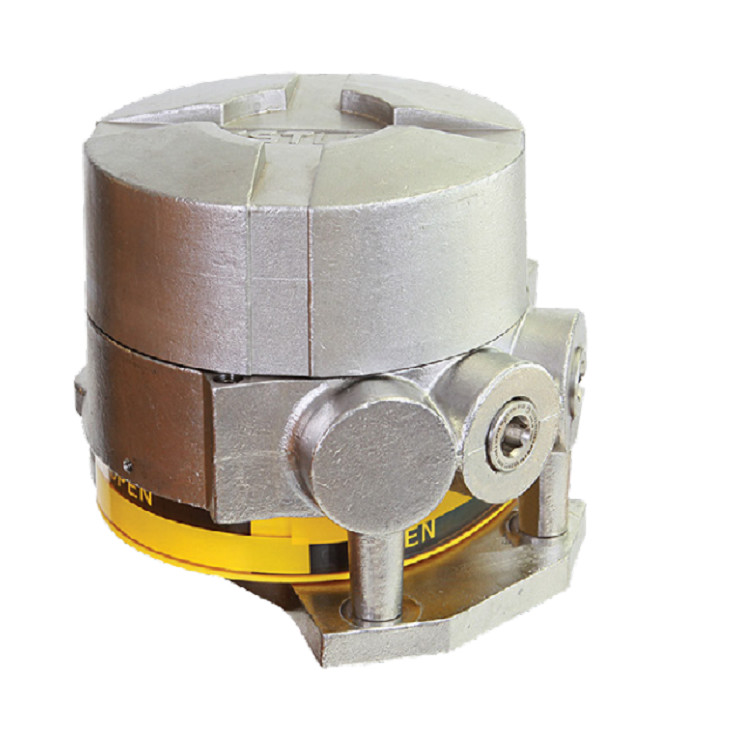

Name: Fisher EZ Valve Limit Switch Westlock Rotary Position Monitors 2200 Series
Brand: Westlock
SKU: 2000 AND 2600
Rating: 5 (120 reviews)

Home > products > Electric Control Valve >

Fisher EZ Valve Limit Switch Westlock Rotary Position Monitors 2200 Series

EZ Valve Limit Switch

Rotary Valve Limit Switch

Valve Position Limit Switch 2200

Brand Name:

Westlock

Model Number:

2000 AND 2600

Request A Quote

Fisher EZ Valve Limit Switch Westlock Rotary Position Monitors 2200 Series

Product Details

Product Name:

Westlock Rotary Position Monitors Limit Switch 2200 Series And 2600 Series For Fisher EZ Valve

Brand:

2000 AND 2600

Model:

Westlock

Matrial:

Alloy/Steel

Valve Style:

Positioner

Impedance:

Max.500 20mA DC

Supply Pressure:

0.14~0.7Mpa

Linearity:

±0.5% F.S

Hysteresis:

±0.5% F.S

Sensitivity:

±0.2% F.S

Reapeatability:

±0.3% F.S

Electric Control Valve With Tissin Smart Valve Positioner TS700 Series Pneumatic Positioners And Asco Solenoid Valve

Get Best Price

Magnetrol 705 706 Heavy Duty Guided Wave Radar Level Transmitter For Water Treatment System

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pneumatic Applications

Get Best Price

High Pressure Resistant 3/2 Running Burkert Brass Solenoid Valve 6524 For Pressure Reducing Ball Valves

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

* Available with SPDT or DPDT switches.

* Standard 6 m lead allows remote mounting if required.

* Cable marked as appliance wiring material UL758.

* Rhodium contact option for use with low power I/O’s for longer contact life.

* Highly resistant to shock and vibration stresses, chemical and environmental exposure.

* Integrated FieldSet trigger system permits easy calibration of position limits.

* Standard 4’ (1.2m) lead accommodates mounting to large valve, with optional 20’ (6m) lead for more remote mounting.

Specification

Series	2000
Model	2600 and 2000
Input signal	4～20mA analog signal or digit signal
Input impedance	250 ± 5% at 25℃
Characteristic	Linear
Brand Name	KOSO
Pilot valve	avaNon-bleeding type/Single acting and double acting types are available
Air supply	Output air pressure 50% Single acting type : 5Nl / min at 140 Kpa air supply Double acting type : 15Nl / min at 400 Kpa air supply
Max. capacity	Capacity when output is atmospheric venting. Single acting type : 175Nl / min at 140 Kpa air supply Double acting type :400Nl / min at 400 Kpa air supply
Performance	* Available with SPDT or DPDT switches. * Standard 6 m lead allows remote mounting if required. * Cable marked as appliance wiring material UL758. * Rhodium contact option for use with low power I/O’s for longer contact life. * Highly resistant to shock and vibration stresses, chemical and environmental exposure. * Integrated FieldSet trigger system permits easy calibration of position limits. * Standard 4’ (1.2m) lead accommodates mounting to large valve, with optional 20’ (6m) lead for more remote mounting
Air connection	Rc 1/4
Wiring connection	G 1/2
Ambient temperature	Standard type 20 80 High temperature service (option) 0 100 Low temperature service (option) 50 60
Ambient humidity range	10 90% RH
Enclosure	Weather proof type ( IP65 ) Explosion proof type ( Ex md CT6 ) 01171 Intrinsically safe explosion proof type ( Exia CT6 ) 01172
Standard anicillary	Auto-Manual change

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made

optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For

Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For

Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE

CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.

Company Profile

00:00

02:00

Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises. With our dedicated service, our customers' work is made easy and efficient. As a comprehensive supplier of electromechanical products, Xiangjing (Shanghai) Technology Co., Ltd. adheres to the modern market concept of customer-centered, relying on the rich product resources of the Doctoral Group and the industry e-commerce platform and the centralized professional service team to pass professional orders. Procurement, specialized inventory and distribution management and specialized technical support to achieve accurate and timely delivery services, localized services and quick and timely response, maximizing customer value, effectively shortening your spare parts supply cycle and effectively reducing inventory Effectively improve the efficiency of your work, thus effectively improving the overall competitiveness of the company.

FAQ

1. who are we?

We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Valve,Valve Accessories

4. why should you buy from us not from other suppliers?

Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conserva

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;

Language Spoken:English,Chinese

Product Description

* Available with SPDT or DPDT switches.

* Standard 6 m lead allows remote mounting if required.

* Cable marked as appliance wiring material UL758.

* Rhodium contact option for use with low power I/O’s for longer contact life.

* Highly resistant to shock and vibration stresses, chemical and environmental exposure.

* Integrated FieldSet trigger system permits easy calibration of position limits.

* Standard 4’ (1.2m) lead accommodates mounting to large valve, with optional 20’ (6m) lead for more remote mounting.

Specification

Series	2000
Model	2600 and 2000
Input signal	4～20mA analog signal or digit signal
Input impedance	250 ± 5% at 25℃
Characteristic	Linear
Brand Name	KOSO
Pilot valve	avaNon-bleeding type/Single acting and double acting types are available
Air supply	Output air pressure 50% Single acting type : 5Nl / min at 140 Kpa air supply Double acting type : 15Nl / min at 400 Kpa air supply
Max. capacity	Capacity when output is atmospheric venting. Single acting type : 175Nl / min at 140 Kpa air supply Double acting type :400Nl / min at 400 Kpa air supply
Performance	* Available with SPDT or DPDT switches. * Standard 6 m lead allows remote mounting if required. * Cable marked as appliance wiring material UL758. * Rhodium contact option for use with low power I/O’s for longer contact life. * Highly resistant to shock and vibration stresses, chemical and environmental exposure. * Integrated FieldSet trigger system permits easy calibration of position limits. * Standard 4’ (1.2m) lead accommodates mounting to large valve, with optional 20’ (6m) lead for more remote mounting
Air connection	Rc 1/4
Wiring connection	G 1/2
Ambient temperature	Standard type 20 80 High temperature service (option) 0 100 Low temperature service (option) 50 60
Ambient humidity range	10 90% RH
Enclosure	Weather proof type ( IP65 ) Explosion proof type ( Ex md CT6 ) 01171 Intrinsically safe explosion proof type ( Exia CT6 ) 01172
Standard anicillary	Auto-Manual change

FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made

optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For

Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For

Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE

CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.

Company Profile

00:00

02:00

Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises. With our dedicated service, our customers' work is made easy and efficient. As a comprehensive supplier of electromechanical products, Xiangjing (Shanghai) Technology Co., Ltd. adheres to the modern market concept of customer-centered, relying on the rich product resources of the Doctoral Group and the industry e-commerce platform and the centralized professional service team to pass professional orders. Procurement, specialized inventory and distribution management and specialized technical support to achieve accurate and timely delivery services, localized services and quick and timely response, maximizing customer value, effectively shortening your spare parts supply cycle and effectively reducing inventory Effectively improve the efficiency of your work, thus effectively improving the overall competitiveness of the company.

FAQ

1. who are we?

We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Valve,Valve Accessories

4. why should you buy from us not from other suppliers?

Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conserva

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,EUR;

Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;

Language Spoken:English,Chinese
