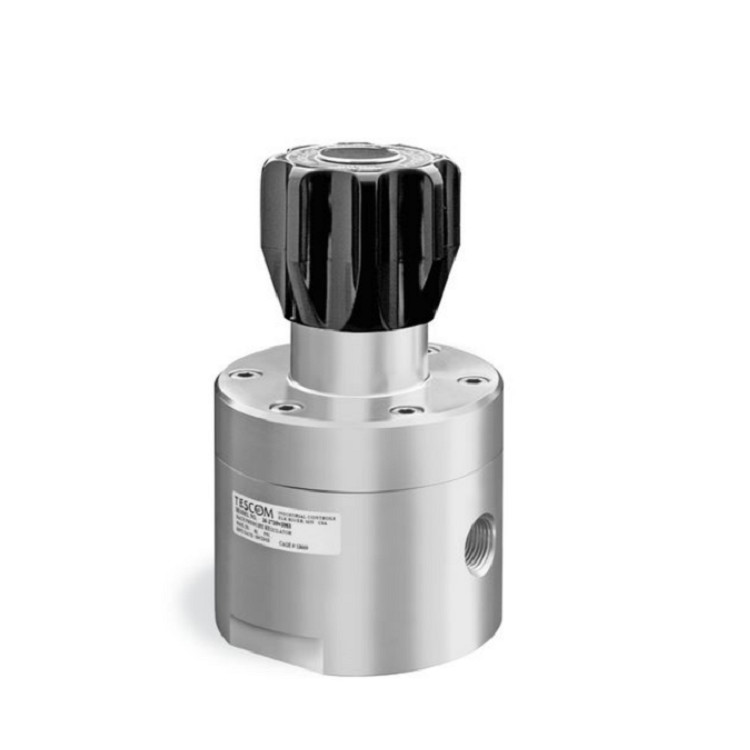

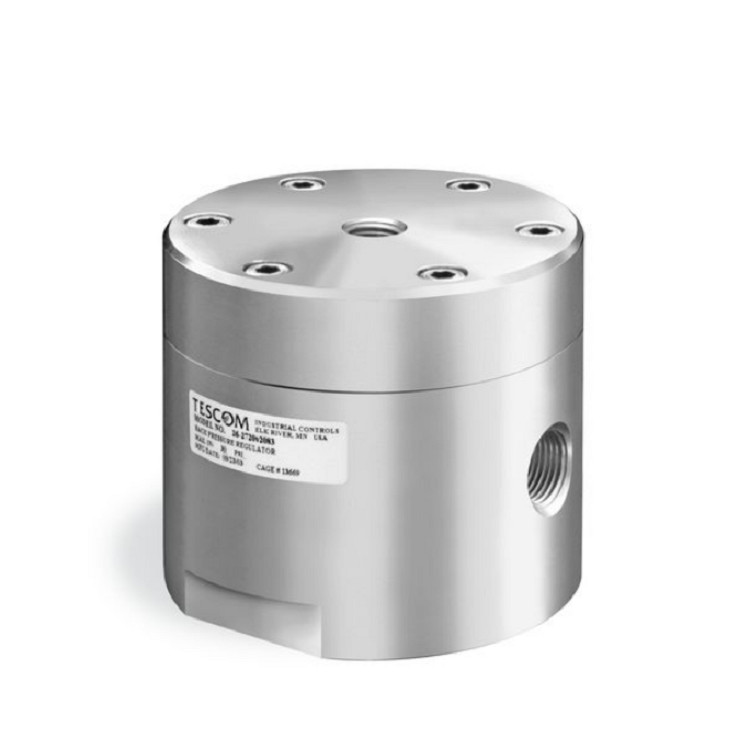

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure

EMERSON Low Pressure Backpressure Regulator

Brand Name:

TESCOM

Model Number:

26-2700

Contact Us

Request A Quote
EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure
Product Details
Product Name:
EMERSON Tescom 26-2700 Series Backpressure Control Regulator
Brand:
TESCOM
Model:
26-2700
Seat, Main Valve:
CTFE, Vespel SP21
Bonnet, Back-cap,Body:
Brass, 303 Stainless Steel, 316 Stainless Steel
Remaining Parts:
300 Series Stainless Steel, Nitronic 60
Operating Temperature:
See Part Number Selector
Port Size & Type:
SAE, NPTF 1/2, 3/4
Hysteresis:
±0.5% F.S
Sensitivity:
±0.2% F.S
Reapeatability:
±0.3% F.S
RELATED PRODUCTS
Good price Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve online

Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve

Get Best Price
Good price Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System online

Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System

Get Best Price
Good price Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock online

Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock

Get Best Price
Good price Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7 online

Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7

Get Best Price
Contact Us
86-151-2102-3088
edward.zhao@gongboshi.com
Contact Now
Product Description
Product Description

EMERSON Tescom 26-2700 Series Backpressure Control Regulator



26-2700 Series is a high flow, low pressure backpressure regulator with spring, dome and air loading options.Ideal for use in pump and compressor control and process pressure control. Suitable for high flow, low pressure chemical injection.
Maximum Inlet Pressures Air Loaded: 450 psig / 31.0 bar
Dome Loaded: 1000 psig / 69.0 bar
Spring Loaded: 0 -
30, 80, 185, 300, 375 psig / 2.1, 5.5, 12.8, 20.7, 25.9 bar

Seat, Main Valve CTFE, Vespel® SP21

Body, Bonnet, Back-cap Brass, 303 Stainless Steel, 316 Stainless Steel

O-Rings Buna-N, Ethylene Propylene., Viton®

Diaphragm Gylon®

Remaining Parts 300 Series Stainless Steel, Nitronic 60

Operating Temperature See Part Number Selector

Port Size & Type SAE, NPTF 1/2, 3/4

Flow CapacityCv = 2.0

Load TypeSpring, Air, Dome

Weight approximate:10.5 lbs / 4.8 kg

Additional Information For custom modifications or a complete system solution, please contact your local sales office.

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 0
Specifications

Pressure Range

5-100 psi (35-700 kPa), (0.35-7 bar)

Certifications

PED, CUTR, ATEX

Inlet Pressure Rating

210 psi (1.5 MPa, 15 bar) maximum

Operating Temperature

Standard Temperature

Connection

SOLENOID

Application

Gas& Oil industry



Detailed Images

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 1

Packing & Delivery


EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 2

Our Service


EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 3

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.


Our Company


EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 4
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.


EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 5

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 6

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 7

EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 8

FAQ


EMERSON Tescom 26-2700 Series Backpressure Control Regulator Low Pressure 9
