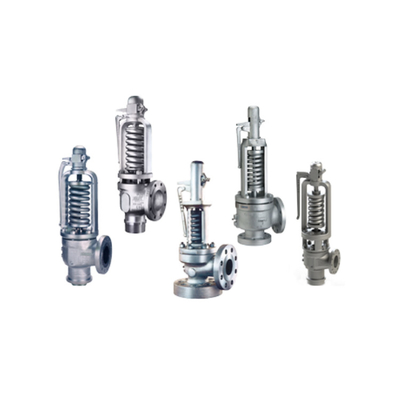

EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve

EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve

Aluminum Direct Spring Safety Valves

ASME Certified Spring Safety Valve

Brand Name:

CROSBY

Model Number:

H-SERIES

Contact Us

Request A Quote
EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve
Product Details
Product Name:
EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve
Brand:
EMERSON CROSBY
Model:
H-SERIES
Matrial:
Aluminum /stainless Steel
Supply Voltage:
9 ~ 28 V DC
Conduit Entry:
G 1/2
Time And Temperature Drift:
< +1.0%
Housing Material:
Housing Material
Degree Of Protection:
IP20 (EN60529
Fusing (input:
Internally Fused
End Connection Styles:
NPT, SWE, And Welded And Integral CL150 RF
RELATED PRODUCTS
Good price Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe online

Blue Spirax Sarco Floating Ball Steam Drain Valve Or Check Valve For Industrial Pipe

Get Best Price
Good price Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor online

Fisher 1098-EGR Gas Pressure Regulators Digital Pressure Reducing Valve For Packaging Compressor

Get Best Price
Good price Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package online

Fuel Gas Pressure Regulator Valve FISHER 95L For Pressure Regulating With Skid Mount Package

Get Best Price
Good price Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device online

Fisher 299H Gas Reducing Pressure Regulator For Desuperheating And Reducing Device

Get Best Price
Contact Us
86-151-2102-3088
edward.zhao@gongboshi.com
Contact Now
Product Description
Product Description

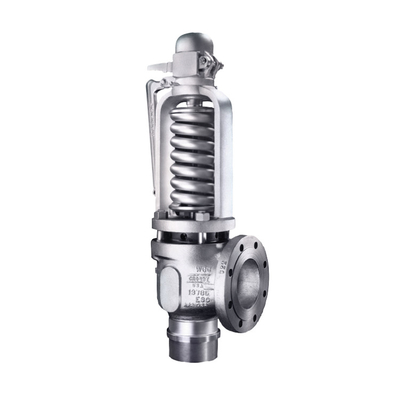

EMERSON CROSBY H-SERIES Spring safety valve pressure relief valve



Direct spring safety valves that provide comprehensive overpressure protection for steam safety applications

FEATURES
• ASME/NB certified capacities for steam.
• Set and tested on steam.
• Full nozzle flanged option.
• Restricted lift for customized capacity.
• Long service life. • Low maintenance.
• Two ring set pressure and blowdown control.
• ISOFLEX seat tightness up to 93%. For seat tightness greater than 93% consult factory

• Extends Up-time - ISOFLEX® seat tightness to 93% of set pressure ensures maximum generating times, extending maintenanceintervals. For seat tightness greater than 93% consult factory.
• Reduces Maintenance Costs - Exceptional seat tightness minimizesmaintenance resources and repair times and reduces spare parts purchase and inventory costs.
• Easily Adjustable for ASME Boiler and Pressure Vessel Code Section I (V Designator) Requirements
- Advanced trim design with backpressure assist closing feature and patented eductor control eliminates complex adjustments to obtain ASME Boiler and Pressure Vessel Code Section I (V Designator)
required blowdown. • Minimizes Installation Costs - Weld end valves shipped as two assemblies to minimize installation time and labor and no special vent discharge piping is required, saving costs.
• Installation and Maintenance Efficiencies - Packaging
designed for quick and easy installation. - Ease of adjustment and maintenance with fewer parts. - Two-ring blowdown control iseasy to set and adjustable in the field


Specifications


Pressure Range

5-100 psi (35-700 kPa), (0.35-7 bar)

Certifications

PED, CUTR, ATEX

Inlet Pressure Rating

1.7MPa(17bar)

outlet Pressure Rating

0.42MPa

Weight

1~3KG

Application

Gas& Oil industry


EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 0







Special features


TECHNICAL DATA Sizes: 2½” x 6" to 4" x 8" (DN 65 x DN 150 to DN 100 x DN 200) Orifices: 1.840 to 7.070 in2 (11.87 to 45.61 cm2 )
Connections: ANSI flanged or butt weld inlet and ANSI flanged outlet Maximum temperature: Up to 750°F (399°C) Maximum set
pressure: Up to 3060 psig (211 barg) Code: ASME Boiler and Pressure Vessel Code Section I (V Designator)




Packing & Delivery


EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 1

Our Service


EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 2

1.Swift delivery
For common parts, we can deliver the goods within 3 days

2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.


Our Company


EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 3
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.
Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.


EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 4

EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 5

EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 6

EMERSON CROSBY H-SERIES Spring Safety Valve Pressure Relief Valve 7
