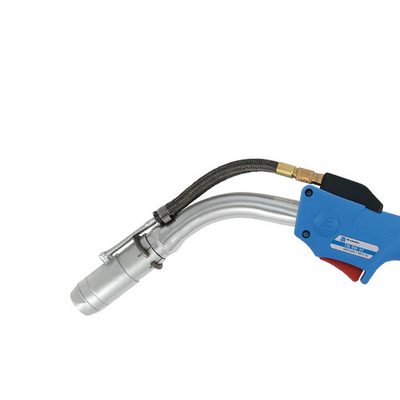

TBI MIG / MAG Welding Gas cooled Torches and Water cooled torches with ABB welding robot arm
| Specification | Value |
|---|---|
| Torch Angle | 45 deg. |
| Special Order Torch Angle | 31 deg. |
| Max Operating Current | 350A (CO2 / MAG) |
| Rated Duty Cycle | 80% (CO2) / 60% (MAG) |
| Applicable Wire Diameter | 0.030" (0.8mm), 0.035" (0.9mm), 0.040" (1.0mm), 0.045" (1.2mm) [STANDARD], 0.052" (1.4mm), 1/16" (1.6mm) |
| Cooling Method | Air cooling |
| Shock Sensor | SSV (V6, V6L, V8, V8L) SSB (B4, B4L, B6, B6L) |

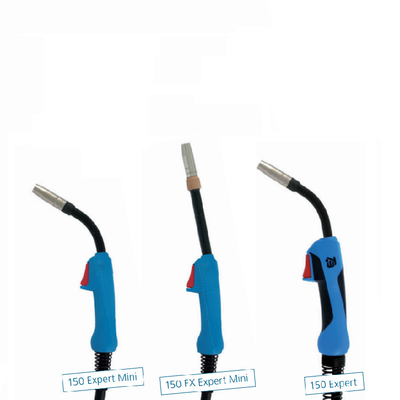

The TBi Expert handle has been designed with perfect ergonomics and appealing looks. The soft rubber areas directly integrated in the handle assure comfortable and slip-proof handling. The balance of the torches has been optimized for ergonomical work.
Modern 2-component handle
Extremely slim design for effortless use
Ball joint with defined panning and rotation range prevents twisted hoses in the cable assembly
Effort-saving weight distribution
Gripping area is more distanced from weld pool than with our other handles, less heat input on the hand
