Name: IMI STI SA/CL Smart Electro Pneumatic Positioners For Fisher EZ ET Valve Body
Brand: IMI STI
SKU: SA/CL
Rating: 4.9 (181 reviews)

Home > products > Control Valve Positioner >

IMI STI SA/CL Smart Electro Pneumatic Positioners For Fisher EZ ET Valve Body

Electro Pneumatic Positioners

Smart Electro Positioner

Valve Body Pneumatic Positioners

Brand Name:

IMI STI

Model Number:

SA/CL

Request A Quote

Product Details

Product Name:

IMI STI SA/CL Smart Positioner Pneumatic And Electro-pneumatic Positioners For Fisher EZ ET Valve Body

Model:

SA/CL

Temperature Of Media:

High Temperature

Pressure:

High Pressure

Operating Temperature:

-20 To 55°C (-4 To 122°F)

Weight:

Approximately 2.9 Lbs (1330 Grams)

Port Size:

Standard

Structure:

Pressure Reducing

Standard Or Nonstandard:

Standard

Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve

Get Best Price

Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System

Get Best Price

Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock

Get Best Price

Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

IMI STI smart positioner pneumatic and electro-pneumatic positioners for fisher EZ ET valve body

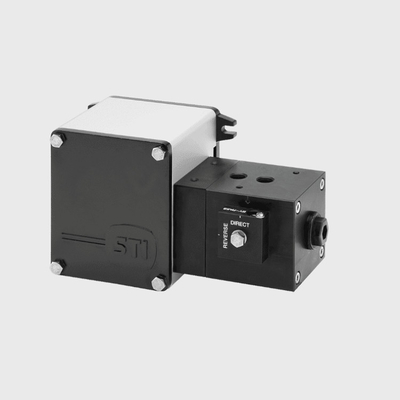

The SA/CL is an analog positioner available in a pneumatic and electro-pneumatic version. The positioner has a heavy duty design making it suitable for use in very harsh conditions. It is used as the control part of the pneumatic valve set in oil and gas,refining, chemical, power, metal production and other fields with automated systems. The UP-2 pneumatic version accepts a 3-15 psi(0.2-1 bar) signal and the electro-pneumatic version a 4-20 mA signal.

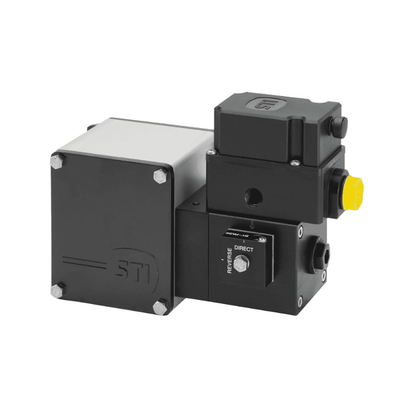

* When using the electro-pneumatic version an I/P converter is installed on the pneumatic positioner which allows an electric signal to pilot the positioner. It is based on the balanced-forces principle; air distribution to actuator chambers is executed by an internal spool.

* The SA/CL is designed to be used for applications on linear actuators with a stroke length of up to 70mm. This positioner is double acting but can also be used as single acting if required.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	210 psi (1.5 MPa, 15 bar) maximum
Operating Temperature	Standard Temperature
Connection	SOLENOID
Application	Gas& Oil industry

Special features


* Metallic case.

* Heavy duty design.

* High reliability.

* Integrated bypass only for ND 1/4” version.

* Action inversion without tubing inversion only for ND 1/4” version.

* Air purge version.

* Sandstorm execution.

* Split range signal.

* Special characterisation/range.

* Suitable for big size/fast stroking actuator.
