Name: Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner
Brand: Azbil
SKU: Azbil Avp300 Avp 301 Avp302
Rating: 4.7 (162 reviews)

Home > products > Control Valve Positioner >

Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner

Avp301 Butterfly Valve With Positioner

Azbil Butterfly Valve With Positioner

Avp300 Azbil Smart Valve Positioner

Brand Name:

Azbil

Model Number:

Azbil Avp300 Avp 301 Avp302

Request A Quote

Avp300 Avp301 Avp302 Azbil Smart Valve Positioner Butterfly Valve With Positioner

Product Details

Application:

General

Material:

Casting

Temperature Of Media:

Medium Temperature

Pressure:

Medium Pressure

Power:

Pneumatic

Media:

Gas

Port Size:

Standard

Structure:

Pressure Reducing

Standard Or Nonstandard:

Standard

Port:

Main Ports In Hongko

Masoneilan SVI3 Valve Positioner For Pneumatic Control Ball Valve Customized ODM With Burkert Valve

Get Best Price

Chinese High Performance Control Valve With 3730-3 Positioner Enhance Your Control Valve System

Get Best Price

Light Yellow Samson Positioner 3730-3 And ASCO Solevoid Valve For Control Ball Valve And Pneumatic Actuator In Stock

Get Best Price

Upgrade Your Control Valve with Our Advanced Control Valve Positioner Spirax Sarco SP7

Get Best Price

86-151-2102-3088

edward.zhao@gongboshi.com

Contact Now

Product Description

Chinese butterfly valve with electropneumatic positionr Azbil Smart Valve Positioners Azbil Avp300 Avp 301 Avp302 and actuator

Smart Valve Positioner 300 Series Models AVP300/AVP301/AVP302 are current-pneumatic smart valve positioners.The 300 Series receives a DC current signal from controldevices and controls pneumatic valves. In addition to thisbasic function, the 300 Series has communication capabili-ties, automatic configuration program, and self diagnosticsfunctions that will greatly increase productivity and theefficiency of plant operation.The model AVP301 has a valve travel transmitter functionwhich transmits a 4-20 mA DC signal. The model AVP302has a HART communication protocol.


Improves process control High accuracy and high resistance to vibrationimprove control valve performance, allowing tighterprocess control and reduction in product variability.lmproves productivity Easy-to-use fully automatic set-up and calibration,with diagnostics, makes these tasks easier and ableto be completed in less time.
Reduces spares Single universal model applies to most valveapplications.

Specifications

Reference variable	4 to 20 mA
Trave	5 to 50 mm
Opening angles	24 to 100°
Operating Temperature	Standard Temperature
Explosion protection	Intrinsic safety: ATEX, STCC,
Application	Gas& Oil industry

Special features


1. Easy to use Auto setup The auto-setup function is a fully-automatic configura-tion program which specifies the actuator and adjusts thezero and span of the valve. The program can be turned onsimply from an external switch so that adjustments to thevalve can be performed quickly and safely in hazardousareas2. Single model for multiple specificationsThe 300 Series' settings can be changed without replacingany parts. A single model can be modified to suit any application. Input range:Configurable to any required range for split rangeFlow characteristic: Linear, EO%%, Quick opening or custom user characteris-tics Actuator type:Single or double acting actuator (optional reversing relayrequired)
3. Valve diagnostic (Model AVP302 only)
Following parameters can be monitored by HART com-municator or Control Valve Maintenance Support SystemValstaff Stick Slip Total Stroke .Travel Histogram Cycle Count Shut-Off Count Travel Speed

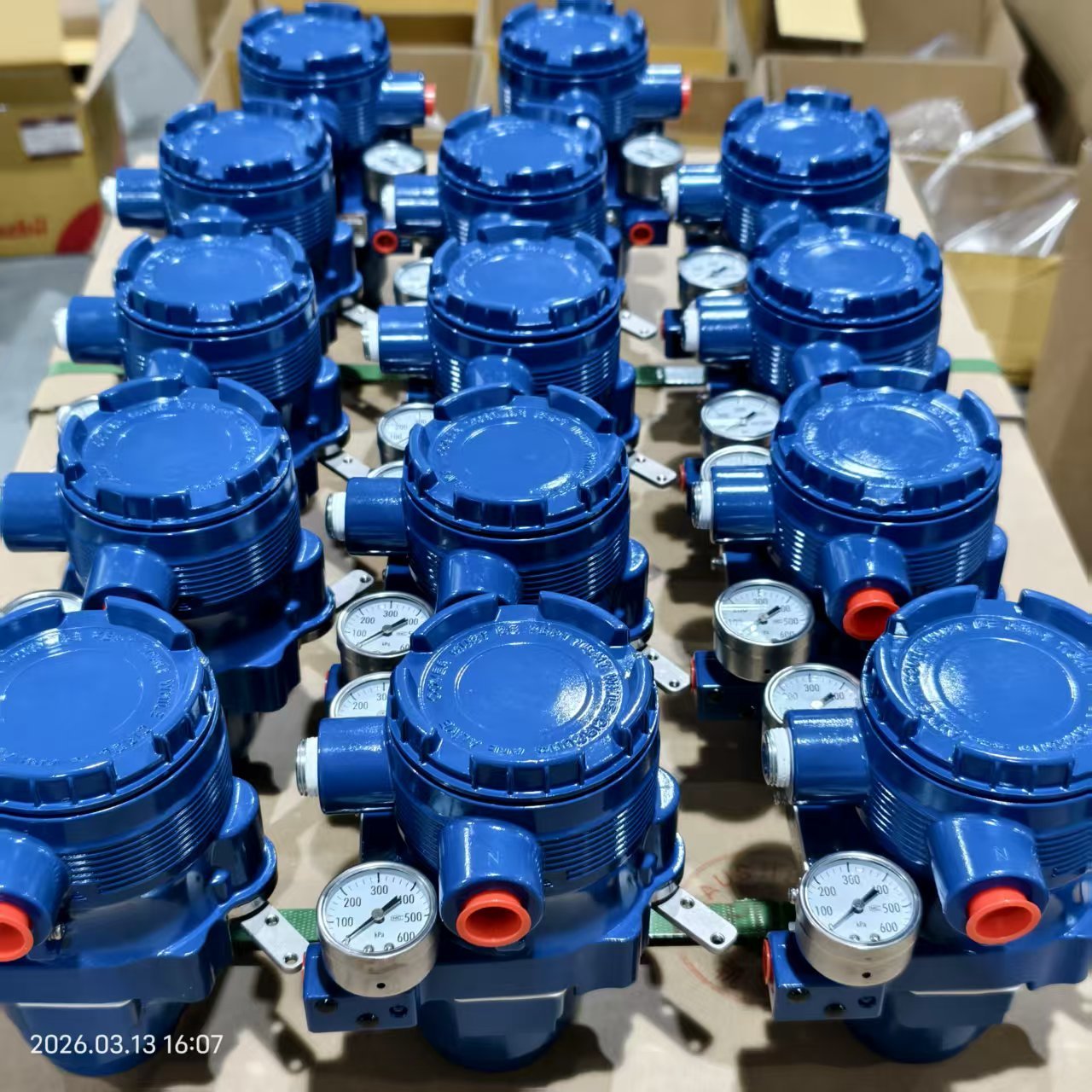

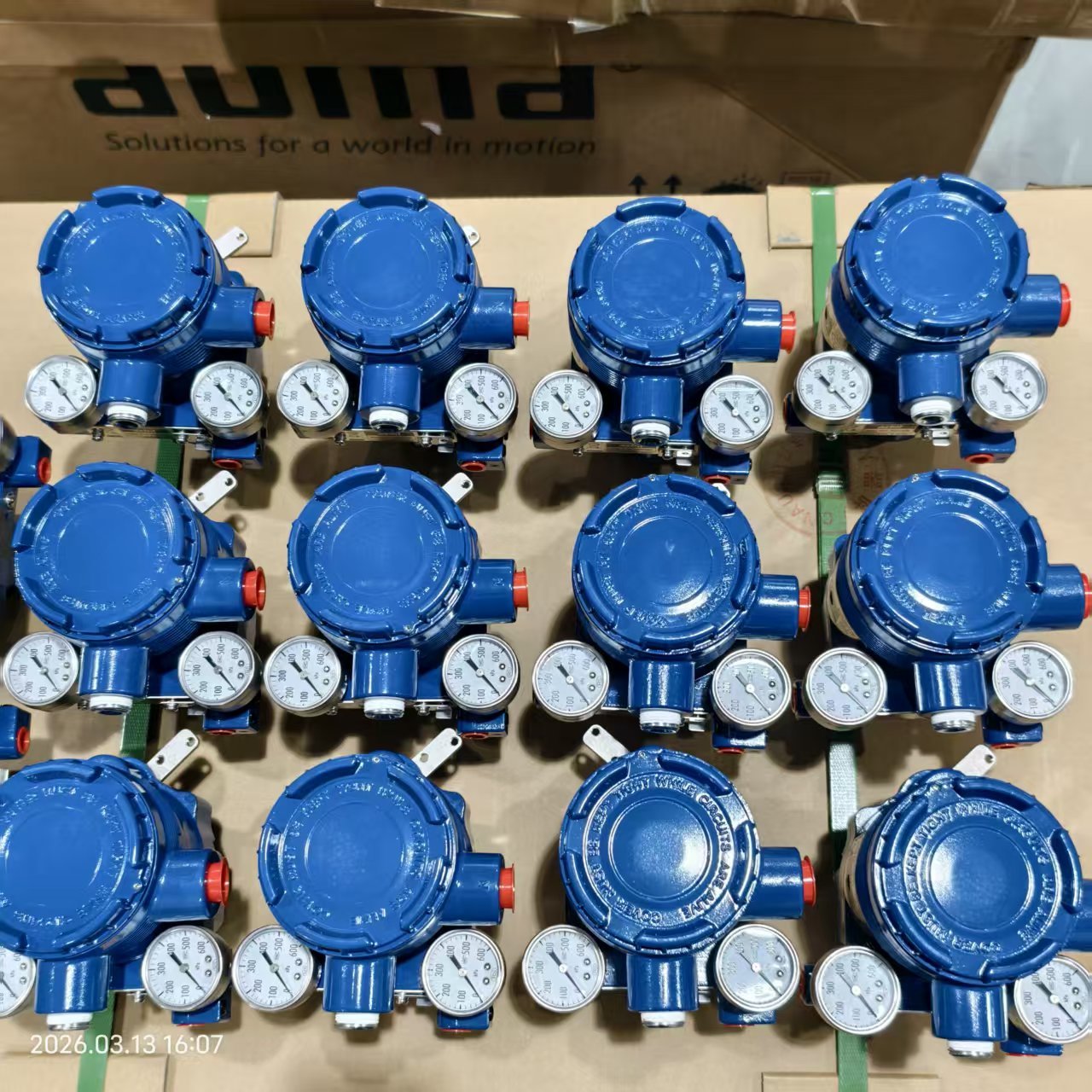

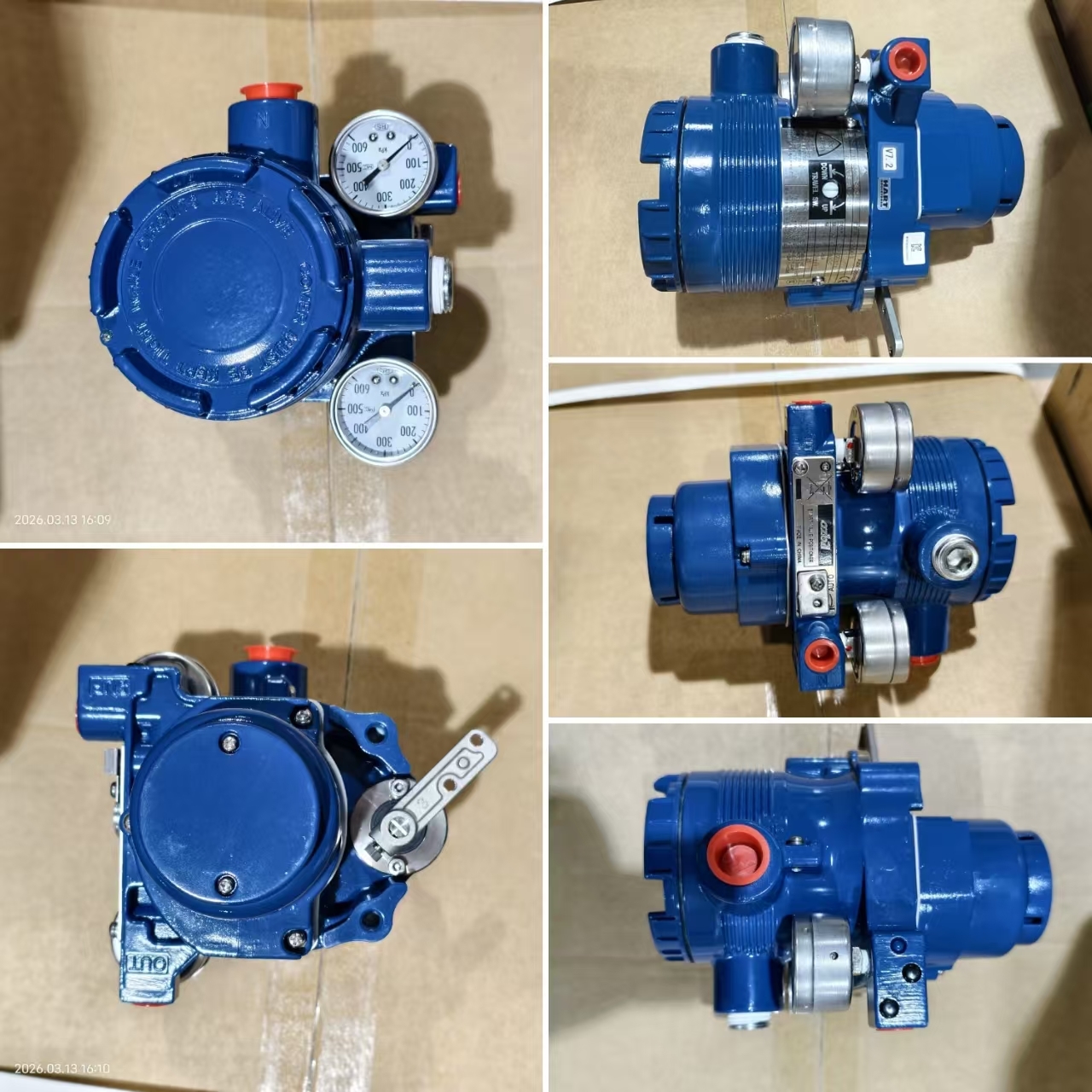

Detailed Images

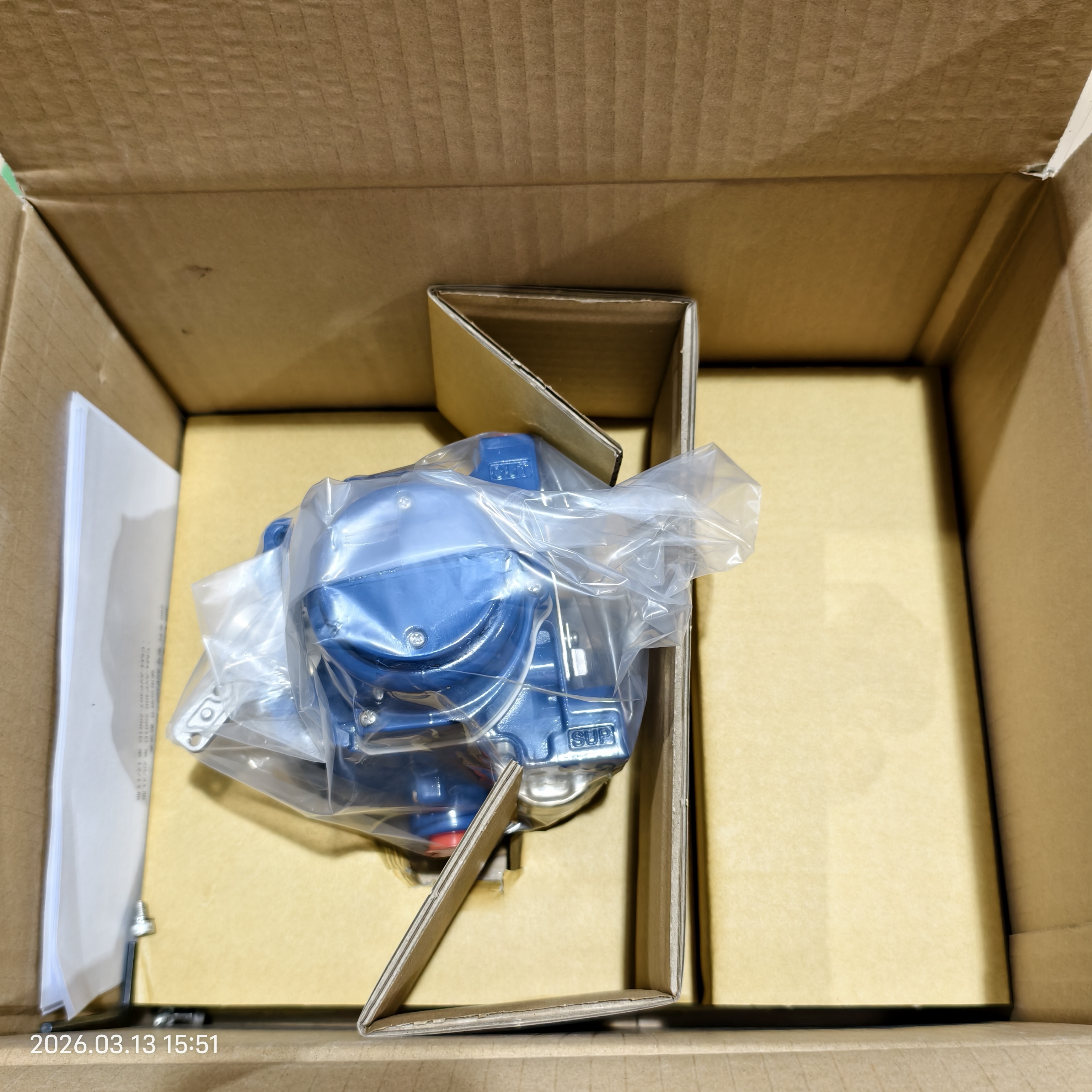

Packing & Delivery

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Our Company

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
