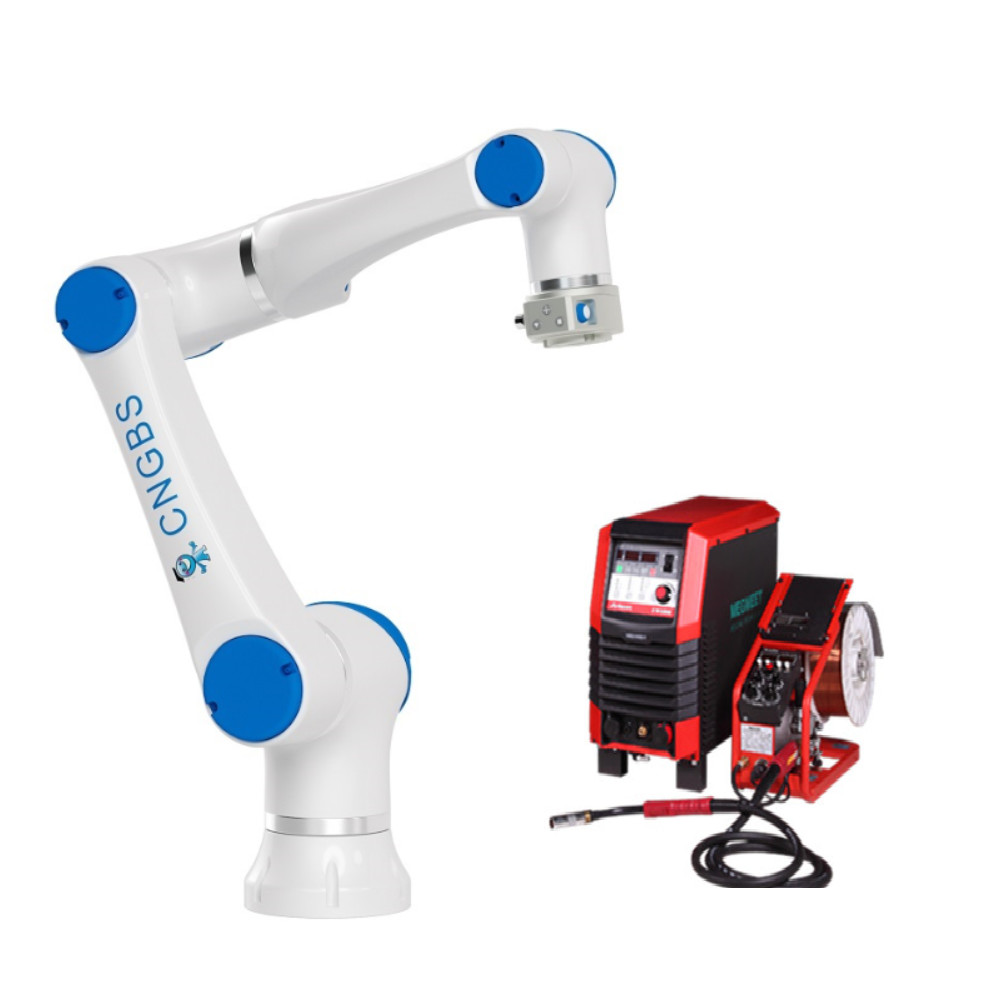

CNGBS 3kg Payload Welding Collaborative Robot Arm With China Megmeet

CNGBS 3kg Payload Welding Collaborative Robot Arm With China Megmeet

180W Collaborative Robot Arm

Welding Cobot Robot Arm

590mm Chinese Robot Arm

Place of Origin:

China

Brand Name:

CNGBS

Model Number:

G05-L

Contact Us

Request A Quote
Product Details
Features:
Safety Collaborative
Application:
Welding,pick And Place
Power:
180W
Core Components:
PLC, Engine, Bearing
Joint Speed:
J1-J4 180°/s J5-J6 200°/s
Communication:
TCP/IP And Modbus
Production Capacity:
3kg/590mm Arm
Repeatability:
±0.02mm
Joint Range:
±360°
Product Description
  Our collaborative robots are made for a huge range of tasks, in operations of every size. They're easy to set up , program, operate, and scale. Built by industry-leading experts. And serviced by the broadest service network in the industry. Whatever your need , we're here to support every step of your automation journey. Our robots provide the ideal solutions for use in material handling, machine tending, spot welding, arc welding, cutting, assembling, testing, inspecting, dispensing, grinding, and polishing applications.
Specification
item
value
Condition
New
Machine Type
Welding robot
Applicable Industries
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Advertising Company
Showroom Location
Egypt, Canada, United States, Italy, France, Germany, Brazil, Japan, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing
Place of Origin
China
Brand Name
Hansrobot
Warranty
1 Year
Key Selling Points
Sustainable
Weight (KG)
24
Voltage
180W
Current
200-240VAC
Rated Duty Cycle

Dimensions
536*445*319mm
Usage
welding
Reach
950mm
Payload
3.5kg
Weight
24kg
Repeatability
±0.02mm
I/O Source
24V 2A
Working Temperature
0-50℃
Main Material
Aluminum Alloy
Tool Speed
2m/s
Usage
picking and placing, welding
Power Consumption
180W Typical Application
Packing & Delivery
CNGBS 3kg Payload Welding Collaborative Robot Arm With China Megmeet 0
CNGBS 3kg Payload Welding Collaborative Robot Arm With China Megmeet 1
CNGBS 3kg collaborative robot with Onrobot 2FG7 robot gripper and Onrobot MG10 Versatile Electric robot gripper Packed With Fumigated Wooden Boxes
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Robot/Robot Positioner/Robot Track/Robot Gripper/Robot Control System
4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
