Place of Origin:
China
Brand Name:
CNGBS
Model Number:
E10-L
Contact Us
Video

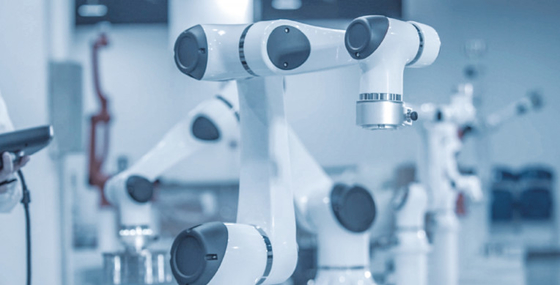

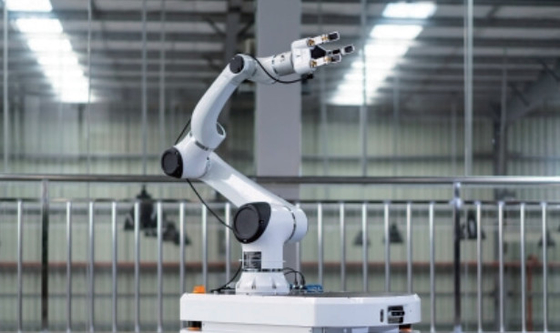

Our collaborative robots are made for a huge range of tasks, in operations of every size. They're easy to set up , program, operate, and scale.
Built by industry-leading experts. And serviced by the broadest service network in the industry. Whatever your need , we're here to support every

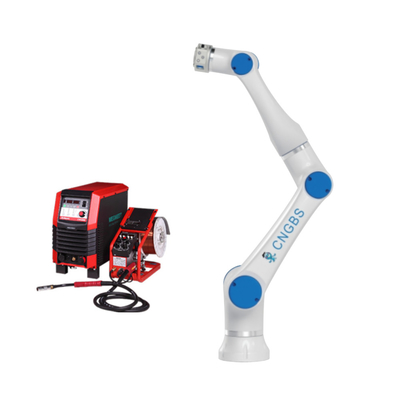

step of your automation journey. Our robots provide the ideal solutions for use in material handling, machine tending, spot welding, arc welding,
cutting, assembling, testing, inspecting, dispensing, grinding, and polishing applications.
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
CNGBS
|
|
Application
|
pick and place
|
|
Features
|
safety collaborative
|
|
Condition
|
New
|
|
Production Capacity
|
3kg/590mm arm
|
|
Warranty
|
1 year
|
|
Dimension(L*W*H)
|
536*445*319mm
|
|
Power
|
100W
|
|
Voltage
|
200-240V AC
|
|
Applicable Industries
|
Hotels, Building Material Shops, Food & Beverage Factory, Farms, Restaurant
|
|
Weight (KG)
|
18
|
|
Showroom Location
|
Egypt, Canada, Turkey, United States, France, Germany, Brazil
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Engine, Bearing
|
|
Joint range
|
±360°
|
|
Joint speed
|
J1-J4 180°/s J5-J6 200°/s
|
|
Repeatability
|
±0.03mm
|
|
Degrees of freedom
|
6
|
|
End I/O port
|
Digital input: 3, digital output: 3, analog input: 2
|
|
Communication
|
TCP/IP and Modbus
|
|
Programming
|
Graphical programming, remote call interface
|
|
Collaborative operation
|
10 advanced security configuration functions
|
|
Main material
|
Aluminum alloy
|
|
Working temperature
|
0-50°C
|
|
Model
|
AUBO i3
|
|
Maximum reach
|
625mm
|
|
Maximum payload
|
3kg
|
|
Weight
|
15.5 kg
|
|
Power
|
DC48V
|
