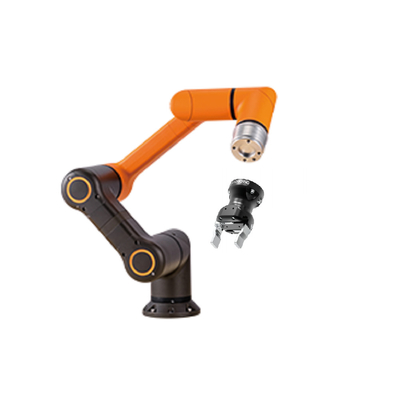

HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly

HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly

Assembly Robot Arm 6 Axis

Assembly Collaborative Robotic Arm

HCR-3A Industrial Robot Arm

Place of Origin:

Korea

Brand Name:

Hanwha

Model Number:

HCR-3A

Contact Us

Request A Quote
Product Details
Weight:
20
Current:
2A
Dimensions:
450*560*223mm
Joint Range:
±360°
Repeatability:
±0.05mm
Working Temperature:
0-50°C
Voltage:
24V
I/O Ports Analog In:
2
Main Material:
Aluminum Alloy
Warranty:
1 Year
Product Description



Our collaborative robots are made for a huge range of tasks, in operations of every size. They're easy to set up , program, operate, and scale.



Built by industry-leading experts. And serviced by the broadest service network in the industry. Whatever your need , we're here to support every



step of your automation journey. Our robots provide the ideal solutions for use in material handling, machine tending, spot welding, arc welding,



cutting, assembling, testing, inspecting, dispensing, grinding, and polishing applications.

Specification
item
value
Place of Origin
Korea
Brand Name
Hanwha
Application
picking and placing, assembly,
Features
safety collaborative
Condition
New
Production Capacity
13kg/630mm arm
Warranty
1 year
Dimension(L*W*H)
450*560*223mm
Voltage
100-240VAC, 50-60Hz (1kW)
Applicable Industries
Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Construction works , Food & Beverage Shops
Weight (KG)
20
Showroom Location
Egypt, Canada, United Kingdom, United States, Germany, Brazil, India, Russia, Japan, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox
Degrees of freedom
6 rotating joints
Weight(excl.cable)
13kg(28.5lb)
Payload
3kg(6.6lb)

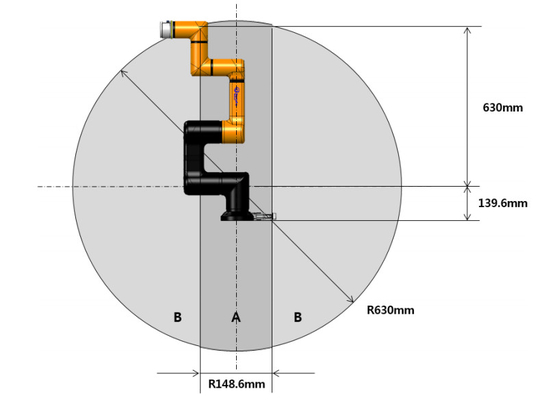

Reach range
630mm(24.8in)
Power Supply
100-240 VAC,50-60Hz (1kW)
I/O Ports Safety
4ch
Controller Box size(WxHxD)
450 mm x560 mm x223 mm
Controller Weight
20kg
Controller Emergency
1ch (dual)
I/O Ports Analog In
2
Packing & Delivery
HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly 0
HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly 1
CNGBS 6 Axis 6kg Payload Cobot Robot Arm with China Welding Robot Machine Megmeet for Welding Robot Packed With Fumigated Wooden Boxes
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/Robot Positioner/Robot Track/Robot Gripper/Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly 3
HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly 4
HCR-3A 6 Axis Cobot Robot Arm With Vision System And RobotiQ Gripper For Assembly 5
Model
AUBO i3
Maximum reach
625mm
Maximum payload
3kg
Weight
15.5 kg
Power
DC48V

Product Features


1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.
