Universal 20kg Payload Cobot UR20 Robot Arm For Automatic Welding Robot

Universal 20kg Payload Cobot UR20 Robot Arm For Automatic Welding Robot

Universal Collaborative Robot Arm

Cobot UR20 Robot Arm

Collaborative Automatic Welding Robot Arm

Place of Origin:

Denmark

Brand Name:

UR Robot

Model Number:

UR20

Contact Us

Request A Quote
Product Details
Power:
350w
Dimension:
460 Mm * 449 Mm * 254 Mm
Weight:
64
Reach Range:
1750 Mm / 68.9 In
Payload:
20 Kg / 44.1 Lbs
Footprint:
245 Mm
Materials:
Aluminium, Plastic, Steel
Voltage:
100V~240v
Robot Mounting:
Any Orientation
Typical TCP Speed:
1 M/s
Product Description

Our collaborative robots are made for a huge range of tasks, in operations of every size. They're easy to set up , program, operate, and scale.



Built by industry-leading experts. And serviced by the broadest service network in the industry. Whatever your need , we're here to support every



step of your automation journey. Our robots provide the ideal solutions for use in material handling, machine tending, spot welding, arc welding,



cutting, assembling, testing, inspecting, dispensing, grinding, and polishing applications.



Specification
item
value
Place of Origin
Denmark
Brand Name
UR
Application
Pick&place, palletizing, handling
Features
Collaborative ,light weight, save space
Condition
New
Production Capacity
200set/month
Warranty
12month
Dimension(L*W*H)
460 mm * 449 mm * 254 mm
Power
350w
Voltage
100V~240v
Applicable Industries
Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food & Beverage Shops
Weight (KG)
64
Showroom Location
Egypt, Canada, Turkey, United States, Italy, France, Germany, Brazil, Japan
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox
Reach range
1750 mm / 68.9 in
PAYLOAD
20 kg / 44.1 lbs
FOOTPRINT
245 mm
WEIGHT
64 kg / 141.1 lbs
Degrees of freedom
6 rotating joints
Safety
17 configurable safety functions
Typical TCP speed
1 m/s (39.4 in/s)
ISO 14644-1 Class Cleanroom
5
Robot mounting
Any Orientation
Materials
Aluminium, Plastic, Steel
Packing & Delivery
Universal 20kg Payload Cobot UR20 Robot Arm For Automatic Welding Robot 0
Universal 20kg Payload Cobot UR20 Robot Arm For Automatic Welding Robot 1

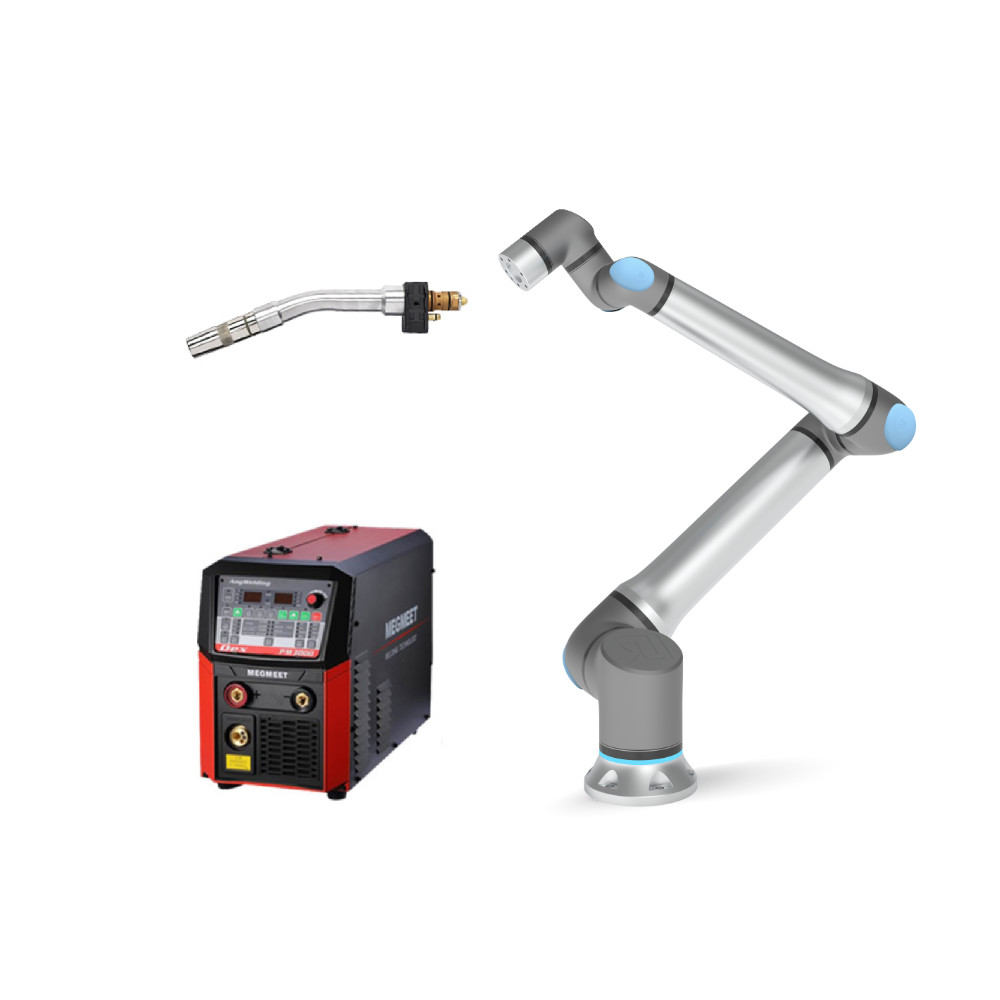

Universal 20kg Payload Robot Cobot UR20 Robot Arm with mig welder for Welding Robot Packed With Fumigated Wooden Boxes
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot/Robot Positioner/Robot Track/Robot Gripper/Robot Control System

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
