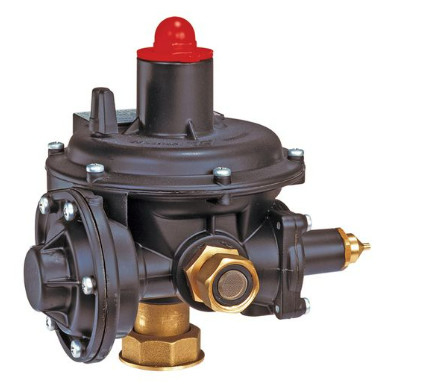

Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment

1
MOQ
negatiation
Price
Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tartarini R/73 Double-Stage Spring-Loaded High Accuracy Pressure Reducing Valve Reducing Regulators For Pipe-line Equip
Model: R
Critical Service: Noise Abatement, Cavitation, Erosive, Low Flow, Corrosive
Brand: Tartarini
Material: Carbon Steel, Stainless, Duplex, Alloy
Operating Temperature: Standard Temperature, High Temperature
Pressure Class: CL150, CL 300, PN 10/16, PN 10/16/25/40, PN 25/40
Heating Jacket: Class 150
Degree Of Protection: IP66
Supply Air: None
Highlight:

Pipeline Equipment Reducing Regulator

,

R/73 Valve Pressure Reducing Regulator

,

IP66 Pressure Regulating Valve Accessories

Basic Infomation
Brand Name: Tartarini
Model Number: R
Payment & Shipping Terms
Packaging Details: pressure measurement Deltabar PMD55B differential pressure transmitter for Endress+Hauser
Delivery Time: 4-12 week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50
Product Description
Product Description

Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment 0
Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment 1
Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment 2

Specification


item

value

Warranty

1 year

Type

Pressure Regulators

Place of Origin

Italy

Brand Name

Tartarini

Model Number

Tartarini R/73

Application

General

Temperature of Media

Normal Temperature

Power

Pneumatic

Media

Base

Port Size

1''1/4''

Structure

Safety

Materials(Body)

Die-cast Aluminium

Filtering capacity

0.5 mm

Applications

Gas,Burners, Furnaces, Boilers

Permissible inlet pressure

Pumax : 6 bar

Inlet pressure range

bpu : 0.1 to 6 bar (*)

Set range

Wd : 15 to 70 mbar

Accuracy class

AC : up to ± 5 %

Lock-up pressure class

SG : up to + 10 %

Temperature

Working -20 °C +60 °C

Connections

G 1 1/4" UNI ISO 228/1 - axial flow (1 1/4" GAS)


Packing & Delivery


Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment 3

Tartarini R/73 Double Stage Spring Loaded Valve Pressure Reducing Regulator For Pipeline Equipment 4

Spare Parts kits blister packed for quick and easy usage for Tartarini Pressure Reducing Regulators as valv valvpacked with one fumigation wooden box Box size: 60*30*40 (cm) WG:4.5 Kg
