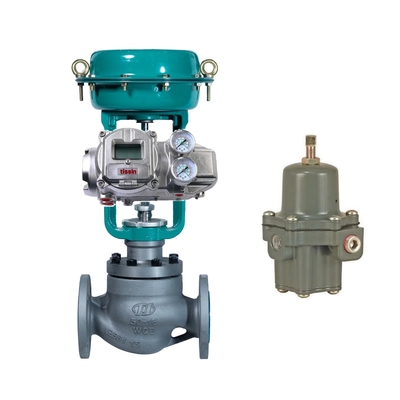

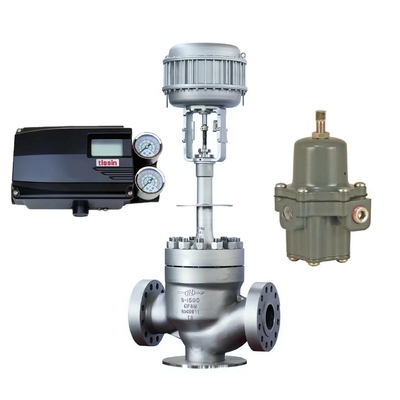

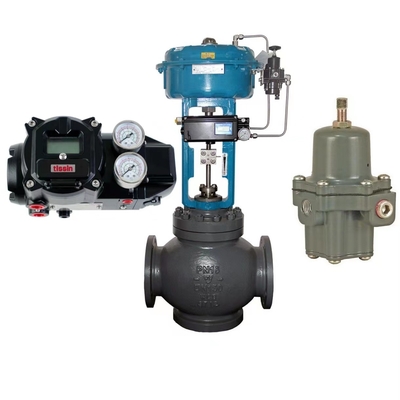

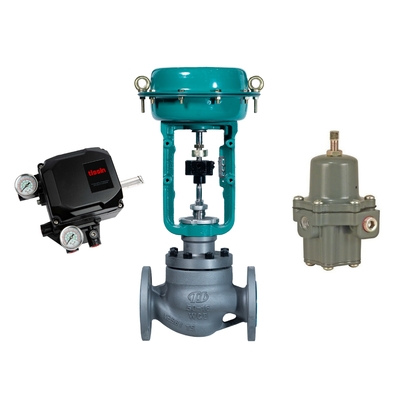

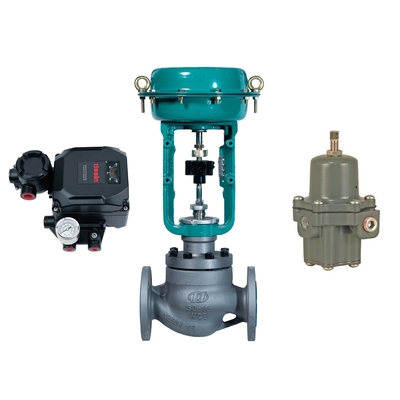

Chuanyi Control Valve Is Equipped With TissinTS905 Smart Valve Positioner And Fisher67CFR Pressure Reducing Valve

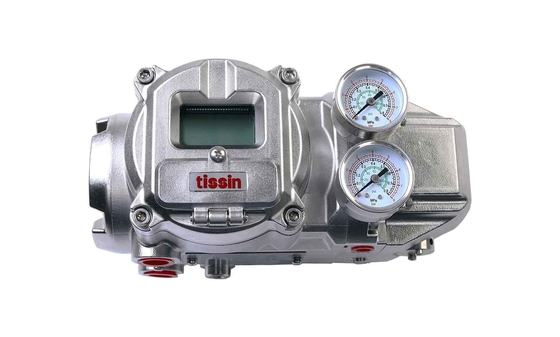

The Tissin 905 Intelligent Valve Positioner is a state-of-the-art device designed for accurately and reliably positioning valves in industrial applications. It utilizes advanced digital control technology to monitor and adjust the position of the valve in real time, ensuring optimal performance and maximum efficiency.
The Tissin 905 features a user-friendly interface with an LCD display, making it easy to configure and monitor the positioner's settings. It also includes advanced diagnostic and calibration capabilities, allowing for precise and efficient maintenance and troubleshooting.
The device is compatible with a wide range of valves and actuators, making it a versatile and adaptable solution for a variety of industrial applications. With its advanced technology and reliable performance, the Tissin 905 is a top choice for industrial operators seeking a high-quality valve positioner.
| MODEL | TS905 | ||
|---|---|---|---|
| Input signal | 4~20mA DC | ||
| Impedance | 500Ω (20mA DC) | ||
| Supply pressure | 0.14~0.7MPa | ||
| Stroke | Linear type:10~150mm, Rotary type:0~90º | ||
| Air connection | PT1/4, NPT1/4 | ||
| Gauge connection | PT1/8, NPT1/8 | ||
| Conduit | G(PF)1/2, NPT1/2 | ||
| Explosion proof type | EX ia IIC T5/T6 | ||
| Degree of protection | IP66 | ||
| Ambient Temp. | Acting Temp. | -30℃~85℃(Standard type), -40℃ ~ 85℃(Low temp type) |
|
| Explosion Temp. | -40℃~60℃(T5) / -40℃~40℃(T6) | ||
| Linearity | ±0.5% F.S. | ||
| Sensitivity | ±0.2% F.S. | ||
| Hysteresis | ±0.5% F.S. | ||
| Repeatability | ±0.3% F.S. | ||
| Air consumption | Below 2.3LPM (Sup.=0.14MPa) | ||
| Required air quality | Class 3 (ISO 8573-1) | ||
| Flow capacity | Over 100LPM (Sup.=0.14Mpa) | ||
| Material | Stainless steel 316 | ||
| Weight | 7kg | ||
