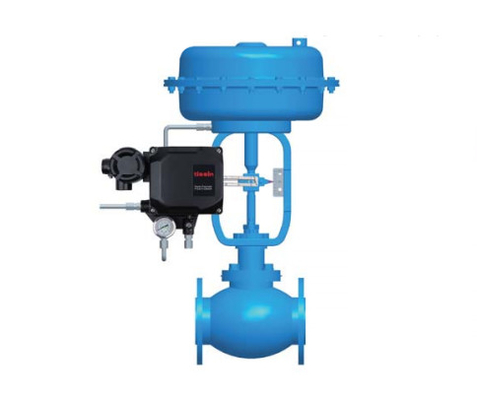

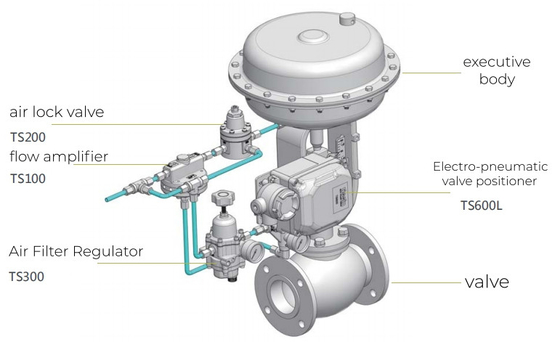

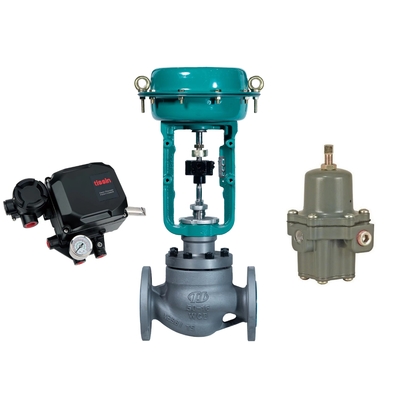

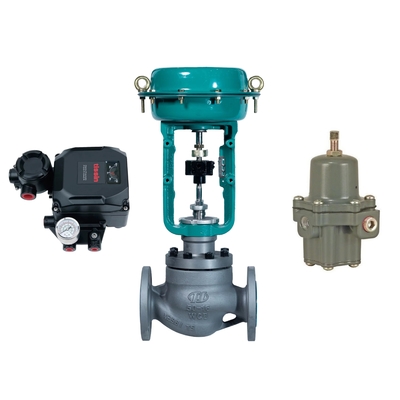

Chinese Chuan Yi Control Valve With Tissin TS600L E-P Positioner And Fisher 67CFR Pressure Reducing Valve

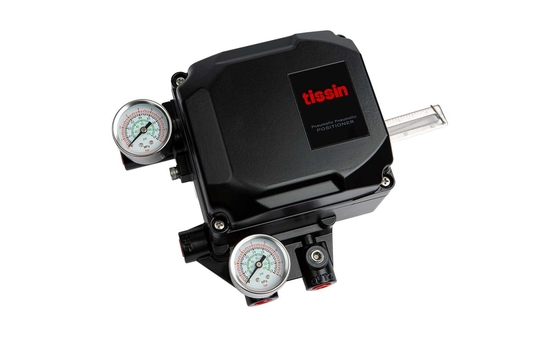

TS600L electro-pneumatic valve positioner is unique in its ability to provide precise and stable control of valve position in a variety of industrial applications. Its advanced design features include a 4-20mA input signal, 0-10V DC output range, and HART protocol communication for easy integration with other process control systems.
In addition, the TS600L offers exceptional accuracy and linearity, with a hysteresis of ≤0.5% of full stroke and linearity of ≤±0.5% of full stroke. Its low air consumption of ≤0.7L/min and wide operating temperature range of -20°C to 70°C make it a versatile and reliable choice for use in a range of harsh industrial environments.
Overall, the Tissin TS600L positioner stands out for its high level of precision, stability, and versatility, making it an ideal choice for a wide range of industrial applications.

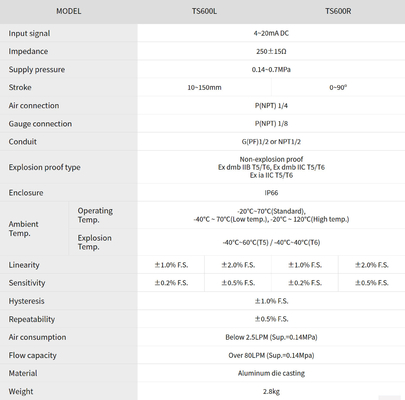

| MODEL | TS600L | TS600R | |||
|---|---|---|---|---|---|
| Input signal | 4~20mA DC | ||||
| Impedance | 250±15Ω | ||||
| Supply pressure | 0.14~0.7MPa | ||||
| Stroke | 10~150mm | 0~90º | |||
| Air connection | P(NPT) 1/4 | ||||
| Gauge connection | P(NPT) 1/8 | ||||
| Conduit | G(PF)1/2 or NPT1/2 | ||||
| Explosion proof type | Non-explosion proof Ex dmb IIB T5/T6, Ex dmb IIC T5/T6 Ex ia IIC T5/T6 |
||||
| Enclosure | IP66 | ||||
| Ambient Temp. | Operating Temp. | -20℃~70℃(Standard), -40℃ ~ 70℃(Low temp.), -20℃ ~ 120℃(High temp.) |
|||
| Explosion Temp. | -40℃~60℃(T5) / -40℃~40℃(T6) | ||||
| Linearity | ±1.0% F.S. | ±2.0% F.S. | ±1.0% F.S. | ±2.0% F.S. | |
| Sensitivity | ±0.2% F.S. | ±0.5% F.S. | ±0.2% F.S. | ±0.5% F.S. | |
| Hysteresis | ±1.0% F.S. | ||||
| Repeatability | ±0.5% F.S. | ||||
| Air consumption | Below 2.5LPM (Sup.=0.14MPa) | ||||
| Flow capacity | Over 80LPM (Sup.=0.14Mpa) | ||||
| Material | Aluminum die casting | ||||
| Weight | 2.8kg | ||||
