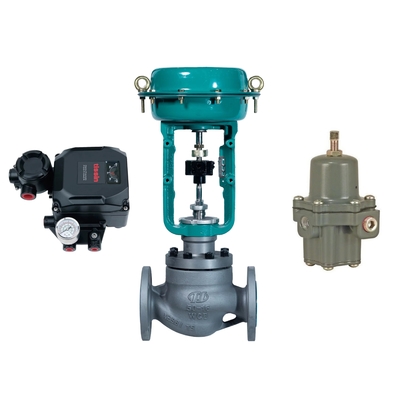

Tissin TS600R E-P Positioner With Chinese Chuan Yi Control Valve And Fisher 67CFR Pressure Reducing Valve

1
MOQ
USD2000~USD4000
Price
Tissin TS600R E-P Positioner With Chinese Chuan Yi Control Valve And Fisher 67CFR Pressure Reducing Valve
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Input Signal: 4~20mA DC
Impedance: 250±15Ω
Supply Pressure: 0.14~0.7MPa
Stroke: 10~150mm 0~90º
Air Connection: P(NPT) 1/4
Gauge Connection: P(NPT) 1/8
Conduit: G(PF)1/2 Or NPT1/2
Explosion Proof Type: Non-explosion Proof Ex Dmb IIB T5/T6, Ex Dmb IIC T5/T6 Ex Ia IIC T5/T6
Enclosure: IP66
Flow Capacity: Over 80LPM (Sup.=0.14Mpa)
Material: Aluminum Die Casting
Weight: 2.8kg
Highlight:

Tissin TS600R E-P positioner

,

Chinese Chuan Yi control valve

,

Fisher 67CFR pressure reducing valve

Basic Infomation
Place of Origin: China
Brand Name: Tissin
Model Number: TS600R
Payment & Shipping Terms
Packaging Details: Based on demand
Delivery Time: 5~8 work week
Payment Terms: T/T
Supply Ability: 50Pcs/Month
Product Description

Tissin TS600R E-P Positioner With Chinese Chuan Yi Control Valve And Fisher 67CFR Pressure Reducing Valve

01 Description

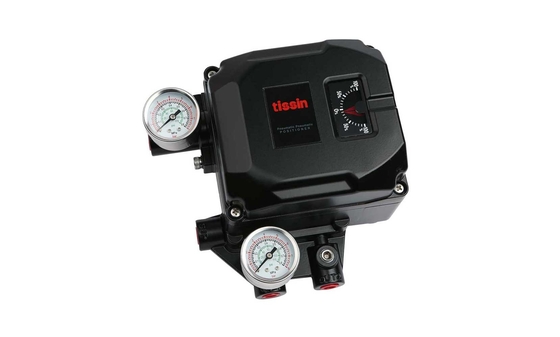

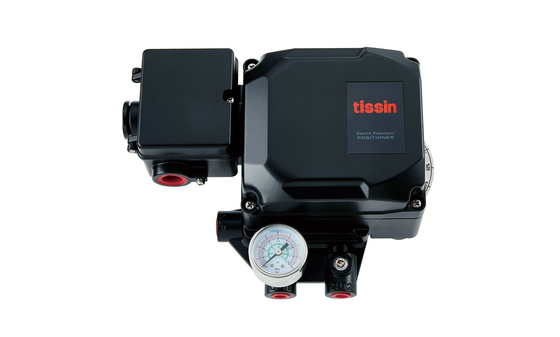

The Tissin TS600R electro-pneumatic valve positioner offers exceptional accuracy and linearity, low air consumption, and a wide operating temperature range. It also features a robust construction with IP66 protection class, advanced diagnostic capabilities, and a position transmitter for precise feedback control.

02 Features

  • Applied to various control valve system
  • Fast response time, durability, and excellent stability
  • Simple zero and span adjustment
  • IP 66 enclosure
  • Easy maintenance due to built-in module type
  • By-pass valve (A/M switch) installed
  • Air connection part is designed for detachability and it can be changed
  • PT/NPT tapping threads in the field easily

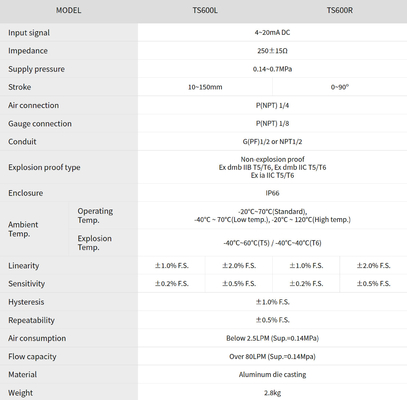

03 Specifications

MODEL TS600L TS600R
Input signal 4~20mA DC
Impedance 250±15Ω
Supply pressure 0.14~0.7MPa
Stroke 10~150mm 0~90º
Air connection P(NPT) 1/4
Gauge connection P(NPT) 1/8
Conduit G(PF)1/2 or NPT1/2
Explosion proof type Non-explosion proof
Ex dmb IIB T5/T6, Ex dmb IIC T5/T6
Ex ia IIC T5/T6
Enclosure IP66
Ambient Temp. Operating Temp. -20℃~70℃(Standard),
-40℃ ~ 70℃(Low temp.), -20℃ ~ 120℃(High temp.)
Explosion Temp. -40℃~60℃(T5) / -40℃~40℃(T6)
Linearity ±1.0% F.S. ±2.0% F.S. ±1.0% F.S. ±2.0% F.S.
Sensitivity ±0.2% F.S. ±0.5% F.S. ±0.2% F.S. ±0.5% F.S.
Hysteresis ±1.0% F.S.
Repeatability ±0.5% F.S.
Air consumption Below 2.5LPM (Sup.=0.14MPa)
Flow capacity Over 80LPM (Sup.=0.14Mpa)
Material Aluminum die casting
Weight 2.8kg
