Name: Packaging Compressor Related Supporting Pressure Regulator Valve EMERSON Tescom 26-2700 Series Back Pressure Regulator
Brand: TESCOM
SKU: 26-2700
Rating: 4.5 (101 reviews)

Home > products > Control Valve Positioner >

Packaging Compressor Related Supporting Pressure Regulator Valve EMERSON Tescom 26-2700 Series Back Pressure Regulator

26-2700 Pressure Regulator Valve

Back Pressure Control Valve Positioner

Brand Name:

TESCOM

Model Number:

26-2700

Request A Quote

Product Details

Product Name:

EMERSON Tescom 26-2700 Series Backpressure Control Regulator

Brand:

TESCOM

Model:

26-2700

Seat, Main Valve:

CTFE, Vespel SP21

Bonnet, Back-cap,Body:

Brass, 303 Stainless Steel, 316 Stainless Steel

Remaining Parts:

300 Series Stainless Steel, Nitronic 60

Operating Temperature:

See Part Number Selector

Port Size & Type:

SAE, NPTF 1/2, 3/4

Hysteresis:

±0.5% F.S

Sensitivity:

±0.2% F.S

Reapeatability:

±0.3% F.S

edward.zhao@gongboshi.com

Contact Now

Product Description

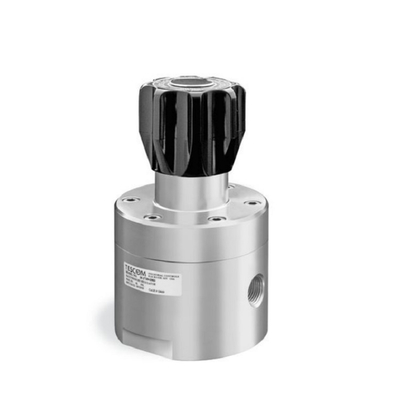

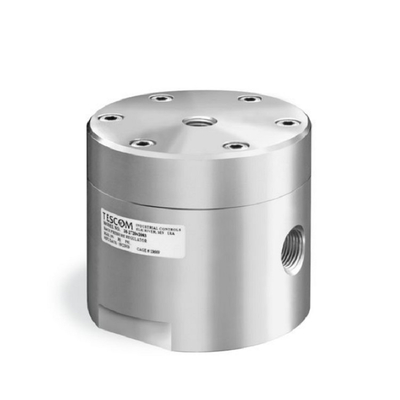

EMERSON Tescom 26-2700 Series Backpressure Control Regulator


26-2700 Series is a high flow, low pressure backpressure regulator with spring, dome and air loading options.Ideal for use in pump and compressor control and process pressure control. Suitable for high flow, low pressure chemical injection.

Maximum Inlet Pressures Air Loaded: 450 psig / 31.0 bar

Dome Loaded: 1000 psig / 69.0 bar

Spring Loaded: 0 -

30, 80, 185, 300, 375 psig / 2.1, 5.5, 12.8, 20.7, 25.9 bar

Seat, Main Valve CTFE, Vespel® SP21

Body, Bonnet, Back-cap Brass, 303 Stainless Steel, 316 Stainless Steel

O-Rings Buna-N, Ethylene Propylene., Viton®

Diaphragm Gylon®

Remaining Parts 300 Series Stainless Steel, Nitronic 60

Operating Temperature See Part Number Selector

Port Size & Type SAE, NPTF 1/2, 3/4

Flow CapacityCv = 2.0

Load TypeSpring, Air, Dome

Weight approximate:10.5 lbs / 4.8 kg

Additional Information For custom modifications or a complete system solution, please contact your local sales office.

Specifications

Pressure Range	5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications	PED, CUTR, ATEX
Inlet Pressure Rating	210 psi (1.5 MPa, 15 bar) maximum
Operating Temperature	Standard Temperature
Connection	SOLENOID
Application	Gas& Oil industry

Detailed Images

Packing & Delivery

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Our Company

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
