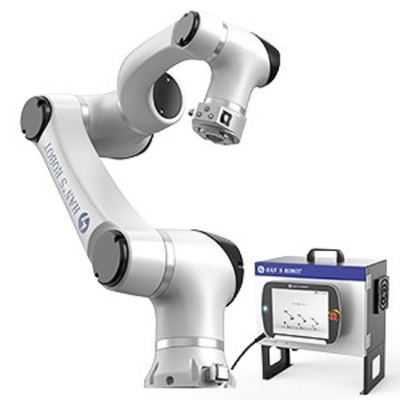

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China

800MM Reach Robotic Arm

Elfin 5 Collaborative Robot Arm

Collaborative Robotic Arm 5KG Payload

Place of Origin:

China

Brand Name:

HAN'S

Model Number:

Elfin 5

Contact Us

Request A Quote
Product Details
Product Name:
Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China
Reach:
800mm
Payload:
5kg
Weight:
23kg
Type:
Elfin 5
Point Range:
360°
Joint Speed:
90°/S
Working Temperature:
0-50°C
IP Class:
IP 54
I/O Source:
24V 2A
Product Description

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China


Specification


item

value

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

After Warranty Service

Video technical support, Online support

Local Service Location

Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Russia, Spain, Thailand, Japan, Australia, South Korea

Showroom Location

Canada, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, India, Mexico, Russia, Thailand, South Korea

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC

Condition

New

Place of Origin

China

Brand Name

Hans

Warranty

1 Year



Online support

Product name

Elfin 5 Collaborative Robot

Type

Elfin 5

Payload

5kg

Reach

800mm

Weight

23kg

Point Range

360°

Joint Speed

90°/s

IP Class

IP54

Working Temperature

0-50°C

I/O Source

24V 2A


Packing & Delivery


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 0

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 1

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Service Robot As Collaborative Robot From China packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 2

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 3

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 4


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 5

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 6

Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 7

Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.

FAQ

1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Robot,Control Valve

4. why should you buy from us not from other suppliers?
1: We are with ABB,KUKA,FANUC,YASKAWA agentand many other brands agent for years. 2: Majority of our engineer from KUKA, ABB. The engineering manager worked in ABB company for 19 years. 3: We can offer majority of industrial controlled component.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 9


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 10


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 11


Model

AUBO i3

Maximum reach

625mm

Maximum payload

3kg

Weight

15.5 kg

Power

DC48V





Product Features

1.Multiple Models This series of robots can be used in small parts assembly, dispensing, machine tending, material handling, electronics and many other applications in general industrial fields. 2.Reliable Performance It can adapt to harsh working environment, and can also be equipped with integrated joints which are easy to disassemble and transport. 3.Easy to Maintain Considering that improving maintainability is a key factor to reduce costs, the robot's after-sales and maintenance time is reduced by 15%. 4.Technical Support We will provide you with long-term technical services. If you have any technical problems or other needs during using our robot, you are welcome to contact us.


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 12


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 13


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 14


Elfin 5 With 5KG Payload 800MM Reach And Robotic Arm Cobot As Collaborative Robot From China 15
