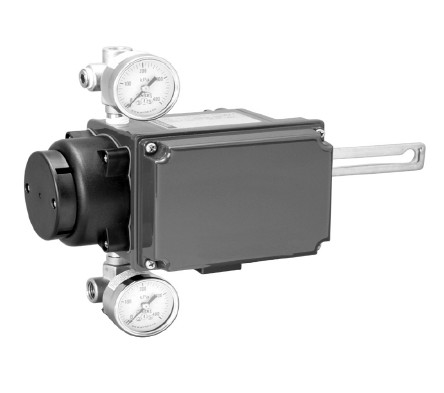

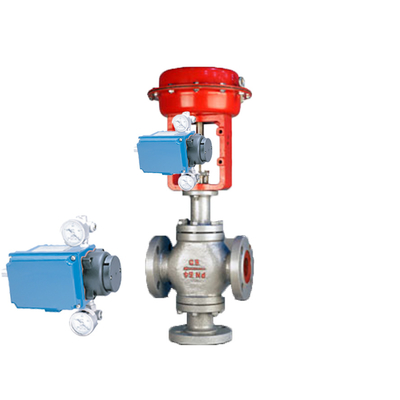

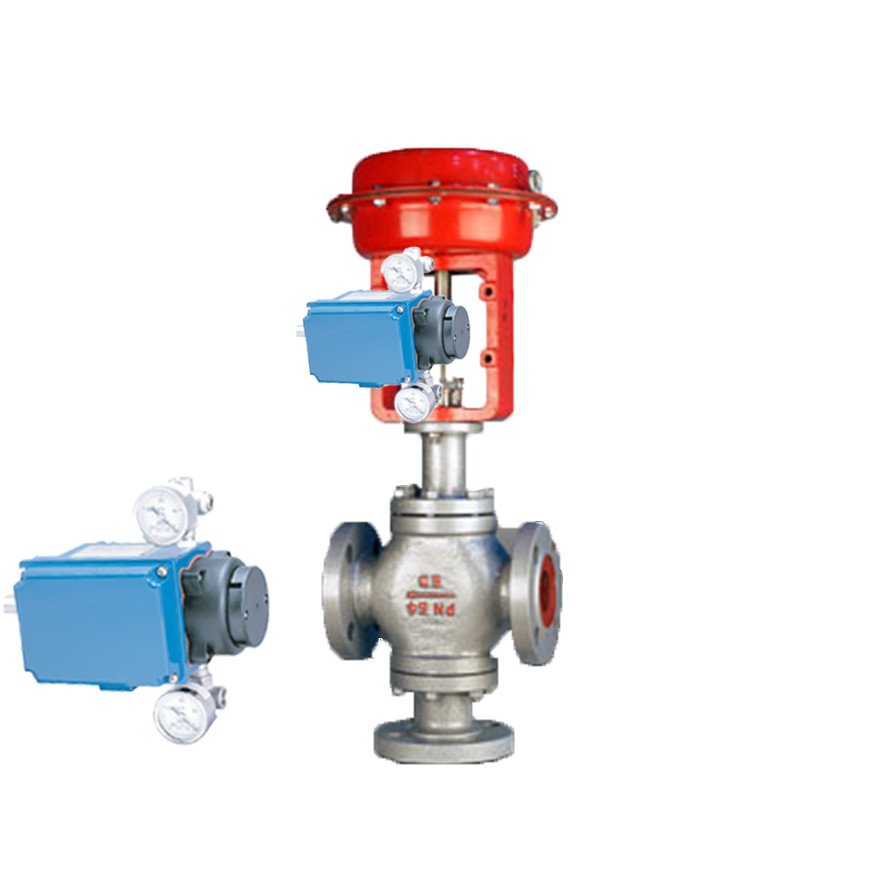

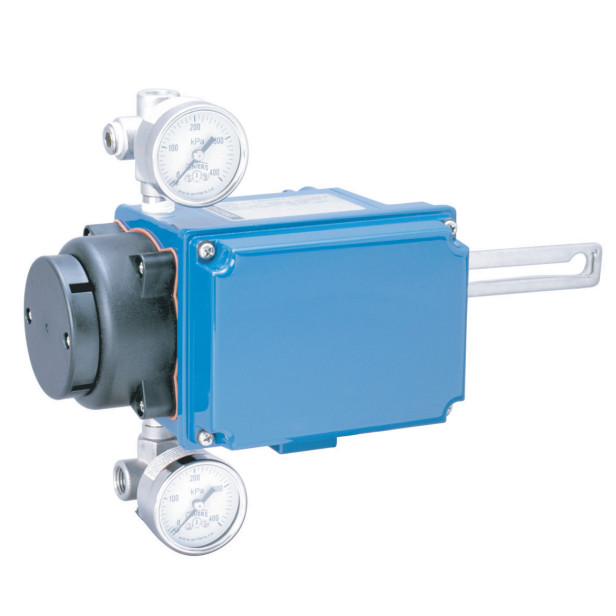

Azbil AVP 100 Digital Valve Positioner For Chinese Chuanyi Precision Pneumatic Valve

The Flowserve Logix 3200MD+ Digital HART® positioner utilizes state-of-the-art piezo technology to provide superior
performance and reliability. The Logix 3200MD+ can be easily configured using the local buttons, HART handheld, and
ValveSight software.
The following instructions are designed to assist in unpacking, installing and performing maintenance as required on Logix® 3200MD+ positioners. Series 3200 is the term used for all the positioners herein; however, specific numbers indicate features specific to model (i.e., Logix® 3200 indicates that the positioner has HART® protocol). See the Logix® 3200MD+ Model Number table in this manual for a breakdown of specific model numbers.
User Instructions cannot deal with all possible situations and installation options. It is required that only trained and
qualified technicians are authorized to adjust, repair or work on control valves, actuators, positioners and other accessories. Review this bulletin prior to installing, operating or performing any maintenance on the valve. Additional Installation, Operation, and Maintenance Instructions (IOMs) cover other features (such as valves, special trim, actuators, handwheels, and packing).
To avoid possible injury to personnel or damage to valve parts, DANGER, WARNING and NOTE indicators must be strictly
followed. Modifying this product, substituting non-factory parts or using maintenance procedure other than outlined could
drastically affect performance and be hazardous to personnel and equipment and may void existing warranties. This manual should be used in conjunction with applicable local and national laws. Failure to comply with User Instructions will render the manufacturer’s guarantee and liability null and void. Unless otherwise agreed, the manufacturer’s general terms and conditions of sale shall apply
