Place of Origin:
China
Brand Name:
Flowserve
Contact Us

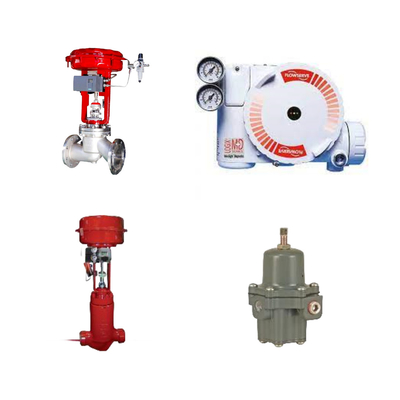

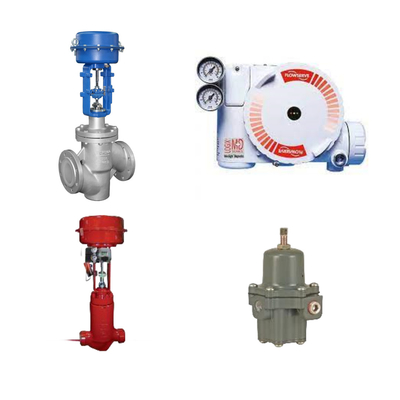

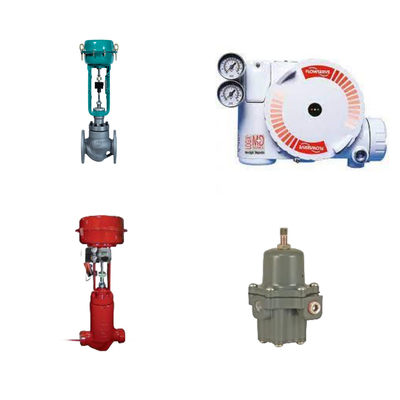

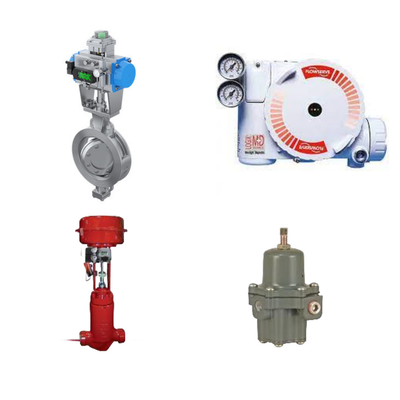

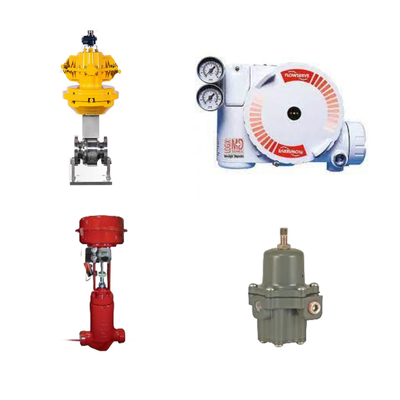

The Logix 3200MD digital positioner is a sophisticated device designed for precise valve control. It operates on a two-wire system using a 4-20 mA input, making it highly efficient. Users can conveniently configure its functions with the user-friendly local interface.
An important advantage of the Logix 3200MD is its compatibility with the HART protocol, which so enables two-way remote communication. This expands the capability of remote monitoring and control.
In addition, its versatility allows it to control both double-and single-acting actuators, linear or rotary mountings from the same 4-20 mA input signal, thus simplifying the power requirements.
| Parameter | Value |
|---|---|
| Brand Name | Flowserve Masoneilan |
| Model Number | Logix 3200MD Digital HART Positioner |
| Communications | HART Protocol |
| Power Supply | Two-wire, 4-20 MA 10.0 To 30.0 VDC |
| Housing Material | Cast, Powder-painted Aluminum, Stainless Steel |
| Weight (Aluminum) | 8.3 Pounds (3.9 Kg) |
| Weight (Stainless Steel) | 20.5 Pounds (9.3 Kg) |
| Repeatability | <0.05% Full Scale |
| Compliance Voltage | 10.0 VDC @ 20 MA |
| Maximum Voltage | 30.0 VDC |
The Logix 3200MD Digital HART Positioner is a high-performance pneumatic valve positioner designed by Flowserve. It is suitable for precise control of modulating valves, and can be used in a wide variety of automation applications. It is a reliable, cost-effective solution for controlling process valves, and provides an easy way to integrate the position of a valve into a control system. The Logix 3200MD Digital HART Positioner is designed to meet the highest standards of accuracy and speed, and is capable of achieving repeatability of less than 0.05% full scale. It is powered by two-wire, 4-20 MA 10.0 to 30.0 VDC and has a compliance voltage of 10.0 VDC @ 20 MA. The Logix 3200MD Digital HART Positioner is capable of communicating with HART protocol and offers advanced features such as auto-calibration, local valve diagnostics, and easy-to-use software. It is available at a competitive price of 2700USD~3200USD in minimum order quantity of 1 and can be packaged according to the customer's demand. The delivery time is generally 4 to 8 work weeks, and the payment terms include T/T. The Logix 3200MD Digital HART Positioner can be supplied in a maximum quantity of 50PCS/Month.
Masoneilan Logix 3200MD Digital HART Positioner is a reliable and efficient valve positioner for controlling and regulating the flow of fluids. It is designed with a maximum voltage of 30.0 VDC, a minimum voltage of 10.0 VDC @ 20 MA, and a housing material of cast, powder-painted aluminum, and stainless steel. Its weight is 8.3 pounds (3.9 kg) aluminum and 20.5 pounds (9.3 kg) stainless steel.
We provide technical support and service for our Control Valve Positioner products to ensure customers have the best experience with our products.

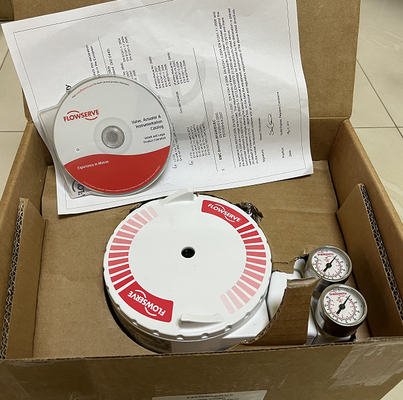

Control valve positioners are typically packaged in cardboard boxes or wooden crates for ultimate protection. All parts are securely fastened to the packaging and labeled with the product name, model number, and serial number. The boxes are then placed in larger boxes, such as corrugated cardboard boxes or wooden pallets, and are sealed with packaging tape. The boxes are then shipped to the destination via freight, UPS, or other shipping services.
