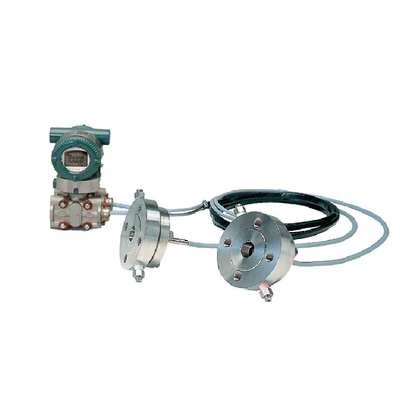

YOKOGAWA Differential Pressure Transmitter EJA118EZ Diaphragm Sealed Inner Diaphragm Type For Storage Tank

Neles double acting and spring return B1-seriespiston type actuators are designed for use in bothmodulating control and on-off service. The seriesB1C and B1J are designed to iso 521 1 /1 whenNeles linkages are utilized. These actuators offeran extremely long cycle life and are well suited tooperate almost any type of rotary valve.

When "stay put is the requirement, the doubleacting B1 C series is the choice. This series isavailable in several sizes with torque outputs from40 Nm to 100 000 Nm (29.5 lbf ft to 73 756 bf ftfor maximum supply pressure of 10 bar (1 45 psi).

lf a failure mode is required, the spring return B1Jseries should be selected. This line offers a self-contained spring cartridge to provide failure ineither the open or closed position. The spring returnactuators are available with a mid-range spring fora 4 bar (58 psi) supply range, a lighter spring forlower supply pressure of 3 bar (44 psi) range and astronger spring for a 5.5 bar (80 psi) range. Theseactuators offer torque outputs from 25 Nm to12000 Nm (18,5 lbf ft to 8851 lbf ft) for maximumsupply pressure of 8.5 bar (124 psi)

• High-and-low temperature construction: The standard unit can be used in temperatures up to 70 °C (158 F) High temperature construction is available for temperatures up to 120°C (248 F). The standard unit can be used down to -20 C(-4 F). A low temperature design is available for -40° to +70°C (-40° to 158 °F ), arctic service please refer type coding
• High cycle option: For applications where very fast and high sequency operation is required.
• ATEX compatibility: Actuator construction ATEX approved.
• Oversized cylinder options: The oversized cylinders (B1C 60, 75, 602, 752) are used whenever the supply pressure is limited, thus the actuators can achieve the required torques with a lower supply pressure level.
• Override options: Available override devices include a manual centerpiece handle, a manual handwheel override, and a manual hydraulic override for high torque applications.
• Emergency shut-down: Emergency Shut-Down (ESD) valves utilizing Bl] actuators are offered to assure operation in the event of a fire or plant malfunction. The ESD device enables valve operational testing without cycling, see bulletin 6B21.

1. Swift delivery: For common parts, we can deliver the goods within 3 days
2. Original products: All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3. Quality Assurance
4. Technical Support: Including inspection,repair and maintenance, we can give all kinds of technical support.
5. Quickly responce: Our staffs will keep 24h online and answer your question very quickly.
