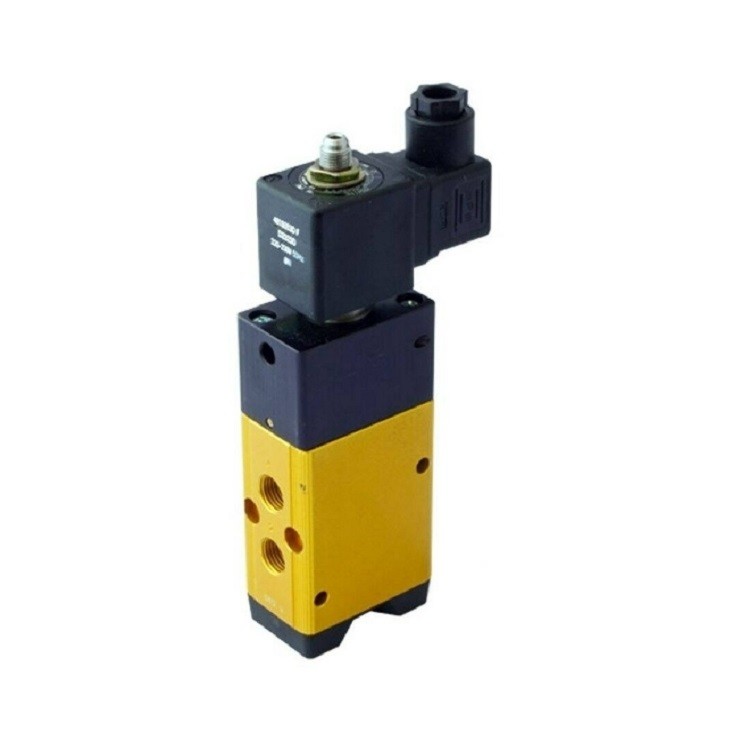

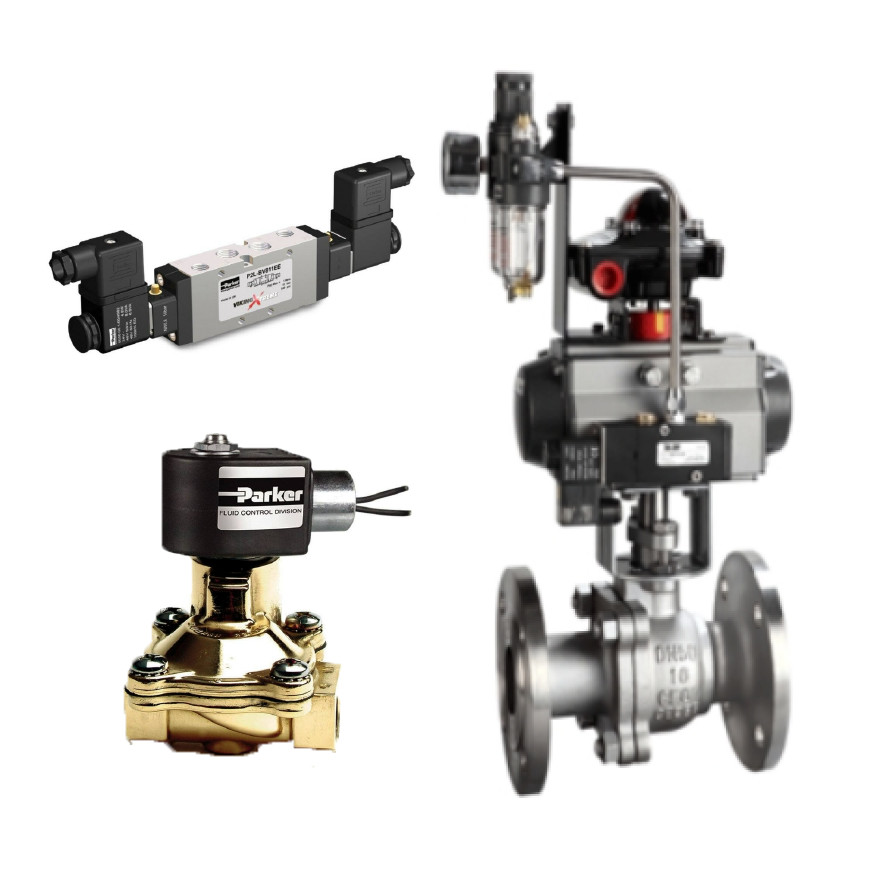

Chinese Control Valves With Pneumatic Actuator And parker D3DW solenoid valve

product image




Product Description



Product name Chinese Control Valves With Pneumatic Actuator And parker D3DW solenoid valve
Mode parker D3DW
Brand name parker
Material Aluminum
Supply Pressure 500 psig, [35.0 BAR], (3500 kPa) Maximum
Flow Capacity
40 SCFM (68m3 /HR) @ 100 psig, [7.0 BAR], (700 kPa) supply and
20 psig, [1.5 BAR], (150 kPa) setpoint
Exhaust Capacity
5.5 SCFM (9.35 m3 /HR) where downstream pressure is
5 psig, [.35 BAR], (35 kPa) above 20 psig, [1.5 BAR], (150 kPa) setpoint
Supply Pressure Effect
Less than 0.1 psig, [.007 BAR], (.7 kPa) for 100 psig, [7.0 BAR], (700 kPa)
change in supply pressure
Sensitivity Less than 1/8" (.32 cm) water column
Ambient Temperature
-40o F to +200o F, (-40o C to 93.3o C)
