Name: Chinese control valve with pneumatic actuator Masoneilan SVI3 valve positionerSVI3-21121212 SVI3-21111212 fisher 67cfr r
Brand: Masonelian
SKU: SVI2 AP-21113111 SVI2 AP-21123121
Rating: 4.5 (148 reviews)

Home > products > Control Valve Positioner >

Chinese control valve with pneumatic actuator Masoneilan SVI3 valve positionerSVI3-21121212 SVI3-21111212 fisher 67cfr r

Brand Name:

Masonelian

Model Number:

SVI2 AP-21113111 SVI2 AP-21123121

Request A Quote

Chinese control valve with pneumatic actuator Masoneilan SVI3 valve positionerSVI3-21121212 SVI3-21111212 fisher 67cfr r

Product Details

Model:

SVI2 AP-21113111 SVI2 AP-21123121

Size:

3/4" Through 8"

SUPPLY:

Pneumatic

Brand:

Masonelian

MEDIUM TEMPERATURE:

-196 To 425 °C

Voltage:

AC / DC 220V, AC 380V,etc

Heating Jacket:

Class 150

Degree Of Protection:

IP66

Supply Air:

None

Accuracy:

±0.5%

Dimensions:

100 X 100 X 100mm

Hysteresis:

±0.2%

Input Signal:

4-20mA

Mounting Type:

Panel Mount

Operating Temperature:

-20°C To +60°C

Output Signal:

4-20mA

Position Feedback:

Potentiometer

Product Name:

Control Valve Positioner

Protection Class:

IP65

Repeatability:

±0.2%

Response Time:

2ms

Supply Voltage:

24V DC

Type:

Electronic

Weight:

1.2kg

edward.zhao@gongboshi.com

Contact Now

Product Description

Chinese control valve with pneumatic actuator Masoneilan SVI3 valve positionerSVI3-21121212 SVI3-21111212 fisher 67cfr


Power Generation, Refining, Petrochemicals, Midstream Oil & Gas, Upstream Oil & Gas.

Key Applications : Steam Turbine Generator, Condenser, Cooling Tower, Reactor Building,Turbine Building, Reactor Facility Grounds

& BOP, Steam Turbine, Gas Turbine, Heat Recovery Steam Generator, Balance Of Plant, Distillation,
Hydroprocessing Reforming,

Cracking, Secondary, Blending, Quenching & Fractioning, Charge Gas Compression, Seperation, Pipeline Integrity, Operations,

Dehydration, Refrigeration, Liquifaction, Loading/Shipping, Regasification, Auxillary,
Dehydration/Treating, Compression.

Standard construction
Bellows seal configuration is fully compatible with the standard 21000 Series trim and actuator options

providing equivalent capacity capabilities for each valve size. The standard packing box design and packing design options are used as a secondary stem seal.

Rugged design
The formed bellows construction is an externally pressurized design that is capable
of operating up to the full valve ANSI B16.34 pressure rating. Guides are located above and below the bellows providing excellent stability to withstand flow induced and mechanical vibration.

Extended life
The bellows assembly is designed for 50% compression/ extension (zero stress) at the valve mid-stroke position to help maximize cycle life. Bellows torsional stresses are also reduced with the anti-rotation feature provided by flats on the plug stem.

High quality
Each bellows sub assembly is helium leak tested to verify weld integrity, and is also hydro-statically tested as part of the complete valve assembly. Mechanical travel stops are

also designed into both the bellows and valve assemblies to prevent over compression or extension.

Smart solution
Bellows installed cycle life can be monitored in the field by utilizing Masoneilan’s SVI™ Digital Positioner with actual process data.This advanced preventative maintenance option will help improve plant safety by identifying potential hazardous failures before they happen, and cut cost by reducing premature bellows replacement.

Bellows materials standard material
316/316L stainless steel


Optional materials
• Hastelloy C276
• Monel 400 • Inconel 625


Specifications

Reference variable	4 to 20 mA
Trave	5 to 50 mm
Opening angles	24 to 100°
Operating Temperature	Standard Temperature
Explosion protection	Intrinsic safety: ATEX, STCC,
Application	Gas& Oil industry

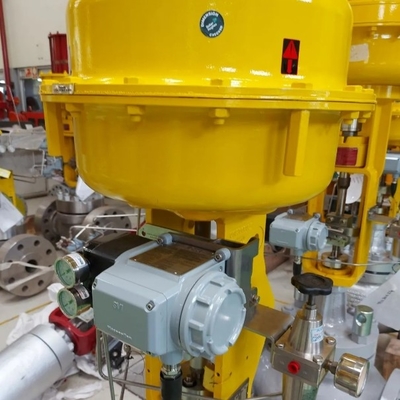

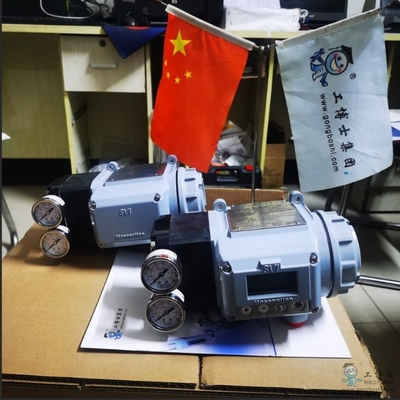

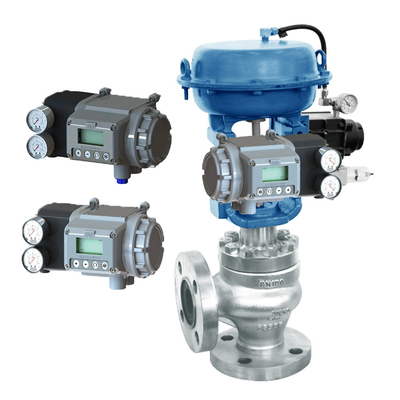

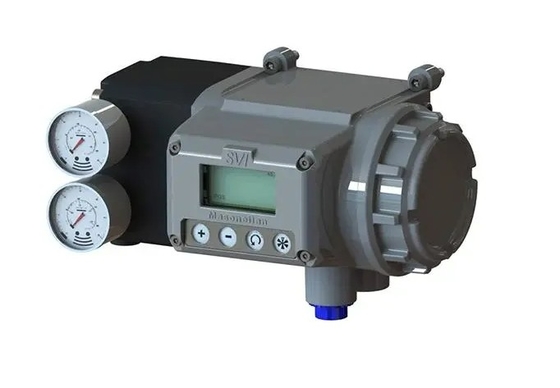

Detailed Images

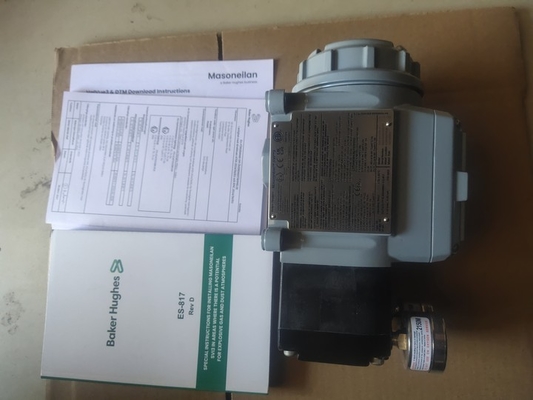

Packing & Delivery

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Our Company

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd.

Xiangjing(Shanghai)Mechanical and Electrical Tech. Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.
