Electro Pneumatic Valve Positioner Fisher 3620j Provided By Flow Control Equipment Supplier Affordable Valve Component

1
MOQ
2580USD~2780USD
Price
Electro Pneumatic Valve Positioner Fisher 3620j Provided By Flow Control Equipment Supplier  Affordable Valve Component
Features Gallery Product Description Request A Quote
Features
Specifications
Minimum Current: 4-20 MA DC Constant Current
Degree Of Protection: IP 54/NEMA 3
Operative Temperature Limits: -40 To 82℃
Hysteresis: 0.75% Of Output Span
Sensitivity: A 10% Change In Supply

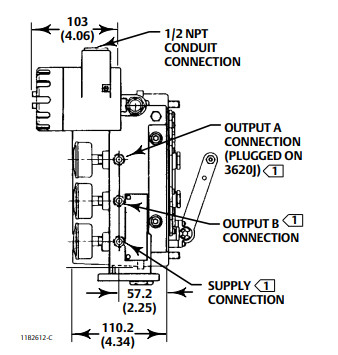

Electrical Connection: 1/2-14 NPT Conduit Connection
Media: Air
Highlight:

Electro Pneumatic Valve Positioner

,

Fisher 3620j Valve Positioner

,

Affordable Valve Component Positioner

Basic Infomation
Place of Origin: China
Brand Name: Fisher
Certification: -
Model Number: Fisher 3620J
Payment & Shipping Terms
Packaging Details: Based on demand
Delivery Time: 4~8 work week
Payment Terms: T/T
Supply Ability: 50PCS/Month
Product Description

Product Description:

The Fisher Control Valve Positioner boasts 1/4 NPT pressure connections for secure system integration and IP54/NEMA 3 protection, enduring harsh environments. Its 1/2-14 NPT conduit electrical connection ensures easy installation. As a Fisher product, it guarantees high quality and longevity. Ideal for precise process control, it's the good valve positioner solution.



Features:

  • Product Name: Fisher 3620j  Control Valve Positioner
  • Minimum current: 4-20 MA DC Constant Current
  • Output Signal: Pneumatic Pressure As Required By The Actuator Up To Full Supply Pressure
  • Electrical Connection: 1/2-14 NPT Conduit Connection
  • Degree of protection: IP 54/NEMA 3
  • Pressure Connections: 1/4 NPT Internal

The Control Valve Positioner is a Electro Pneumatic Valve Positioner that regulates the position of valves using a minimum current of 4-20 MA DC constant current. It outputs a pneumatic pressure signal as required by the actuator up to full supply pressure. It has an electrical connection of 1/2-14 NPT Conduit Connection and a degree of protection of IP 54/NEMA 3. Its pressure connections are 1/4 NPT internal. This valve position regulator is a reliable solution for controlling the position of valves.



Technical Parameters:

Product Type Valve Position Automation
Model Number 3620J
Materials Stainless Steel,Copper,Brass ,Low Copper Aluminum Alloy
Maximum current 30 VDC Compliance Voltage
Minimum current 4-20 MA DC Constant Current
Sensitivity A 10% Change In Supply
Hysteresis 0.75% Of Output Span
Operating conditions Gas: T6 Dust: T82
Degree of protection IP 54/NEMA 3
Operative Temperature Limits -40 To 82℃


Applications:

The Fisher 3620J valve positioner is used in a wide range of industrial applications, including chemical processing, oil and gas production, and power generation. It is especially useful in situations where precise control of valve position is required for optimal process performance.

Some common occasions and scenarios where the Fisher 3620J valve positioner can be used include:

  • Controlling the flow rate of chemicals in a production process
  • Regulating the pressure of steam or gas in a power generation plant
  • Controlling the temperature of a furnace in a steel mill
  • Regulating the flow of water or other liquids in a municipal water treatment plant

The Fisher 3620J valve positioner is a reliable, precise choice for industrial applications. Its advanced automation and robust build enhance process efficiency and accuracy.
