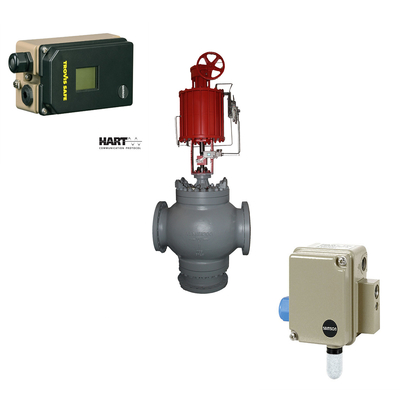

Valve positioners are essential components in accurately controlling regulating valves. There are different types of valve positioners available that cater to specific industrial requirements. Here are some commonly used valve positioners:
The reference variable for this type of valve positioner is the standard pneumatic signal ranging from 0.2 to 1 bar. Its accuracy makes it suitable for regulating various pneumatic valves with precision.
For industrial applications that require high-precision control, the electric/gas valve positioner is the go-to option. It accepts an input control signal ranging from 4 to 20 mA.
This type of valve positioner is integrated into the electric actuator, which provides a built-in control algorithm and stable performance. It is suitable for long-term stable operations.

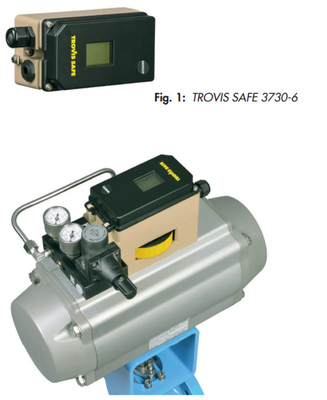

The high air capacity of this device allows for efficient usage in a variety of applications. Additionally, it offers simple attachment to all common linear and rotary actuators such as SAMSON direct attachment and NAMUR rib. It can also be attached to rod-type yokes according to IEC 60534-6-1, or based on VDI/VDE 3847 and 3845 standards.

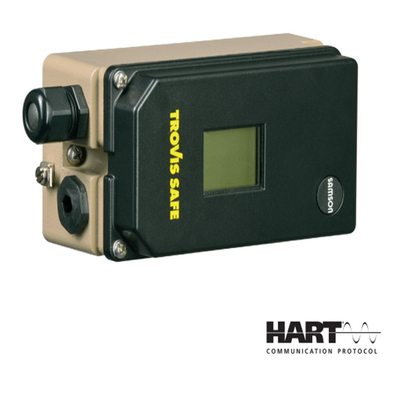

This positioner is equipped with non-contact position sensing technology and has a plain-text display that complies with NAMUR Recommendation NE 107. It also includes integrated diagnostic functions and has a simple one-knob, menu-driven operation. The LCD display is easy to read in any mounting position, thanks to the selectable reading direction feature.
Moreover, this device is configurable with a computer via the SSP interface, using the TROVIS-VIEW software. It also has a variable, automatic start-up with four different initialization modes. In case of emergency, the sub (substitution) initialization mode allows the positioner to be started up without changing the valve position.
Additionally, all parameters are saved in non-volatile EEPROM and the two-wire system has a small electrical load of 465 Ω. The adjustable tight-closing function and continuous zero monitoring add to the versatility and efficiency of this positioner.
| Brand Name | SAMSON |
| Model Number | 3730 |
| Electrical Connection | 1/2-14 NPT Conduit Connection |
| Approximate Weight | 3.5 Kg (8.0 Pounds) |
| CONTROL LOOP | 4 To 20 MA |
| Static Destruction Limit | 40 V, Internal Current Limit Approx. 40 mA |
| Hysteresis | ≤0.3 % |
| Valve Travel | 3.6 To 300 mm |
| Direction of Action | Reversible |
| Opening Angle | 24 To 100° |
The SAMSON valve positioner is a highly regarded series of valve positioners produced by the German company, SAMSON. These positioners are used across various industries such as petrochemical, electric power, light industry, metallurgy, medicine, beer and beverage, city heating and more.
SAMSON has over 90 years of experience in the industry and is well-known for its exceptional quality, entrepreneurial spirit and innovative approach.
Each of these valve positioners offers unique advantages and applications depending on the needs of your specific industry. The SAMSON valve positioner series is designed to provide highly accurate and reliable control of valve action, ensuring optimal performance and safety.
Our Control Valve Positioner product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers and technicians are available to provide assistance with installation, calibration, troubleshooting, and maintenance. We also offer training programs to help customers learn how to operate and maintain the product. In addition, we provide repair and replacement services to minimize downtime and ensure continuous operation. Our commitment to quality and customer service is reflected in our warranty program, which covers defects in materials and workmanship for a specified period of time. Contact us for more information on our technical support and services.
Product Packaging:
Our Control Valve Positioner product is carefully packaged in a sturdy cardboard box to ensure safe delivery. The product is wrapped in protective foam and includes instructions for installation and operation.
Shipping:
We offer free shipping to customers within the United States. Orders are processed within 24 hours of receipt and shipped via UPS Ground. Delivery time varies depending on the destination, but typically takes 3-5 business days.
