azbil valve is composed of various components such as the valve body, valve plate, valve stem, bearing, seal and more. These individual pieces work together in unison to provide a strong and reliable fluid flow control system.
Among the components, the valve body is considered the main body of the entire valve. It is responsible for maintaining the connection between the pipeline and the fluid flow control system, ensuring that fluid flow is effectively controlled.
The valve plate is an essential part that is used to close or open the valve port. It plays a vital role in controlling the flow of fluid through the pipeline by controlling the movement of the valve plate.
The valve stem connects the valve plate with the operating mechanism. It is a critical component that enables the valve plate to move accurately, allowing for precise control of fluid flow through the valve port.
Bearings are used to support the valve plate and stem components. They are responsible for ensuring smooth and accurate movement of the valve plate, enabling the system to function optimally.
The seal is a vital component used to prevent fluid leakage and seal the valve port. It is responsible for maintaining the integrity of the fluid control system, ensuring smooth and uninterrupted flow of fluids through the pipeline.
The AZBIL valve design conforms to explosion-proof standards, ensuring that it can be safely used in explosive environments. This helps prevent explosions caused by electrical sparks or high temperatures.
The valve has high-precision detection ability, enabling it to accurately detect the opening and closing state of the valve. This ensures accurate control in the system.
The shell of the valve is made of aluminum alloy casting and undergoes anti-rust treatment and baking paint, providing excellent corrosion resistance. This makes the valve suitable for use in various harsh environments.
The AZBIL valve uses strong aluminum die-casting case and has a built-in two-circuit double break basic switch. This makes the valve not easily damaged and ensures a reliable circuit cut-off function.
The compact design of the valve allows for easy installation in a variety of space-limited environments.
The valve comes in a wide range of materials and specifications, including carbon steel, Cr-Mo steel, and stainless steel. This allows it to meet different fluid and control needs.
The valve features an equivalent to NEMA4X, IP65 drip-proof structure, making it suitable for use in various environments.
The valve is equipped with a built-in thermal protector that prevents the motor from burning, ensuring a long service life.
The valve provides a 4-20mA analog standard signal, contact signal, and resistance output feedback, enabling users to monitor the system easily.
| Technical Parameter | Value |
|---|---|
| Control Signal | 4-20 MA |
| Nominal Diameter | DN15~DN600 |
| Valve Type | Control Valve |
| Connection Type | Flange Type, Internal Thread, Welded |
| Connections | Flanged |
| Lining | PFA, Translucent, Melt Processed |
| Material | Nodular Ductile Iron, Heat Treated |
| Inherent Characteristics | Linear |
| Nominal Pressure | PN1.6~42MPa ANSI 150~2500LB |
| Temperature Range | −196 To 400°C |

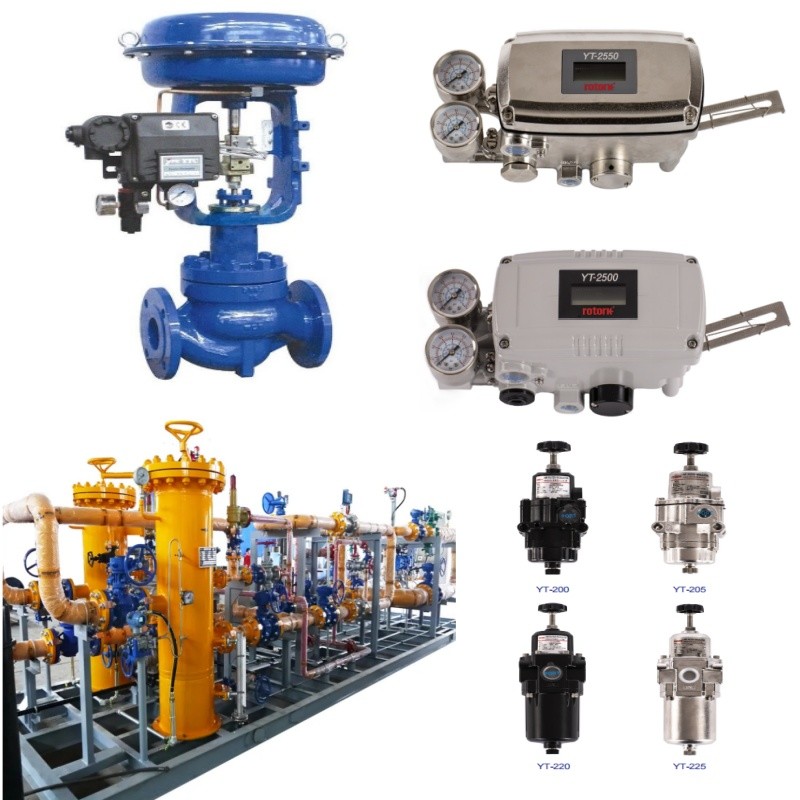

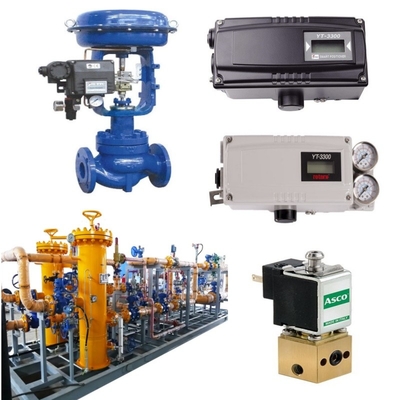

| Valve Positioner | Rotoc YTC YT-1000 YT2500 YT-3300 |
AZBIL valves are utilized in a multitude of industrial areas, ranging from the petrochemical sector to other fields.
In the petrochemical industry, these valves are necessary for regulating the flow and pressure of fluids and gases.
The coal chemical industry relies heavily on AZBIL valves for efficient gas treatment and transport.
AZBIL valves are also crucial in the electric power industry, where they ensure the smooth operation of power generation and transmission systems.
In addition to these sectors, AZBIL valves play a significant role in other industrial applications like air conditioning and water treatment equipment.
Our Pneumatic Control Valve product comes with a variety of technical support and services to ensure optimal performance and customer satisfaction. These include:
Our team of experts is dedicated to providing the highest level of support and service to our customers.
