A Pneumatic Control Valve is an essential component in various industrial processes, ensuring precise control over the flow of fluids or gases. Among the diverse range of pneumatic control valves available in the market, the Short Pattern Pneumatic Control Valves stand out for their efficiency and reliability.
Featuring a Short Pattern body design, these control valves offer a compact and space-saving solution for control applications. The design is optimized for efficient flow control while minimizing the overall footprint of the valve assembly, making it suitable for installations where space is limited.
Available in a wide range of sizes from DN 25 to 600 (NPS 1 to 24), Short Pattern Pneumatic Control Valves cater to various piping systems and flow requirements. Whether it's a small-scale operation or an industrial process demanding high flow rates, these valves can be sized accordingly to meet specific application needs.
One of the key attributes of Short Pattern Pneumatic Control Valves is their flexibility in opening angles. Ranging from 24° to 100°, these valves can be adjusted to achieve the desired flow control precision. This feature is particularly crucial in applications where precise regulation of fluid or gas flow is essential for operational efficiency.
When it comes to volume capacity, these control valves offer Standard Flow performance, ensuring consistent and reliable operation across various flow rates. Whether it's maintaining a steady flow or modulating the flow based on process requirements, these valves deliver optimal control and performance.
Equipped with a size range from 1/2" to 24", Short Pattern Pneumatic Control Valves offer versatility in installation and compatibility with different piping systems. From smaller process lines to larger industrial setups, these valves can be seamlessly integrated into existing systems with ease.
Short Pattern Pneumatic Control Valves are commonly used in conjunction with Pneumatic Control Valve Positioners to achieve precise and accurate control over the valve position. By utilizing a pneumatic control valve positioner, operators can fine-tune the valve's position based on the process conditions, ensuring optimal performance and efficiency.
In addition to control valve positioners, these valves can also be paired with Pressure Regulators to maintain the desired pressure levels within the system. Pressure regulation is critical in various industrial processes to ensure consistent operation and protect downstream equipment from pressure fluctuations.
Overall, Short Pattern Pneumatic Control Valves offer a reliable and efficient solution for fluid and gas flow control applications. With their compact design, versatile sizing options, adjustable opening angles, and compatibility with control valve positioners and pressure regulators, these valves are well-suited for a wide range of industrial processes requiring precise control and reliable performance.
| Pmo | 14.6 Bar G |
| Opening Angles | 24° To 100° |
| Material | Alloy/Steel |
| Inherent Characteristics | Linear |
| Maximum Voltage | 30.0 VDC |
| Sizes | DN 25 To 600 NPS 1 To 24 |
| Attachment | Pipe Or Wall Mounting |
| Product | Positioner |
| Safety Certifications | NIL |
| Body Design | Short Pattern |

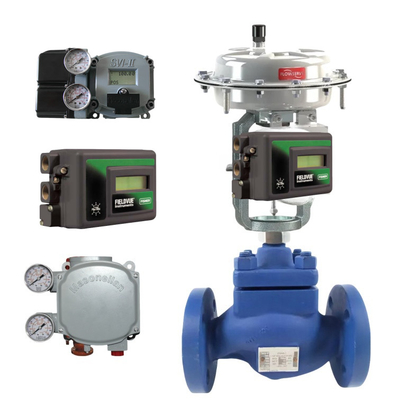

When it comes to pneumatic control valves, the MASONEILAN SVI1000/SVI2/SVI3 series is a top choice for a wide range of application occasions and scenarios. Designed with precision and reliability in mind, these valves are suitable for various industries and processes.
Valve positioner Samson enthusiasts will appreciate the quality and performance offered by the MASONEILAN brand. With a minimum order quantity of 1, these control valves are accessible for both small and large-scale operations. Priced competitively between 1000USD to 2000USD, the SVI series offers exceptional value for money.
Whether you require individual units or bulk orders, the packaging details in wooden boxes or carton boxes ensure safe transportation and handling. With a delivery time of just 2 weeks, you can count on prompt fulfillment of your orders. Payment terms are flexible, with T/T accepted for convenience.
With a supply ability of 600 sets per month, MASONEILAN ensures that your demand for these pneumatic control valves is consistently met. While safety certifications are currently not available, rest assured that the design of these valves, featuring a short pattern body design, is engineered for reliability and performance.
The SVI series offers standard flow volume capacity, making it suitable for a wide range of flow control applications. The opening angles ranging from 24° to 100° provide flexibility in valve positioning and control. Additionally, with a maximum voltage of 30.0 VDC, these valves are equipped to handle varying voltage requirements.
Product Customization Services for Pneumatic Control Valves:
Brand Name: MASONEILAN
Model Number: SVI1000/SVI2/SVI3
Minimum Order Quantity: 1
Price: 1000USD~2000USD
Packaging Details: Wooden Box/Carton Box
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 600Sets/Month
Volume Capacity: Standard Flow
Pmo: 14.6 Bar G
Torque: 34~13500Nm
Size: 1/2" - 24"
Positioner Type: Electro-Pneumatic, Pneumatic
