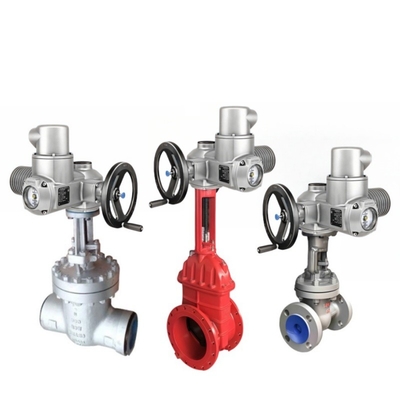

Auma SA Electric Actuator

• High-Precision Control
  The proportional controller continuously compares command signals with feedback signals to achieve precise valve positioning, with a sensitivity ≤1% and nonlinearity error ±1%. The ACV.2 intelligent control unit supports variable-speed adjustment, dynamically optimizing operating speed to reduce mechanical wear.
• Wide Torque Range
  With a torque range of 10-32,000 Nm, it meets the driving requirements of valves of various specifications. Optional gearboxes expand application scenarios. The motor uses a three-phase squirrel-cage asynchronous motor with Class F insulation, featuring high starting torque and low inertia.
• Intelligent Diagnostics & Communication
  Integrated with communication protocols such as Profinet and MODBUS, it supports remote monitoring and data analysis. Fault early warning detects anomalies in advance, reducing downtime. The ACV.2 unit also enables synchronous operation of two actuators for complex system coordination.
• Robust Design
  The enclosure offers IP67 protection (IP68 optional) and corrosion resistance up to C5-M/C5-I standards, suitable for extreme environments from -30°C to +70°C. The worm gear drive mechanism features self-locking to prevent coasting, extending service life.
• Modular & Flexible
  Built on a unified modular design, it allows quick replacement of control units or functional upgrades. The motor-integrated control unit AUMA MATIC includes a local control panel, supports local/remote switching, and provides multiple interface configuration options.

• Power Industry: Boiler feedwater control, flue gas desulfurization systems, steam valve regulation, especially for precise control in high-temperature and high-pressure environments.
• Petrochemical: Crude oil pipeline transportation, reactor feed control, emergency shutdown valves. Explosion-proof design ensures safe operation in hazardous areas.
• Wastewater Treatment: Regulating sewage flow and controlling aeration systems. IP67 protection effectively resists moisture and corrosive media.
• General Industry: Valve automation in building materials, metallurgy, textiles, etc. Modular design enables quick adaptation to different processes.
