Original Fisher DVC6200 Valve Positioner Controller Corrosion Resistant Straight Through Single Seat Control Valve

1
MOQ
US $1500.00 - 1800.00/ Set
Price
Original Fisher DVC6200 Valve Positioner Controller Corrosion Resistant Straight Through Single Seat Control Valve
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: China Quick-Change Single-Seat Pneumatic Control Valve
Temperature Of Media: Low Temperature, High Temperature, Other
Media: Multiple Media
Operational Pressure Range: Customized
Nominal Pressure: Class150;PN10,16,20,25
Connection Types: Flange Type: RF, FM
Advantages: Good Corrosion Resistance, Long Service Life
Basic Infomation
Place of Origin: China
Brand Name: China WUZHONG
Model Number: customized
Payment & Shipping Terms
Delivery Time: 90 work days
Payment Terms: T/T
Product Description

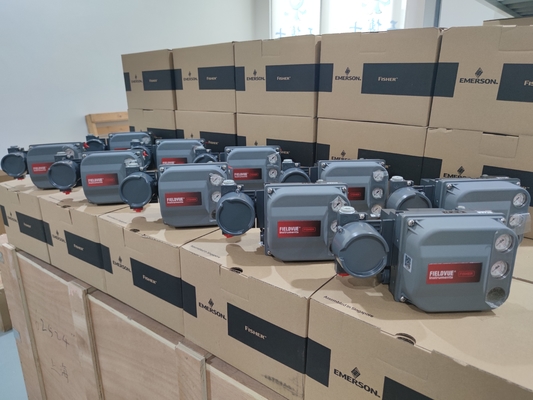

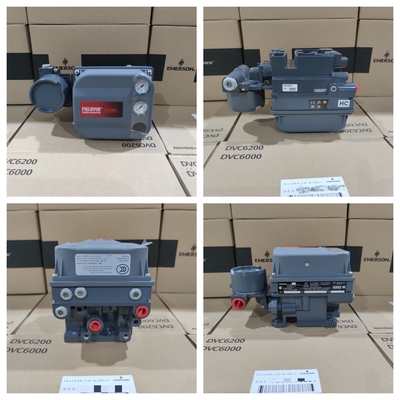

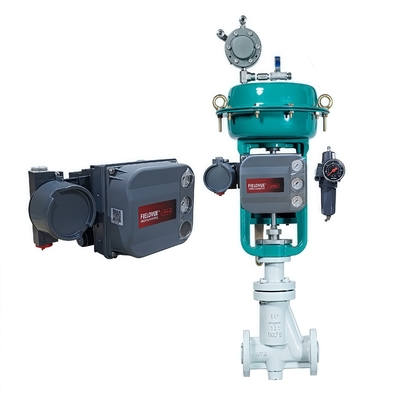

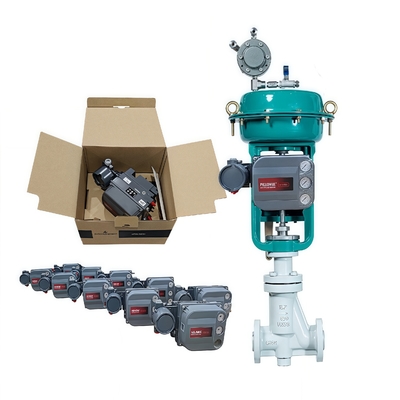

Fisher DVC6200 Valve Positioner: Precise Control, Reliable Operation

Product Introduction​

The Fisher DVC6200 valve positioner, as an intelligent digital valve controller, uses a microprocessor as its core. It can accurately convert a 4 - 20mA input current signal into a pneumatic output signal, thereby driving the control valve actuator to achieve precise regulation of the valve opening. It integrates advanced FIELDVUE technology and combines functions such as electrical conversion, valve control, communication, and diagnosis, providing an efficient and reliable solution for valve automation control in industrial production.​

Features​

  1. High - Precision Positioning Control: It adopts an advanced two - stage positioner design. The pre - amplifier is highly sensitive to subtle changes in the input signal, and the power amplifier can accurately deliver an appropriate amount of air to the actuator, achieving high - precision valve positioning. The control accuracy can reach ±0.5%, effectively ensuring the stability of the production process and product quality.​
  1. Linkage - less Feedback System: It uses magnetic technology to achieve non - contact position feedback, avoiding direct contact between the valve stem and the positioner, reducing wear and tear of components, greatly extending the service life of the equipment, and at the same time reducing maintenance costs.​
  1. Intelligent Diagnostic Function: With FIELDVUE performance diagnostic technology, it can monitor the operating status of the valve in real - time online, evaluate its performance and reliability. It can detect potential problems in a timely manner, such as valve stroke deviation, over - limit, and cumulative over - limit, and send out alarm information, helping maintenance personnel take measures in advance, reducing equipment failure downtime, and improving production efficiency.​
  1. Easy Installation and Operation: It is equipped with a local user interface including buttons and a liquid crystal display, supporting seven languages: English, German, Italian, Spanish, French, Chinese, and Japanese. Operators can easily perform configuration, calibration, and adjustment work. In addition, its modular design allows the replacement of key working components without removing field wiring or pneumatic pipelines, making installation and maintenance more convenient.​
  1. Adapt to Harsh Environments: The fully encapsulated electronic components have excellent resistance to vibration, high temperature, and corrosive environments. The independent weather - proof terminal box effectively separates the field wiring from other areas of the instrument, ensuring stable operation in harsh industrial environments.​

Original Fisher DVC6200 Valve Positioner Controller Corrosion Resistant Straight Through Single Seat Control Valve 0

Applications​

  1. Chemical Industry: In the chemical production process, the transportation of many corrosive and dangerous chemicals is involved. The Fisher DVC6200 valve positioner can reliably regulate the flow of various chemicals in chemical pipelines, ensuring the safe and efficient transportation of chemicals and preventing safety accidents such as leaks. It is widely used in sub - fields of the chemical industry such as petrochemicals, fine chemicals, and chemical pharmaceuticals.​
  1. Oil and Gas Industry: Due to the sensitivity of oil and gas products, this industry has extremely high requirements for the accuracy and efficiency of fluid control. The DVC6200 valve positioner can ensure the safe and efficient transmission of oil and gas in all links of extraction, transportation, and processing, which is of great significance for ensuring the economic benefits of oil and gas production and reducing the negative environmental impact.​
  1. Power Industry: In the power generation process, it is necessary to accurately control the flow of media such as steam, water, and fuel. The Fisher DVC6200 valve positioner can achieve precise control of related valves, ensure the stable operation of power generation equipment, and improve energy conversion efficiency. It is suitable for various power generation scenarios such as thermal power, hydropower, and nuclear power.​
  1. Water Supply and Sewage Treatment Systems: In systems such as urban water supply and sewage treatment, it is necessary to accurately control the flow and pressure of water. This positioner can achieve precise control of water pumps, valves, and other equipment, ensure stable water supply and normal water pressure. At the same time, it helps to optimize the sewage treatment process and improve water resource utilization efficiency.
