Tissin TS900 Smart Valve Positioner with HART Protocol

1
MOQ
Negotiation
Price
Tissin TS900 Smart Valve Positioner with HART Protocol
Features Gallery Product Description Request A Quote
Features
Specifications
Seal: NBR, EPDM, FKM
Nominal Size: 1-1/2,2,2-1/2,3,4,5,6,8,10,12 Inches
Use: Saturated And Superheated Steam
Torque: 10-1000Nm
Standard Or Nonstandard: Standard
Maximum Current: 30 VDC Compliance Voltage
Power: Electric
Fluid Temperature: -196 To +565° (-320F To +1050F)
Positioner Air Supply Pressure: 1.4-6.3 Bar
External Parts: Stainless Steel 1.4571 And 1.4301
Accuracy: ±1%,±1.6%
Pressure Rating: 150 Psi
Mounting Options: Direct/Indirect
Linearity: ±0.5% F.S
Lining: Without
Highlight:

Tissin TS900 Smart Positioner

,

Smart Positioner for Industrial Control
Basic Infomation
Brand Name: Tissin
Model Number: TS900
Document: xiangjing valve&instrument ...t .pdf
Payment & Shipping Terms
Product Description

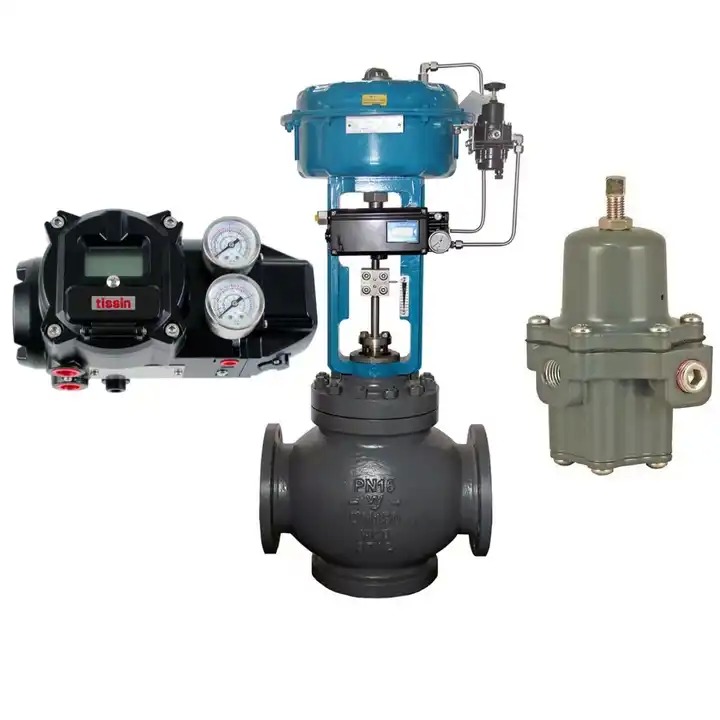

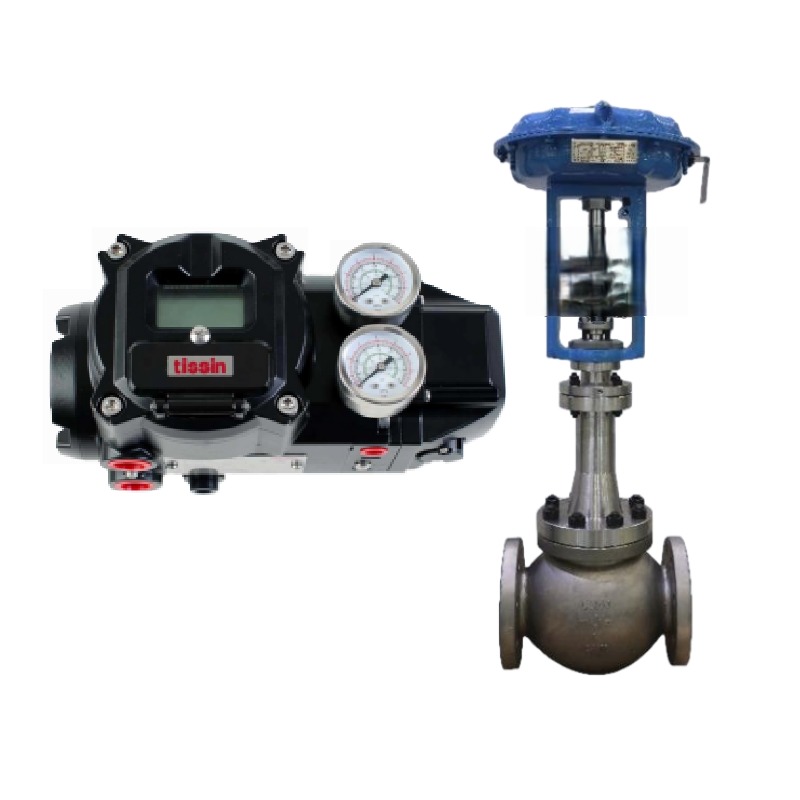

Tissin TS900 Smart Positioner with Chinese Valve for Industrial Control
Product Specifications
Attribute Value
Seal NBR, EPDM, FKM
Nominal Size 1-1/2,2,2-1/2,3,4,5,6,8,10,12 inches
Use Saturated and superheated steam
Torque 10-1000Nm
Standard Or Nonstandard Standard
Maximum Current 30 VDC Compliance Voltage
Power Electric
Fluid Temperature -196 to +565° (-320F to +1050F)
Positioner Air Supply Pressure 1.4-6.3 bar
External Parts Stainless Steel 1.4571 And 1.4301
Accuracy ±1%,±1.6%
Pressure Rating 150 psi
Mounting Options Direct/Indirect
Linearity ±0.5% F.S
Lining Without
Product Description
The Tissin TS900 is a smart valve positioner that ensures precise control of valve stroke in response to input signals. When paired with Chinese valves, it delivers high-precision flow control and reliable performance for industrial applications.
Technical Specifications
  • Input Signal: 4-20mA DC
  • Supply Pressure: 0.14-0.7MPa
  • Stroke: Linear type: 10-150mm; Rotary type: 0-90°
  • Air Connection: PT 1/4, NPT 1/4
  • Gauge Connection: PT 1/8, NPT 1/8
  • Conduit: G(PF) 1/2, NPT 1/2
  • Explosion Proof Type: Ex db IIC T5/T6
  • Degree of Protection: IP66/NEMA 4X
  • LCD and Buttons: Equipped with LCD and 4 buttons for local control
  • Calibration: Quick and easy calibration
  • PST and Alarm Function: Features PST (Partial Stroke Test) and alarm function
  • Auto/Manual Switch: Includes auto/manual switch
  • Modular Design: Modularization of internal parts for easy maintenance and replacement
  • HART Protocol: Compatibility with HART protocol for digital communication
Key Features
  • High Precision: Ensures precise control with minimal error, enhancing process stability.
  • Reliable Operation: Robust construction ensures long-term reliability in demanding industrial environments.
  • Easy Integration: Compatible with a wide range of Chinese valves, ensuring seamless integration into existing systems.
  • User-Friendly: Simple installation and calibration procedures reduce commissioning time and effort.
Applications
This combination is widely used in industries such as oil and gas, chemicals, power generation, and water treatment, providing precise flow control and enhancing operational efficiency.
