Flowserve Logix 3200MD Valve Positioner Smart Digital Valve Control

1
MOQ
US $1500.00 - 1800.00
Price
Flowserve Logix 3200MD Valve Positioner Smart Digital Valve Control
Features Gallery Product Description Request A Quote
Features
Specifications
Valve Type: Pneumatic Control Valve
Valve Positioner: Flowserve 3200MD
Flow Characteristics: Modified Equal Percentage, Linear
Operating Temperature: Low Temperature (-40F), High Temperature (250F)
Material: Carbon Steel, Stainless, Duplex, Alloy
Input Signal: 4-20mA (two-wire)
Communication: HART 5/6/7, Profibus PA (optional)
Supply Pressure: 20–100 Psi (1.4–6.9 Bar)
Highlight:

Logix 3200MD Valve Positioner

,

Smart Digital Valve Control

,

Flowserve Logix 3200MD Valve Positioner
Basic Infomation
Brand Name: Flowserve
Model Number: 3200MD
Payment & Shipping Terms
Delivery Time: 60-90 work days
Payment Terms: T/T
Product Description
Flowserve Logix 3200MD Valve Positioner – Smart Digital Valve Control
Valve type
pneumatic control valve
Valve positioner
flowserve 3200MD
Flow Characteristics
Modified equal percentage, Linear
Operating Temperature
Low Temperature (-40F), High Temperature (250F)
Material
Carbon Steel, Stainless, Duplex, Alloy
Input Signal
4-20mA (two-wire)
Communication
HART 5/6/7, Profibus PA (optional)
Supply Pressure
20–100 psi (1.4–6.9 bar)

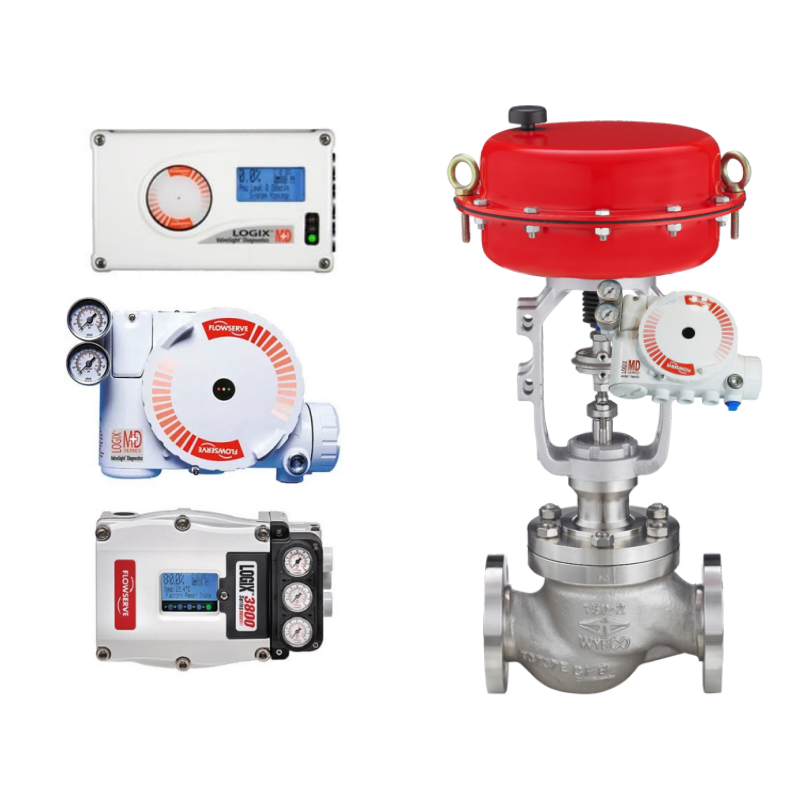

Flowserve Logix 3200MD Digital Valve Positioner

The Flowserve Logix 3200MD is a high-performance digital valve positioner designed for precise valve control in industrial automation. Leveraging advanced piezo technology and HART communication, it monitors and adjusts valve position in real time, ensuring process stability and reliability.

Supporting bidirectional remote communication and compatible with various actuators (linear/rotary, double/single-acting), it integrates intelligent diagnostics to predict potential failures in valves, actuators, and positioners, significantly reducing maintenance costs. Its compact design and wide temperature range (-40°C to 85°C) make it ideal for demanding industries such as petrochemical, power, and pharmaceuticals.

Flowserve Logix 3200MD Valve Positioner Smart Digital Valve Control 0
Key Features
High Precision & Fast Response
Positioning accuracy of ±0.25% full scale ensures precise valve control. Response time <1ms enables quick adaptation to dynamic process changes.
Intelligent Diagnostics & Predictive Maintenance
ValveSight software with FDT/DTM technology provides real-time health monitoring and over 100 fault alerts. Auto Tuning optimizes control parameters for actuator characteristics, minimizing overshoot.
Flexible Communication & Compatibility
Supports HART 5/6/7 protocols for configuration via handheld devices or PC software. Optional Profibus PA module enables seamless integration into industrial control systems.
Robust & Durable Design
IP66/IP67 protection withstands harsh environments (dust, moisture). Explosion-proof certifications (ATEX, FM) suit hazardous areas, with housing options in aluminum or stainless steel.
Easy Installation & Low Power Consumption
Powered directly by 4-20mA signal (startup current as low as 3.6mA without AO card). Configurable via local buttons, LCD display, or remote software for fast calibration.
Typical Applications
Petrochemical: Controlling crude oil and chemical valves under high-pressure conditions.
Power Generation: Optimizing steam turbine efficiency through precise valve adjustment.
Pharmaceutical & Food: Ensuring hygienic process control in sterile production lines.
Oil & Gas: Stabilizing wellhead valves in extreme temperatures (-40°C) and high-pressure environments.
Water Treatment: Automating chemical dosing for wastewater treatment optimization.
Technical Specifications
Input Signal 4-20 mA DC (HART)
Communication Protocol HART 5 / 6 / 7
Positioning Accuracy ≤0.2% linearity; ≤0.1% repeatability
Supply Pressure 20-100 psi (1.4-6.9 bar)
Response Time ≤100 ms
Auto-Calibration Yes (one-button setup)
Display Backlit LCD with local configuration buttons
Diagnostics Valve travel, pressure trends, actuator friction
Enclosure Rating IP66 / NEMA 4X
Housing Material Anodized aluminum with epoxy coating
Ambient Temperature Range -40 °C to +85 °C
Hazardous Location Approvals CSA, ATEX, IECEx (Explosion-proof & IS models)
Mounting Type Linear or rotary actuator compatible
