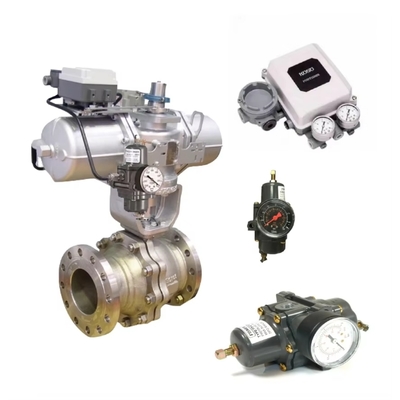

Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator

1
MOQ
Negotiation
Price
Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: KOSO EPA801 Smart Positioner Electro Pneumatic Positioner
Brand: KOSO
Model: EPA801
Matrial: Alloy/Steel
Valve Style: Positioner
Impedance: Max.500 20mA DC
Supply Pressure: 0.14~0.7Mpa
Linearity: ±0.5% F.S
Hysteresis: ±0.5% F.S
Sensitivity: ±0.2% F.S
Reapeatability: ±0.3% F.S
Highlight:

KOSO Valve Positioner Control Valve

,

EPA800 Positioner Control Valve
Basic Infomation
Brand Name: KOSO
Model Number: PPA801
Payment & Shipping Terms
Packaging Details: Export wooden boxes for foreign trade, IPPC sterilized wooden boxes and plywood boxes for export customs inspection-free. Size: 60*30*40 (cm)
Delivery Time: 4-10 weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50
Product Description
Chinese Control Valve With KTM Pneumatic Actuators AW AWN And KOSO EPA800 EPB800 EPC800 Valve Positioner And Fisher 67CFR Filter Regulator
Product Attributes
Attribute Value
Product name KOSO EPA801 smart positioner electro pneumatic positioner
Brand KOSO
Model EPA801
Material Alloy/Steel
Valve style Positioner
Impedance Max.500 20mA DC
Supply pressure 0.14~0.7Mpa
Linearity ±0.5% F.S
Hysteresis ±0.5% F.S
Sensitivity ±0.2% F.S
Repeatability ±0.3% F.S
Product Description

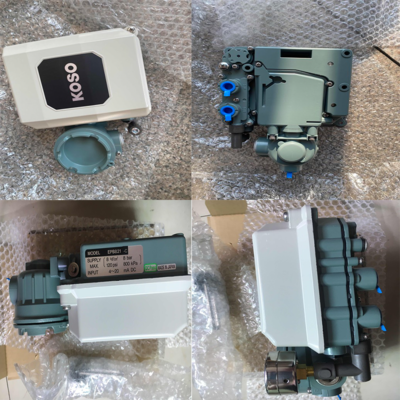

The EP800 Series Positioner, mounted on a pneumatic actuator, moves the actuator by receiving DC 4-20 mA signals from a controller. Also, the function of detecting and returning the actuator displacement provides accurate positioning in response to DC 4-20 mA signals. The EP800 can be used with both spring-return and double acting actuators.
Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 0 Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 1
Specifications
Series EP800
Model EPA801
Input signal 4～20mA analog signal or digit signal
Input impedance 250 ± 5% at 25℃
Characteristic Linear
Brand Name KOSO
Pilot valve Non-bleeding type/Single acting and double acting types are available
Air supply Output air pressure 50% Single acting type : 5Nl / min at 140 Kpa air supply Double acting type : 15Nl / min at 400 Kpa air supply
Max. capacity Capacity when output is atmospheric venting. Single acting type : 175Nl / min at 140 Kpa air supply Double acting type :400Nl / min at 400 Kpa air supply
Performance For single acting actuator Linearity 1.0% of Full stroke Hysteresis 0.5% of Full stroke Response level 0.1% of Full stroke Repeatability 0.2% of Full stroke Supply pressure effect 0.1%/10 Kpa
For double acting actuator Linearity 1.5% of Full stroke Hysteresis 0.8% of Full stroke Response level 0.2% of Full stroke Repeatability 0.3% of Full stroke Supply pressure effect 0.4%/50 Kpa
KOSO The above represents the performance of the positioner on an actuator without a valve. For the performance of the complete unit with a valve and an actuator, see KOSO STANDARD SPECIFICATION.
Air connection Rc 1/4
Wiring connection G 1/2
Ambient temperature Standard type 20-80°C High temperature service (option) 0-100°C Low temperature service (option) -50-60°C
Ambient humidity range 10-90% RH
Enclosure Weather proof type (IP65) Explosion proof type (Ex md CT6) 01171 Intrinsically safe explosion proof type (Exia CT6) 01172
Standard ancillary Auto-Manual change
Features
  • USABLE WITH LOW TO HIGH CAPACITY ACTUATORS - By adjusting the built-in capacity control spring, the positioner can be made optimum to the given actuator.
  • A LOW AIR CONSUMPTION - The pilot valve is low in air consumption and high in capacity.
  • OUTPUT CHARACTERISTICS SELECTABLE - Having a cam within the feedback construction, choices other than the standard linear characteristic are available.
  • COMPATIBLE WITH VARIOUS FEEDBACK TYPES - Applicable to the following types by simply exchanging the cam block.
  • REVERSE ACTION PILOT VALVE EASILY AVAILABLE - The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot.
  • ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE - The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient.
  • INTRINSICALLY SAFE CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS - The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with the adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location (including Class 0 area) ranging from low (-40°C) to high (60°C) temperature environment.
Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 2 Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 3 Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 4 Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 5 Chinese Control Valve With KTM PNEUMATIC ACTUATORS AW AWN And KOSO EPA800 EPB 800 EPC800 Valve Positioner And Fisher 67cfr Filter Regulator 6
