Foxboro SRD960 SRD991 SRD998 Smart Valve Controller Pneumatic Bellows Control Valve

1
MOQ
US $1820.00 - 2600.00/ Set
Price
 Foxboro SRD960 SRD991 SRD998 Smart Valve Controller Pneumatic Bellows Control Valve
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: China Pneumatic Bellows Control Valve
Nominal Diameter: DN15 ~ DN300
Nominal Pressure: PN16/25/40/63/100
Operating Temperature: -45℃~ 350℃
Valve Body Material: Cast Steel, Chromium-molybdenum Steel, Stainless Steel
Flow Characteristics: Equal Percentage, Linear, Quick-opening
Basic Infomation
Place of Origin: China
Brand Name: Foxboro
Model Number: SRD960 SRD991 SRD998
Payment & Shipping Terms
Packaging Details: Paper box + wooden box + protective packaging
Delivery Time: 70-90 work days
Payment Terms: T/T
Supply Ability: 1,000 sets per year
Product Description

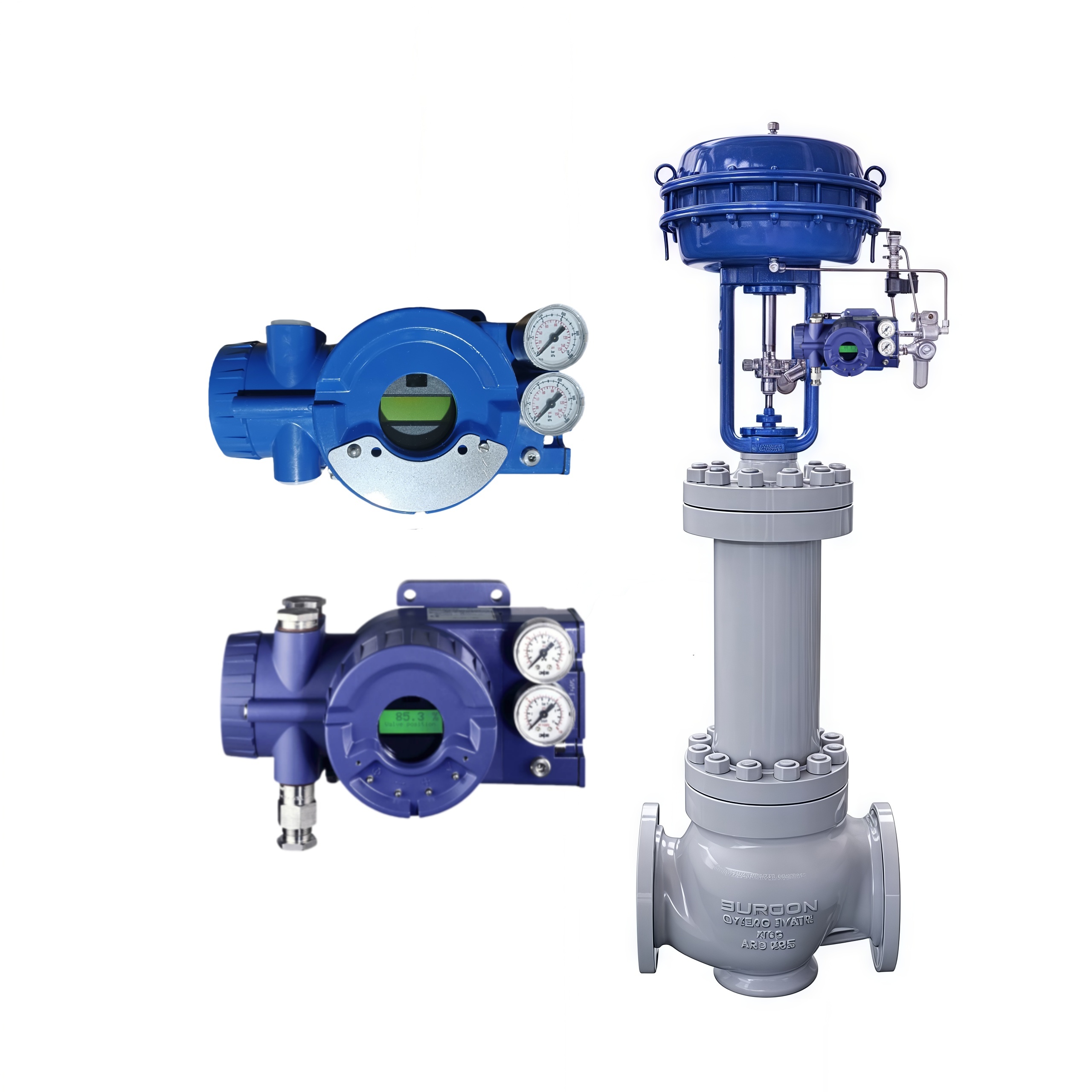

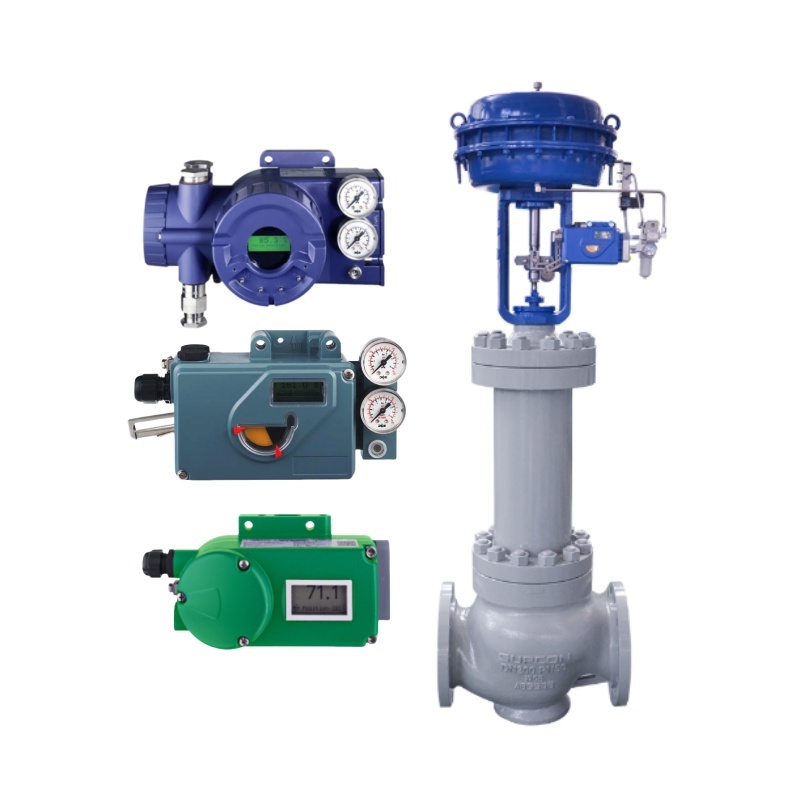

Foxboro SRD960 SRD991 SRD998 Smart Valve Controller Pneumatic Bellows Control Valve
Product Specifications
Product Name China Pneumatic Bellows Control Valve
Nominal Diameter DN15 ~ DN300
Nominal Pressure PN16/25/40/63/100
Operating Temperature -45℃~ 350℃
Valve Body Material Cast steel, chromium-molybdenum steel, stainless steel
Flow Characteristics Equal percentage, linear, quick-opening
Product Overview

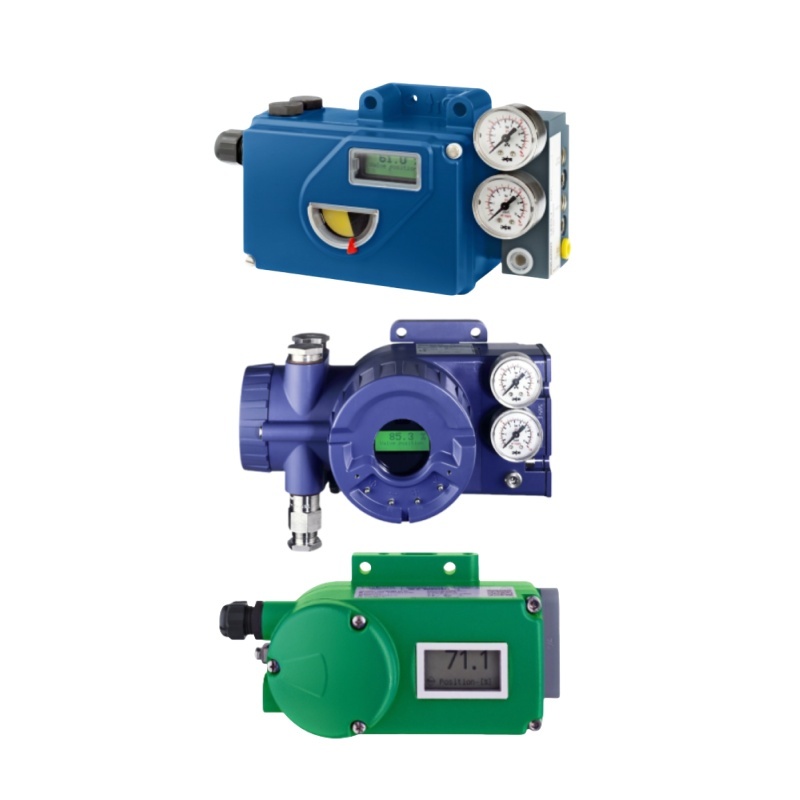

The Foxboro SRD960/SRD991/SRD998 series intelligent electro-pneumatic valve positioners are precision control devices designed for industrial automation, specifically tailored for China's pneumatic bellows-sealed control valves. These smart valve controllers integrate HART communication protocols and advanced diagnostics, supporting both single/double-acting pneumatic actuators.

With ATEX/IECEx explosion-proof certification, they deliver accurate valve stroke control (8-260mm) and angular adjustment (up to 120°), making them ideal for demanding environments in petrochemical, power, and metallurgical industries.

Key Features
  • Intelligent Diagnostics: Built-in self-calibration and predictive maintenance via VALcare™ software for real-time valve health monitoring
  • Multi-Protocol Support: Compatible with HART 7, Profibus PA, and Foundation Fieldbus digital communication standards
  • Robust Protection: IP66 enclosure (SRD998 model) for operation in -40°C to 80°C temperatures and hazardous gas environments
  • User-Friendly Interface: Large graphical LCD display (backlight available in SRD998 AD) with multi-language support
  • Energy Efficiency: Automatic air pressure regulation (1.4-10 bar) reducing energy consumption by up to 30%
Technical Parameters
Parameter SRD960 SRD991 SRD998
Input Signal 4-20mA + HART 4-20mA + HART/Profibus 4-20mA + HART 7
Output Pressure 0.2-6 bar 0.1-6 bar 0.1-10 bar
Stroke Range 8-260mm 8-260mm 8-260mm (350mm extended)
Protection Class IP65 IP65 IP66
Communication Infrared (optional) Infrared + RS485 Infrared + USB
Explosion-Proof Ex d/Ex ia Ex d ATEX/IECEx/NEPSI
Applications
  • Process Industries: Precision control of heat exchangers and reactors (e.g., SRD998 in petrochemical plants)
  • Energy Sector: Boiler feedwater regulation in thermal power stations (SRD960 implementation)
  • Hazardous Areas: Explosion-proof valve control in oil/gas gathering stations (SRD991 model)
  • Custom Solutions: Modular design for special valves including three-way and bellows-sealed types
