Home /Products/Pneumatic Control Valves/Tissin TS600 Single Acting Electro Pneumatic Valve Positioner Pneumatic Control Valve

Tissin TS600 Single Acting Electro Pneumatic Valve Positioner Pneumatic Control Valve

1
MOQ
US $690.00 - 800.00/ Set
Price
Tissin TS600 Single Acting Electro Pneumatic Valve Positioner Pneumatic Control Valve
Features Gallery Product Description Request A Quote
Features
Specifications
Input Signal: 4~20mA DC
Air Supply Interface: P(NPT) 1/4
Protection Rating: IP66
Air Consumption: Less Than 2.5 LPM (Supply Pressure = 0.14 MPa)
Input Pressure Range: 0.14-0.7 MPa
Pressure Gauge Interface: P(NPT) 1/8
Operating Temperature: -20°C To 70°C (standard Type)
Flow Rate: Greater Than 80 LPM (Supply Pressure = 0.14 MPa)
Basic Infomation
Place of Origin: South Korea
Brand Name: Tissin
Model Number: TS800
Payment & Shipping Terms

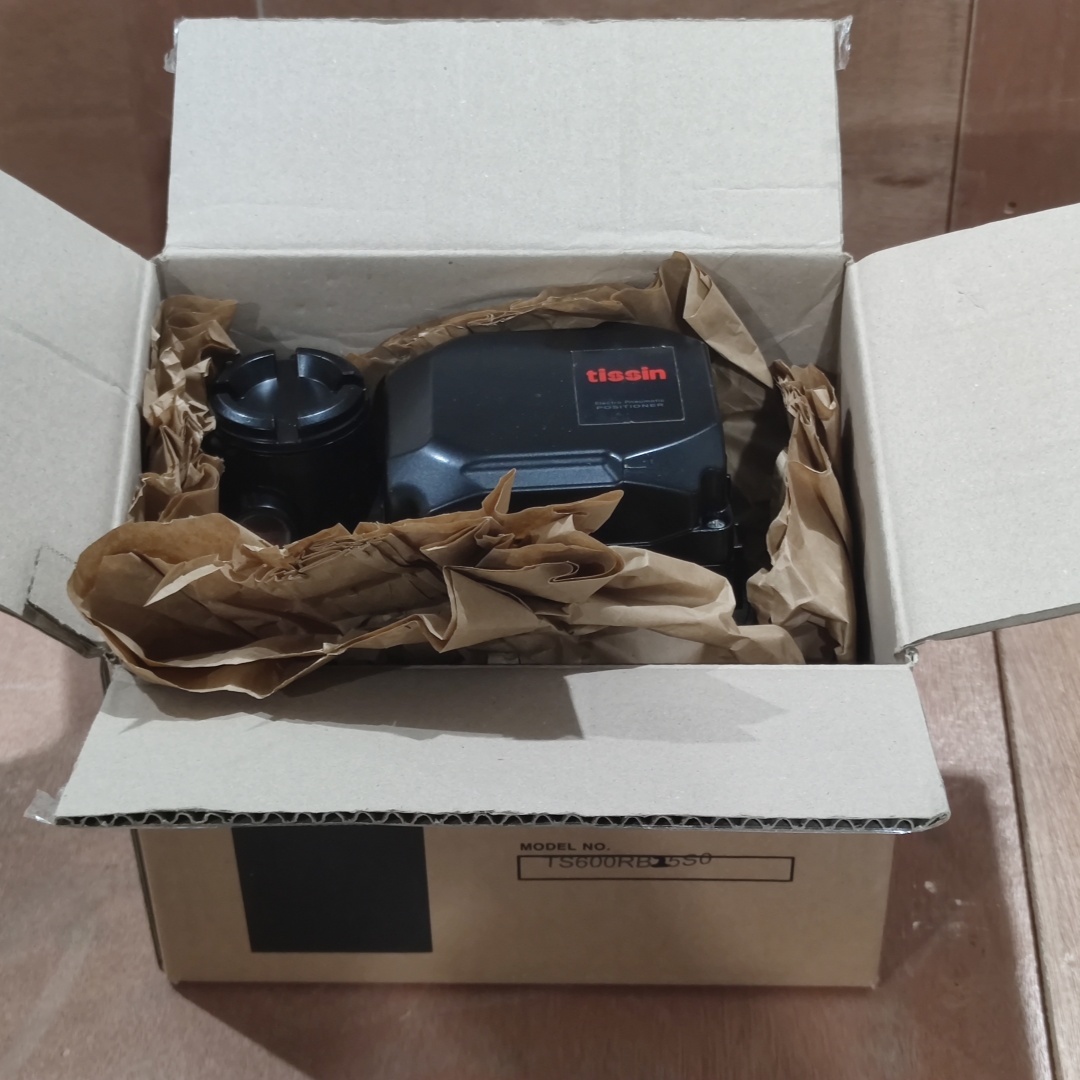

Packaging Details: Cardboard box + wooden box + protective packaging
Delivery Time: 60-90 work days
Payment Terms: T/T
Supply Ability: 1000 sets per year
Product Description

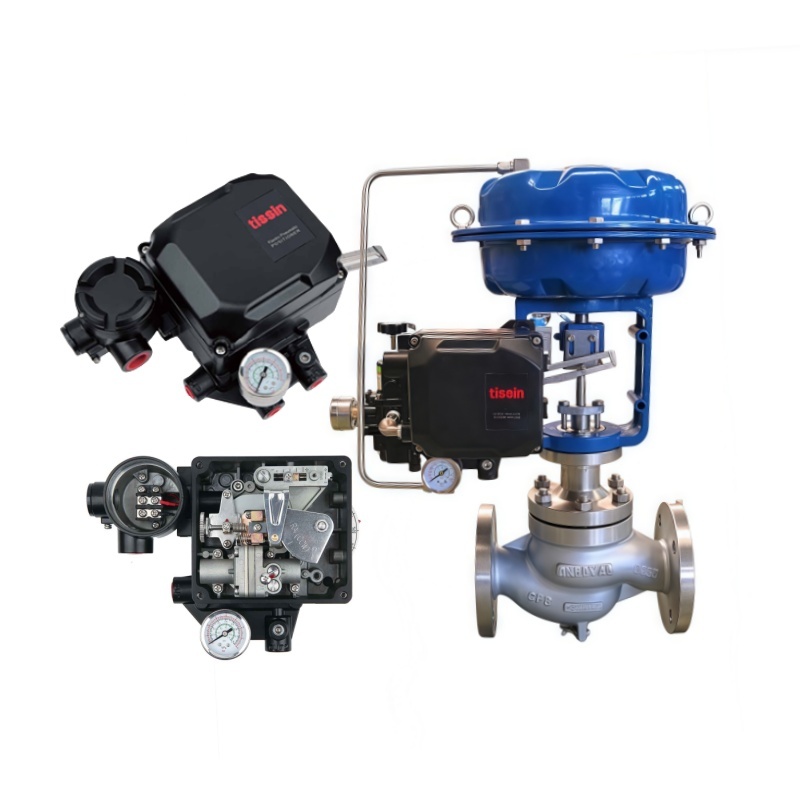

Tissin TS600 Single Acting Electro Pneumatic Valve Positioner
Tissin TS600 Single Acting Electro Pneumatic Valve Positioner Pneumatic Control Valve 0
Product Overview

The Tissin TS600 Single Acting Electro Pneumatic Valve Positioner is a precision-engineered pneumatic control valve designed for accurate flow regulation in industrial automation systems. It integrates electro-pneumatic actuation with robust construction, ensuring reliable performance in demanding environments.

Key Features
  • Single Acting Design: Optimized for spring-return mechanisms, reducing energy consumption.
  • Electro-Pneumatic Control: Converts electrical signals (4-20mA/0-10V) into precise pneumatic output.
  • High Accuracy: ±1% full-scale precision for consistent process control.
  • Durable Construction: Aluminum alloy housing with IP65 protection against dust and moisture.
  • Easy Installation: Compact design compatible with standard pneumatic valves.
Technical Specifications
Parameter Value
Model Tissin TS600
Type Single Acting Electro-Pneumatic Valve Positioner
Control Mode Electro-Pneumatic
Input Signal 4-20mA, 0-10V
Output Pressure 0.2-1.0 bar
Accuracy ±1% FS
Protection Class IP65
Material Aluminum Alloy
Temperature Range -20°C to +80°C
Input Signal 4~20mA DC
Air Supply Interface P(NPT) 1/4
Protection Rating IP66
Air Consumption < 2.5 LPM (Supply pressure = 0.14 MPa)
Input Pressure Range 0.14-0.7 MPa
Pressure Gauge Interface P(NPT) 1/8
Flow Rate > 80 LPM (Supply pressure = 0.14 MPa)
Industrial Applications
  • Petroleum and natural gas pipelines
  • Chemical processing plants
  • Power generation stations
  • Water treatment facilities
  • HVAC systems
