TS300 Air Filter Regulator Tissin TS800 Intelligent Valve Controller TS600 Electro-pneumatic Valve Positioner

1
MOQ
US $680.00 - 800.00/ Set
Price
TS300 Air Filter Regulator Tissin TS800 Intelligent Valve Controller TS600 Electro-pneumatic Valve Positioner
Features Gallery Product Description Request A Quote
Features
Specifications
Input Signal: 4~20mA DC
Air Supply Interface: P(NPT) 1/4
Protection Rating: IP66
Air Consumption: Less Than 2.5 LPM (Supply Pressure = 0.14 MPa)
Input Pressure Range: 0.14-0.7 MPa
Pressure Gauge Interface: P(NPT) 1/8
Operating Temperature: -20°C To 70°C (standard Type)
Flow Rate: Greater Than 80 LPM (Supply Pressure = 0.14 MPa)
Basic Infomation
Place of Origin: South Korea
Brand Name: Tissin
Model Number: TS800
Payment & Shipping Terms

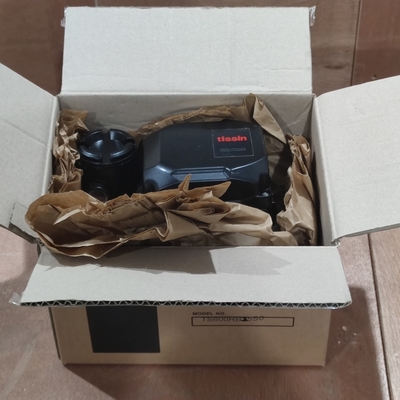

Packaging Details: Cardboard box + wooden box + protective packaging
Delivery Time: 60-90 work days
Payment Terms: T/T
Supply Ability: 1000 sets per year
Product Description
TS300 Air Filter Regulator with TS800 Intelligent Valve Controller and TS600 Electro-pneumatic Valve Positioner
Product Attributes
Attribute Value
Input signal 4~20mA DC
Air supply interface P(NPT) 1/4
Protection rating IP66
Air consumption Less than 2.5 LPM (Supply pressure = 0.14 MPa)
Input pressure range 0.14-0.7 MPa
Pressure gauge interface P(NPT) 1/8
Operating temperature -20°C to 70°C (standard type)
Flow rate Greater than 80 LPM (Supply pressure = 0.14 MPa)
Product Overview

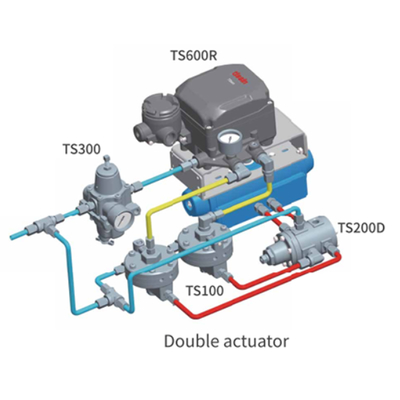

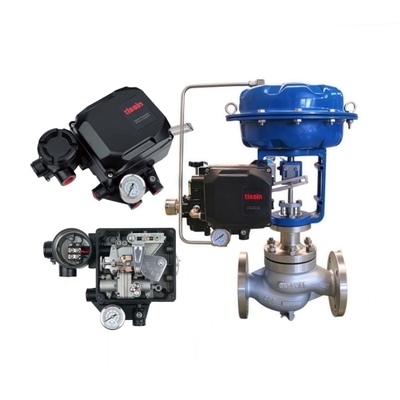

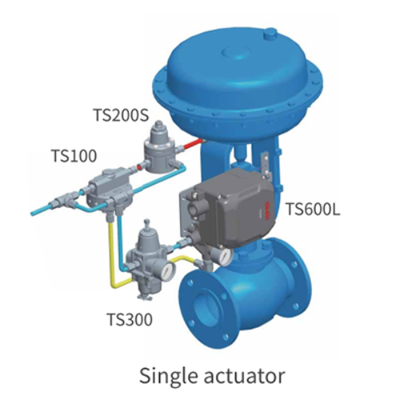

The Tissin TS600 (Customized) Electro-Pneumatic Valve Positioner, paired with TS300 Air Filter Regulator and TS800 Intelligent Controller, delivers advanced automation solutions. It supports HART communication and intelligent PID control for complex industrial applications.

TS300 Air Filter Regulator Tissin TS800 Intelligent Valve Controller TS600 Electro-pneumatic Valve Positioner 0
Key Features
  • Intelligent PID Control: Adaptive tuning for dynamic process optimization.
  • HART Protocol: Enables digital communication for remote diagnostics.
  • Customizable Design: Stainless steel construction for corrosive environments.
  • High Precision: ±0.5% FS accuracy under varying conditions.
  • Wide Temperature Range: Operates from -30°C to +100°C.
Technical Specifications
Parameter Value
Model Tissin TS600 (Customized)
Type Electro-Pneumatic Valve Positioner
Control Mode Intelligent PID
Input Signal HART, 4-20mA
Output Pressure 0.3-1.4 bar
Accuracy ±0.5% FS
Protection Class IP66
Material Stainless Steel
Temperature Range -30°C to +100°C
Industrial Applications
Automated manufacturing lines Pharmaceutical production Food and beverage processing Marine and offshore systems Environmental monitoring
