Endress Hauser Proline Promag W Electromagnetic Flow Meter E+H Promag P Food Industry Hygienic Magnetic Flow Eeter

1
MOQ
US $650.00 - 1250.00/ Set
Price
Endress Hauser Proline Promag W Electromagnetic Flow Meter E+H Promag P Food Industry Hygienic Magnetic Flow Eeter
Features Gallery Product Description Request A Quote
Features
Specifications
Accuracy: ±0.5 %
Measurement Range: 4 Dm³/min To 9600 M³/h
Medium: Oil, Water, Air, Gas
Max. Process Pressure: PN 40, Class 300, 20K
Connectivity: Flange
Type: Electromagnetic Meters
Highlight:

Promag W Electromagnetic Flow Meter

,

Hygienic Magnetic Flow Eeter

,

E+H Promag W Electromagnetic Flow Meter
Basic Infomation
Place of Origin: China
Brand Name: Endress+Hauser
Model Number: customized
Payment & Shipping Terms
Packaging Details: Carton + Wooden Case + Protection
Delivery Time: 90 working days
Payment Terms: T/T
Supply Ability: 1000 units per year
Product Description

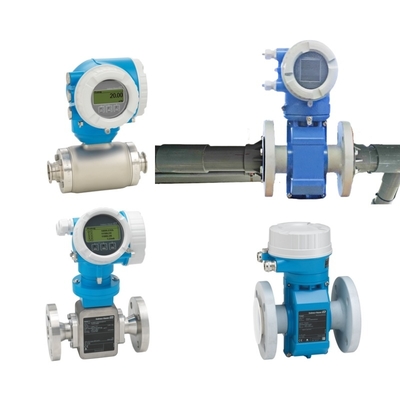

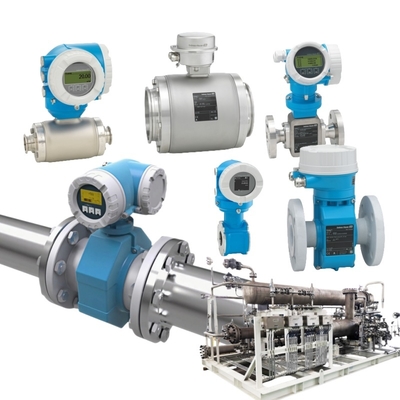

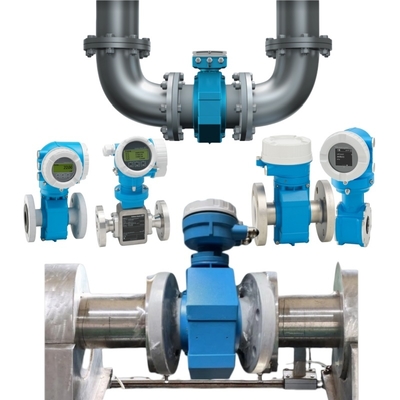

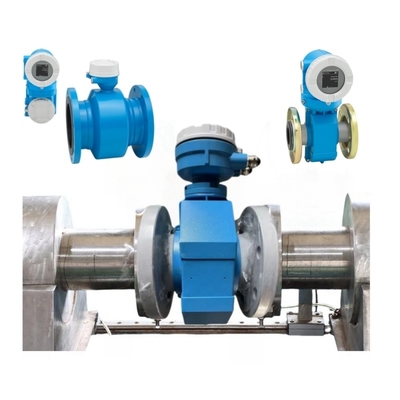

Endress Hauser Proline Promag W Electromagnetic Flow Meter
Product Attributes
Attribute Value
Accuracy ±0.5 %
Measurement Range 4 dm³/min to 9600 m³/h
Medium Oil, Water, Air, Gas
Max. process pressure PN 40, Class 300, 20K
Connectivity Flange
Type Electromagnetic meters

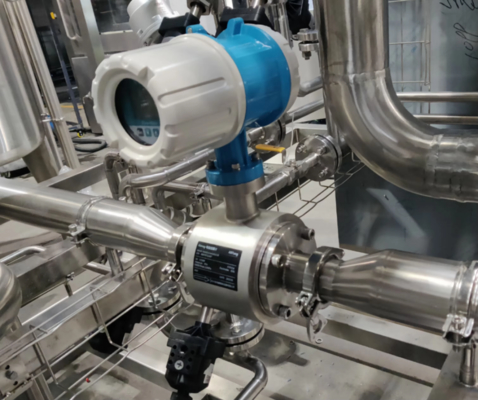

E+H Promag P Food Industry Hygienic Magnetic Flow Meter
Product Overview

The Endress+Hauser Proline Promag P series is a sanitary electromagnetic flowmeter tailored for hygienic applications in the food, beverage, and life sciences industries. Featuring a compact design and FDA-approved materials, it delivers precise flow measurement for liquids like dairy, juice, and pharmaceutical solutions. Its robust construction withstands CIP/SIP cleaning and high-temperature sterilization.

Key Features
  • Sanitary Compliance: 3-A, EHEDG, and FDA certifications.
  • High Temperature Resistance: Up to +150°C with PFA liners.
  • Multi-Variable Measurement: Simultaneous flow, temperature, and conductivity monitoring.
  • Plug-and-Play Installation: Pre-calibrated sensors with quick-connect flanges.
  • Data Integrity: Heartbeat Technology for automated verification.
Technical Parameters
Parameter Specification
Flow Range 0.06 dm³/min to 600 m³/h
Accuracy ±0.2% o.r. ±2 mm/s
Temperature Range -20°C to +150°C
Pressure Rating PN 40, Class 150
Liner Materials PFA (perfluorinated)
Electrode Options Platinum, Tantalum
Communication PROFIBUS, Ethernet/IP, WirelessHART
Applications
  • Dairy processing and beverage bottling.
  • Pharmaceutical batch production and CIP systems.
  • Food ingredient dosing and quality control.
  • Hygenic water recycling in biotech facilities.
