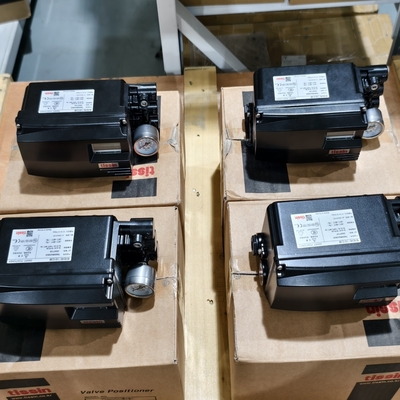

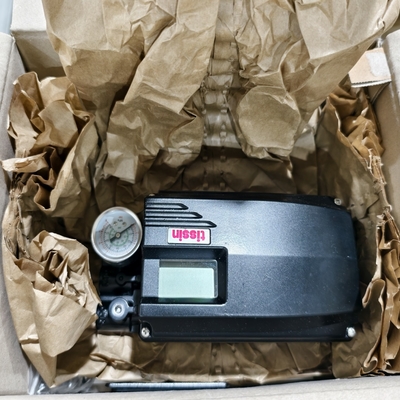

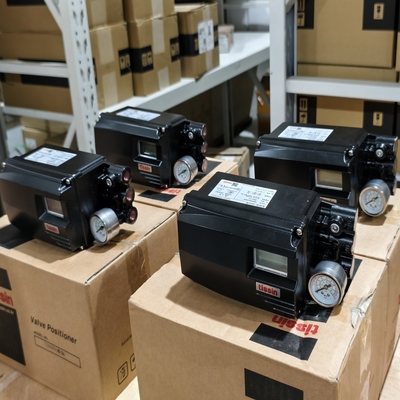

Tissin TS800/TS805 Smart Intelligent Valve Positioner

Product Overview

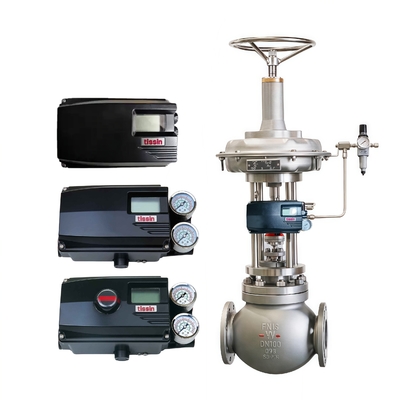

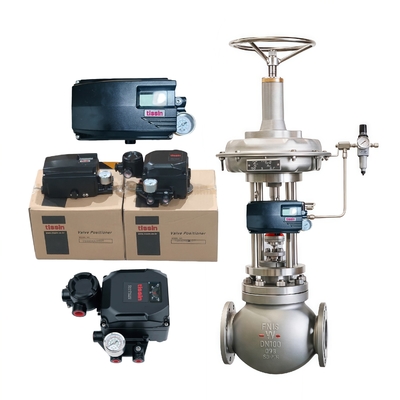

The Tissin TS800/TS805 series are advanced smart valve positioners designed for precise control of pneumatic actuators in industrial automation. Supporting 4-20mA signals and HART communication, these devices offer customizable configuration for rotary/linear valves. Paired with Tissin’s pneumatic control valves, they deliver reliable performance in harsh environments. The TS805 adds electro-pneumatic functionality for integrated digital-to-pneumatic conversion.

Key Features

1. Smart Control
   • HART 7 protocol for remote diagnostics and calibration.
   • Compatible with AMS Valvelink and DCS systems.
2. Precision & Durability
   • Non-contacting feedback system (TS800) for wear-free operation.
   • IP66/NEMA 4X rating withstands vibration, moisture, and corrosion.
3. Flexibility
   • Supports single/double-acting actuators.
   • Customizable stroke range and damping filters.
4. Economic Efficiency
   • Low air consumption (TS805: 0.15 Nm³/h).
   • Self-diagnostics reduce maintenance costs.

Technical Specifications

Applications

• Industries: Oil & gas, chemical processing, power generation.
• Processes: Flow/pressure control, throttling, and emergency shutdown.
• Environments: Explosive atmospheres, marine installations, remote facilities.
