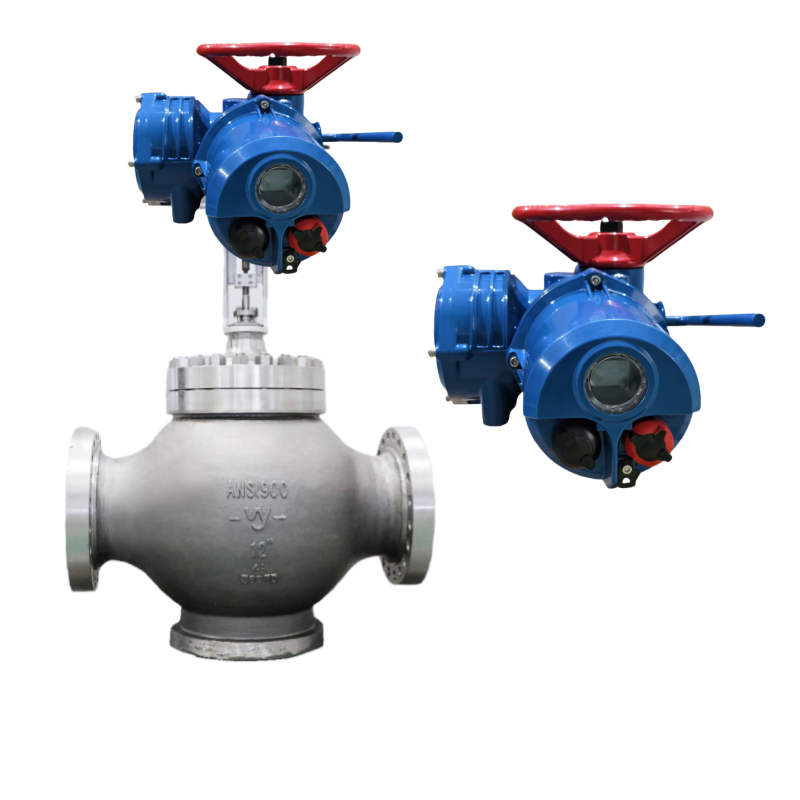

PWMON Series Aluminum Alloy Electric Actuator IP68 NEMA 6P

1
MOQ
1900 USD
Price
PWMON Series Aluminum Alloy Electric Actuator IP68 NEMA 6P
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: Standard 3-phase 380 V / Optional 24 V Or 110–240 V AC/DC
Protection Grade: IP68 / NEMA 6P (dust-tight And Submersible)
Type: Multi-turn Electric Actuator
Model: PWMON Series
Ingress: Anti-corrosive, Waterproof, Dust-proof Housing
Power Consumption: Standby ≤ 15 W
Shell Material: Aluminum Alloy Housing With Anti-corrosion Coating
Safety Features: Overload Protection, Emergency Stop, Thermal Protection
Highlight:

aluminum alloy electric actuator

,

IP68 waterproof electric actuator

,

NEMA 6P electric actuator
Basic Infomation
Place of Origin: Germany
Brand Name: Peckwomy
Certification: COC
Model Number: PWMON100
Document: xiangjing valve&instrument ...t .pdf
Payment & Shipping Terms
Packaging Details: 50X50X30 Cm
Delivery Time: 2 Weeks
Payment Terms: 100% In Advance
Supply Ability: 300pcs In Stock
Product Description
Germany Brand Peckwomy PWMON Series Aluminum Alloy Housing With Anti-corrosion Coating Economical Electric Actuator
Product Attributes
Attribute Value
Power Supply Standard 3-phase 380 V / Optional 24 V Or 110–240 V AC/DC
Protection Grade IP68 / NEMA 6P (dust-tight And Submersible)
Type Multi-turn Electric Actuator
Model PWMON Series
Ingress Anti-corrosive, Waterproof, Dust-proof Housing
Power Consumption Standby ≤ 15 W
Shell Material Aluminum Alloy Housing With Anti-corrosion Coating
Safety Features Overload Protection, Emergency Stop, Thermal Protection
Product Description
The PWMON Series electric actuator features a durable aluminum alloy housing with anti-corrosion coating, designed for reliable performance in demanding industrial environments. With IP68/NEMA 6P protection, it's dust-tight and submersible, ensuring operation in harsh conditions.
Key Features
  • Standard 3-phase 380V power supply with optional 24V or 110–240V AC/DC alternatives
  • IP68/NEMA 6P protection grade for dust-tight and submersible operation
  • Aluminum alloy housing with specialized anti-corrosion coating
  • Low power consumption (≤15W standby)
  • Comprehensive safety features including overload protection and emergency stop
  • Wide operating temperature range: –30°C to +70°C (some models up to +80°C)
  • Precision control with ±1% torque accuracy and position feedback
Technical Parameters
Position Feedback Standard Mechanical + Electronic Signal Output
Model PWMON Series
Shell Material Aluminum Alloy Housing With Anti-corrosion Coating
Power Consumption Standby ≤ 15 W
Temperature Range –30°C To +70°C (some Models Support Up To +80°C)
Communication Protocols Modbus RTU / TCP, HART (optional)
Torque Range 30 Nm – 3000 Nm (customizable)
Safety Features Overload Protection, Emergency Stop, Thermal Protection
Control Accuracy ±1% Torque Precision, Position Feedback Supported
Ingress Protection Anti-corrosive, Waterproof, Dust-proof Housing
Applications
The PWMON Series electric actuators are ideal for industrial valve control applications requiring reliable performance in demanding environments. Their waterproof and dust-proof design makes them suitable for both indoor and outdoor installations, while the comprehensive safety features ensure secure operation in critical processes. These actuators are commonly used in pipeline systems, water treatment plants, and industrial automation where precise valve control is essential.
