E+H Deltabar PMD75 Liquid Gas Measurement Endress Hauser Differential Pressure Transmitter Piezoresistive Metal Sensor

1
MOQ
US $1200.00 - 2500.00/ Units
Price
E+H Deltabar PMD75 Liquid Gas Measurement Endress Hauser Differential Pressure Transmitter Piezoresistive Metal Sensor
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Process Temperature(Standard): -40 To +125 °C (-40 To +257 °F)
Process Connections: Threaded, Flange, Hygienic, Remote Seal
Applications: Hygienic, Chemical, And Oil & Gas Applications
Wetted Materials: 316L Stainless Steel, Alloy C, Tantalum (optional)
Output Signal: 4 To 20 MA With HART
Highlight:

E+H Deltabar PMD75 differential pressure transmitter

,

Endress Hauser piezoresistive metal sensor

,

liquid gas measurement industrial instrument
Basic Infomation
Brand Name: Endress+Hauser
Model Number: Deltabar PMD75
Document: xiangjing valve&instrument ...t .pdf
Payment & Shipping Terms
Packaging Details: Wooden Box + Protection
Delivery Time: 60-90 work days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description

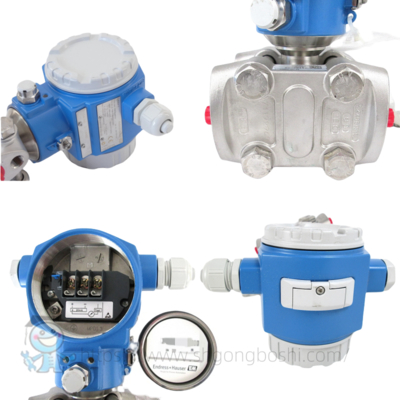

Endress+Hauser Deltabar PMD75 Liquid & Gas Measurement Solution

Product Overview

The Endress+Hauser Deltabar PMD75 is a cutting-edge differential pressure transmitter featuring a piezoresistive metal sensor. Designed for precise measurement of liquids, gases, and vapors, this device combines advanced technology with robust construction to deliver exceptional performance in industrial environments. It supports both 4-20mA HART communication and digital fieldbuses like PROFIBUS PA and FOUNDATION Fieldbus.

Key Features

High Precision: 0.035% reference accuracy (platinum version) with 100:1 turndown ratio

Metal Sensor Technology: Welded metallic membrane ensures durability in harsh conditions

Smart Diagnostics: Heartbeat Technology enables self-monitoring and verification

SIL3 Safety: Certified for functional safety applications per IEC 61508

Easy Operation: 3-button interface with HistoROM data management

Modular Design: Separable sensor/electronics for cost-effective maintenance

Technical Specifications

Parameter Specification
Measurement Range 10 mbar - 250 bar (0.15 psi - 3750 psi)
Accuracy Standard: 0.05%, Platinum: 0.035%
Long-term Stability 0.05% URL/year
Process Temperature -40°C to +120°C (-40°F to +248°F)
Ambient Temperature -40°C to +85°C (-40°F to +185°F)
Max. Overpressure 420 bar (6300 psi)
Communication HART, PROFIBUS PA, FOUNDATION Fieldbus
Safety Certification SIL3 (IEC 61508), ATEX, FM, CSA

Applications

Flow Measurement: Gas/vapor/liquid volume & mass flow via differential pressure

Level Control: Liquid level, volume, and mass monitoring

Process Monitoring: Filter/pump differential pressure surveillance

Safety Systems: SIL3-rated applications in chemical/petrochemical plants

Energy Management: Steam/gas flow measurement in power generation
