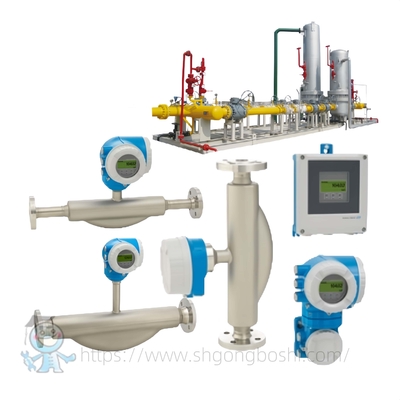

Endress+Hauser Proline Promass F 300/F 500 Coriolis Mass Flow Meter
Product Overview
The Endress+Hauser Proline Promass F 300/F 500 series represents the pinnacle of Coriolis flow measurement technology. These multivariable transmitters provide simultaneous mass flow, density, and temperature measurements with industry-leading ±0.05% accuracy. Built for harsh environments, the F 500 model features extended temperature resistance (-196°C to +350°C) and remote transmitter capabilities, while the F 300 offers compact integration for standard industrial applications.
Key Features
Premium Accuracy: 0.05% mass flow measurement error (PremiumCal)
Multivariable Output: Simultaneous flow, density, and temperature data
HeartBeat Technology: Continuous self-diagnostics and verification
Wide Compatibility: Handles liquids, gases, and slurries regardless of viscosity
Advanced Diagnostics: Predictive maintenance through process monitoring
Hygienic Design: EHEDG and 3-A certified versions available
Flexible Communication: HART, PROFIBUS PA, FF, Modbus TCP
Technical Specifications
| Parameter |
Proline Promass F 300 |
Proline Promass F 500 |
| Accuracy |
±0.05% (mass flow) |
±0.05% (mass flow) |
| Temperature Range |
-50°C to +200°C (-58°F to +392°F) |
-196°C to +350°C (-320°F to +662°F) |
| Nominal Diameter |
DN 8 to DN 250 (³⁄₈ to 10") |
DN 8 to DN 250 (³⁄₈ to 10") |
| Pressure Rating |
Up to 400 bar (5800 psi) |
Up to 400 bar (5800 psi) |
| Housing Material |
316L Stainless Steel |
316L/Hastelloy C/Tantalum |
| Communication |
HART, PROFIBUS PA, FF |
HART, PROFIBUS PA, FF, Modbus TCP |
| Safety Certification |
SIL 2/3, ATEX, IECEx |
SIL 2/3, ATEX, IECEx, CSA |
Applications
Chemical Industry: Precise measurement of solvents, latex, and aggressive chemicals
Oil & Gas: Custody transfer of crude oil, LNG, and refined products
Food & Beverage: Hygienic measurement of edible oils and dairy products
Pharmaceuticals: Sterile process control in WFI and CIP systems
Energy Management: Steam/gas flow measurement in power plants
Marine Applications: Offshore fuel consumption monitoring
