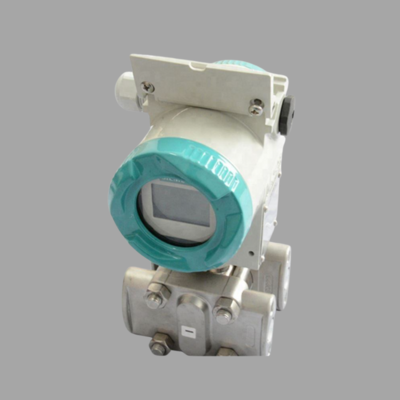

Siemens SITRANS 7MF4433-1DA02-2AB6-Z pressure transmitter, SITRANS FX330 vortex flowmeter, and valve switching device

The Siemens SITRANS P DS III series represents the pinnacle of Siemens' expertise in pressure measurement technology, and the model 7MF4433-1DA02-2AB6-Z is a specific configuration within this flagship family. This device is a high-performance, microprocessor-based differential pressure transmitter designed for extreme accuracy, unparalleled reliability, and long-term stability in the most demanding process environments. It is engineered to handle critical applications across a vast spectrum of industries, including oil and gas, chemical and petrochemical, power generation, and pharmaceutical manufacturing, where precise and dependable pressure, flow, and level measurements are non-negotiable for safety, efficiency, and quality control.

At the heart of the SITRANS P DS III lies a highly advanced ceramic capacitive sensor (for the pressure range A02, as indicated in the model number) or a metal diaphragm sensor. The specific model 7MF4433-1DA02-2AB6-Z features a ceramic measuring cell. This sensor technology is renowned for its exceptional resistance to corrosion, abrasion, and overload. The principle involves a laser-trimmed ceramic diaphragm whose capacitance changes minutely with applied pressure. This change is detected by the onboard sophisticated electronics.

The transmitter's powerful microprocessor then processes this signal, applying comprehensive temperature compensation and linearization algorithms to produce an exceptionally accurate and stable output. This advanced technology delivers several key performance advantages:

• Exceptional Accuracy: The device achieves a remarkable reference accuracy of up to ±0.055%, making it one of the most precise transmitters available on the market. This ensures that even the most minor changes in the process are detected and communicated for optimal control.

• Outstanding Long-Term Stability: The inherent robustness of the ceramic sensor and the advanced signal processing drastically minimize long-term drift. This translates to significantly longer calibration intervals, reduced maintenance needs, and a lower total cost of ownership over the instrument's lifecycle.

• High Resilience: The ceramic sensor is exceptionally resistant to dynamic pressure peaks, clogging, and aggressive media, making it ideal for challenging applications like steam flow measurement or processes with viscous or corrosive fluids.

The SITRANS P DS III is built with a focus on intelligence, safety, and user convenience. The model 7MF4433-1DA02-2AB6-Z typically includes a flange mount and a 4-20 mA HART output.

Key features include:

• Comprehensive Safety Certifications: This transmitter is designed to meet the highest safety integrity levels, achieving SIL 2 and SIL 3 certification according to IEC 61508/61511 for use in safety instrumented systems (SIS). It also carries global explosion protection certifications like ATEX, IECEx, and FM for use in hazardous areas.

• Advanced Diagnostics and Data Logging: Beyond basic measurement, the device features powerful self-diagnostics that monitor the health of the transmitter and the process, detecting issues like impulse line blockage or electronic failures. It also includes a built-in data logger capable of storing over 65,000 measured values with time stamps, which is invaluable for troubleshooting and process optimization.

• User-Friendly Interfaces: Configuration is simplified through an intuitive local interface with a plain-text, backlit LCD display and magnetic pushbuttons, allowing for safe adjustment without opening the housing. It fully supports the HART protocol for remote configuration and integration into asset management systems.

• Robust Construction: Housed in a rugged, corrosion-resistant cast aluminum or stainless steel enclosure with protection up to IP66, IP67, or IP69K, the transmitter is built to survive in harsh outdoor and wash-down environments.

• Unmatched Flexibility: With an extensive turndown ratio (up to 100:1) and a wide selection of materials, flange connections, and output options, the transmitter can be precisely tailored to fit a vast array of specific application requirements.

The Siemens SITRANS P DS III 7MF4433-1DA02-2AB6-Z is the preferred solution for critical differential pressure measurements, including:

• Precise Flow Measurement: Using primary elements like orifice plates, venturi tubes, or averaging pitot tubes.

• Liquid Level and Interface Level Measurement: in both open and closed tanks under high temperatures and pressures.

• Filter and Pump Monitoring: To indicate clogging status and prevent damage.

• Absolute and Gauge Pressure Measurement: With appropriate configuration.

In summary, the Siemens SITRANS P DS III model 7MF4433-1DA02-2AB6-Z is not merely an instrument but a cornerstone of modern industrial automation. Its blend of supreme accuracy, robust ceramic sensor technology, advanced intelligence, and highest safety certifications makes it an indispensable asset for engineers seeking to maximize process reliability, safety, and efficiency.
