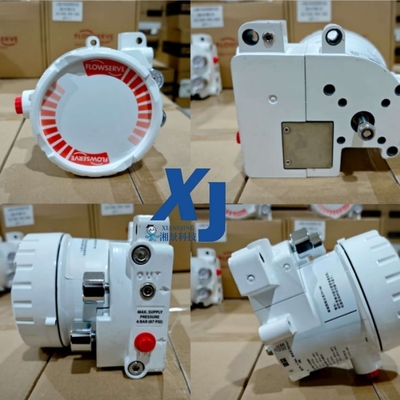

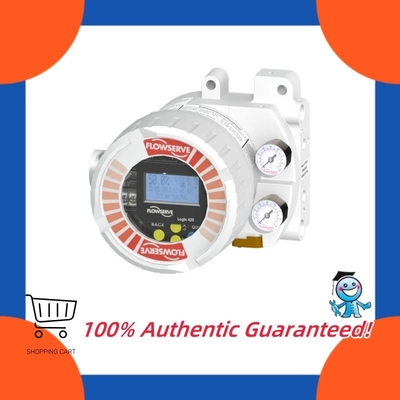

Flowserve Logix 420 Digital Positioner
Product Overview
The Flowserve Logix 420 Digital Positioner is an advanced solution for valve automation, integrating cutting-edge piezo technology and HART communication for unparalleled precision and diagnostics. Designed for process industries, this positioner offers robust performance in harsh environments, with explosion-proof and intrinsically safe certifications. Its ValveSight DTM software enables predictive diagnostics, helping operators identify issues before they disrupt operations. With easy setup and reliable operation, the Logix 420 enhances process efficiency and minimizes maintenance costs, making it a trusted choice for critical applications.
Key Features
- Piezo Technology: Delivers fast, precise valve positioning for enhanced process control.
- Predictive Diagnostics: ValveSight DTM software identifies potential valve issues, reducing downtime.
- HART 7 Integration: Enables real-time data exchange and remote monitoring for smarter operations.
- Explosion-Proof Design: Certified for hazardous areas, ensuring safety in volatile environments.
- Quick-Cal Feature: Simplifies calibration, allowing rapid setup and commissioning.
- Versatile Compatibility: Works with linear and rotary valves, including Valtek GS and FlowTop models.
- Robust Construction: IP66-rated housing withstands dust, water, and extreme temperatures.
Technical Specifications
| Parameter |
Specification |
| Input Signal |
4-20 mA HART |
| Air Supply |
1.4 to 10.3 bar (20 to 150 psig) |
| Repeatability |
±0.25% of full scale |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Protection Rating |
IP66 |
| Hazardous Area Certifications |
ATEX, FM, CSA (Explosion-Proof, Intrinsically Safe) |
| Weight |
Approx. 2.3 kg (5 lbs) |
| Material |
Aluminum with corrosion-resistant coating |
| Communication Protocol |
HART 6 or 7 |
Applications
The Flowserve Logix 420 excels in demanding industrial applications, delivering precise valve control:
- Petrochemical: Ensures accurate valve positioning in refining and processing operations.
- Power Plants: Optimizes valve performance in boiler and turbine control systems.
- Chemical Manufacturing: Supports precise flow control in chemical production processes.
- Water and Wastewater: Enhances valve operation in treatment and distribution systems.
- Mining: Provides reliable valve control in harsh mining environments.
Frequently Asked Questions
What technology powers the Flowserve Logix 420?
It uses piezo technology for precise and responsive valve positioning, paired with HART communication for advanced diagnostics.
Can the Logix 420 operate in hazardous areas?
Yes, it is certified for explosion-proof and intrinsically safe operation in hazardous environments (ATEX, FM, CSA).
How does the Logix 420 support diagnostics?
It integrates with ValveSight DTM software, providing predictive diagnostics to monitor valve health and prevent failures.
Is the Logix 420 compatible with different valve types?
Yes, it supports both linear and rotary valves, including Flowserve’s Valtek GS and FlowTop models.
How long does it take to set up the Logix 420?
The Quick-Cal feature enables rapid calibration, often completing setup in under a minute.
Contact Us
Contact our team for inquiries about the Flowserve Logix 420, pricing, or to schedule a demo:
Related Products
- Logix 3800 Digital Positioner: High-reliability positioner with advanced diagnostics for tough environments.
- Logix 520MD Series: Offers multi-variable gain tuning for precise control.
- Logix 510si Series: Single-acting positioner with easy configuration and diagnostics.
- Valtek GS Valve: Reliable general-service valve compatible with Logix 420.
