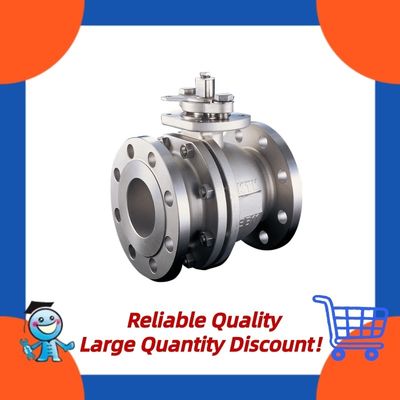

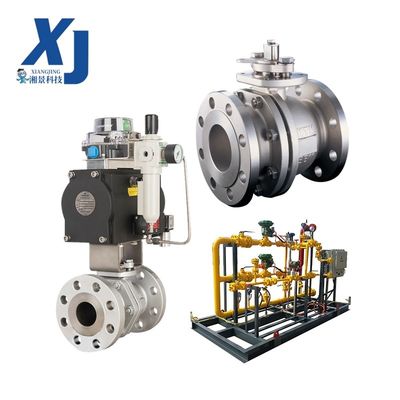

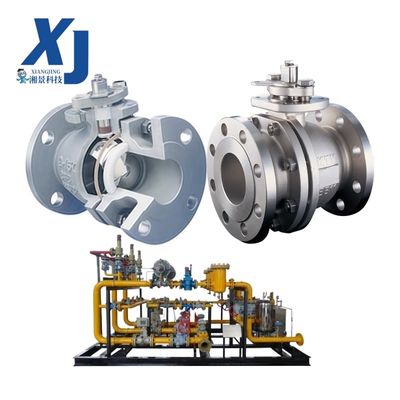

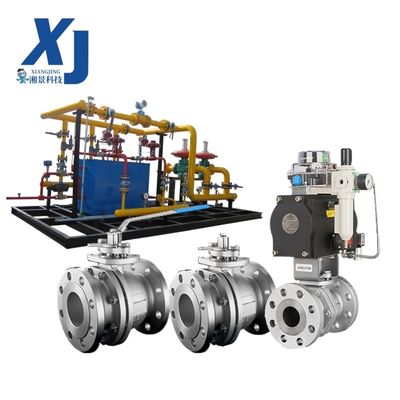

KTM Series EB1 Split Body Floating Ball Valve
Product Overview
The KTM Series EB1 Split Body Floating Ball Valve is a next-generation, high-performance valve designed for reliable flow control in demanding industrial applications. Featuring LOW-E fugitive emission certification, cavity relieving seats, and a bidirectional soft-seat design, the EB1 ensures superior shut-off and minimal emissions for flammable and non-flammable fluids. Optimized for simple automation with a modular mounting concept, this valve is ideal for chemical, petrochemical, oil and gas, and pulp and paper industries. Compliant with ISO 15848-1 and fire-safe standards, the EB1 combines robust construction with cost-effective performance.
Key Features
- LOW-E Fugitive Emission Certification: Third-party certified to ISO 15848-1 for minimal emissions.
- Bidirectional Shut-Off: Soft-seat design ensures tight sealing in both flow directions.
- Cavity Relieving Seats: Prevents pressure buildup for enhanced safety and performance.
- Simple Automation: Modular mounting for easy integration with actuators and control systems.
- Fire-Safe Construction: Meets API 607/ISO 10497 standards for fire resistance.
- High Pressure and Temperature Options: Supports a wide range of operating conditions.
- Durable Materials: Available in carbon steel, stainless steel, and exotic alloys.
- Versatile Configurations: Manual or powered actuators with optional chain wheels, limit switches, and security features.
- Low Maintenance: Robust design minimizes wear and extends service life.
Technical Specifications
| Parameter |
Specification |
| Valve Size |
DN 15 to DN 200 (NPS ½" to 8") |
| Pressure Rating |
ASME Class 150 to 600, PN 10 to 100 |
| Temperature Range |
-46°C to 400°C (-50°F to 752°F) |
| Body Materials |
Carbon steel (ASTM A216 WCB), Stainless steel (CF8M), Exotic alloys |
| Ball Materials |
Stainless steel, Chrome-plated options |
| Seat Materials |
PTFE, PFE copolymer, Metal (Metaltite) |
| End Connections |
Flanged, Threaded, Welded |
| Shut-Off Class |
API 598, Zero leakage (soft seats) |
| Certifications |
ISO 15848-1, API 607, ISO 10497, PED, SIL capable, CE |
| Actuation Options |
Manual (handle, gear), Pneumatic, Electric |
Applications
The KTM Series EB1 Ball Valve is engineered for critical flow control applications:
- Chemical and Petrochemical: Handles corrosive and hazardous fluids with low emissions.
- Oil and Gas: Ensures reliable shut-off in pipelines and processing systems.
- Pulp and Paper: Manages flow in chemical dosing and pulp processing.
- Cryogenic and LNG: Supports low-temperature applications with specialized materials.
- Oxygen Service: Safe operation with oxygen-compatible designs.
Frequently Asked Questions
What is the LOW-E fugitive emission certification?
It’s a third-party certification to ISO 15848-1, ensuring minimal emissions for environmental and safety compliance.
Can the EB1 be automated?
Yes, its modular mounting design supports easy integration with pneumatic or electric actuators.
What fluids is the EB1 suitable for?
It handles flammable and non-flammable fluids, including chemicals, hydrocarbons, and oxygen.
How does the cavity relieving seat work?
It prevents pressure buildup in the valve cavity, enhancing safety and extending service life.
Is the EB1 fire-safe?
Yes, it meets API 607 and ISO 10497 fire-safe standards for reliable operation in fire-prone environments.
