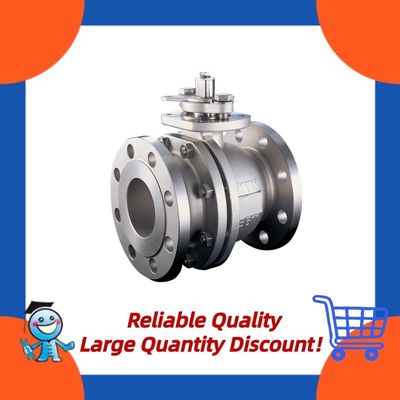

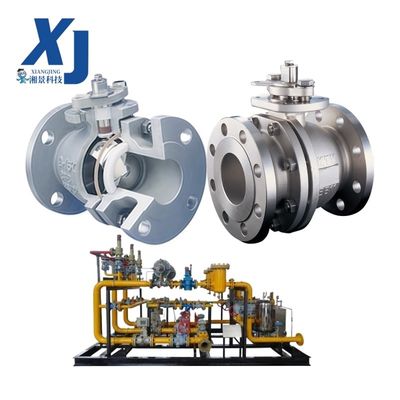

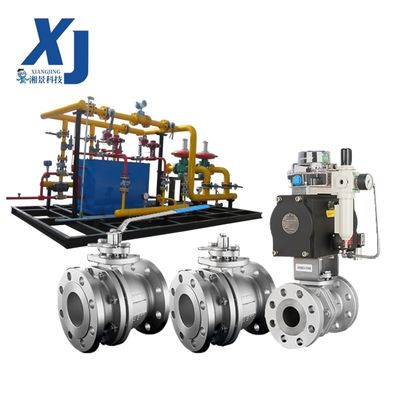

KTM Series EB1 Split Body Floating Ball Valve
Product Overview
The KTM Series EB1 Split Body Floating Ball Valve is a versatile, high-performance solution engineered for precise flow control and reliable shut-off in industrial systems. With its bidirectional soft-seat design, LOW-E fugitive emission certification, and cavity relieving seats, the EB1 ensures safe and efficient operation across a wide range of conditions. Its modular design facilitates seamless automation with manual or powered actuators, making it a preferred choice for petrochemical, oil and gas, cryogenic, and pulp and paper applications. Certified to API 607, ISO 10497, and ISO 15848-1, the EB1 delivers superior performance at a competitive price.
Key Features
- Bidirectional Soft Seats: Ensures zero-leakage shut-off in both flow directions.
- LOW-E Fugitive Emission Control: Certified to ISO 15848-1 for environmental compliance.
- Cavity Relieving Seats: Enhances safety by preventing pressure buildup in the valve cavity.
- Easy Automation: ISO mounting pad and modular design for quick actuator integration.
- Fire-Safe Design: Complies with API 607 and ISO 10497 for fire resistance.
- High-Pressure Capability: Supports ASME Class 150–600 for demanding applications.
- Customizable Options: Includes chain wheels, limit switches, and security features for tailored solutions.
- Robust Construction: Built with carbon steel, stainless steel, or exotic alloys for durability.
- Wide Temperature Range: Operates from -46°C to 400°C for versatile use.
Technical Specifications
| Parameter |
Specification |
| Valve Size |
DN 15 to DN 200 (NPS ½" to 8") |
| Pressure Rating |
ASME Class 150 to 600, PN 10 to 100 |
| Temperature Range |
-46°C to 400°C (-50°F to 752°F) |
| Body Materials |
Carbon steel (ASTM A216 WCB), Stainless steel (CF8M), Exotic alloys |
| Ball Materials |
Stainless steel, Chrome-plated options |
| Seat Materials |
PTFE, PFE copolymer, Metal (Metaltite) |
| End Connections |
Flanged, Threaded, Welded |
| Shut-Off Class |
API 598, Zero leakage (soft seats) |
| Certifications |
ISO 15848-1, API 607, ISO 10497, PED, SIL capable, CE |
| Actuation Options |
Manual (handle, gear), Pneumatic, Electric |
Applications
The KTM Series EB1 Ball Valve excels in versatile flow control applications:
- Petrochemical Processing: Reliable shut-off for corrosive and high-pressure fluids.
- Oil and Gas Pipelines: Ensures safe flow control in upstream and downstream operations.
- Cryogenic Systems: Supports LNG and low-temperature gas applications.
- Pulp and Paper: Manages chemical and slurry flows with precision.
- Industrial Gas: Safe handling of oxygen and other gases with specialized designs.
Frequently Asked Questions
How does the EB1 ensure low emissions?
Its LOW-E fugitive emission certification to ISO 15848-1 minimizes leaks, ensuring environmental safety.
What actuators are compatible with the EB1?
It supports manual, pneumatic, and electric actuators, with a modular design for easy integration.
Is the EB1 suitable for cryogenic applications?
Yes, it operates down to -46°C with specialized materials for LNG and cryogenic systems.
What is the benefit of bidirectional shut-off?
It ensures zero leakage in both flow directions, enhancing reliability in critical applications.
How does the fire-safe design work?
The valve is certified to API 607/ISO 10497, maintaining integrity during fire exposure.
