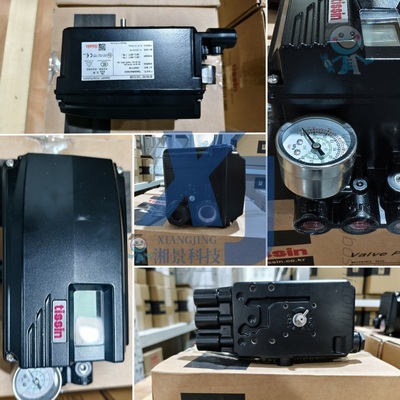

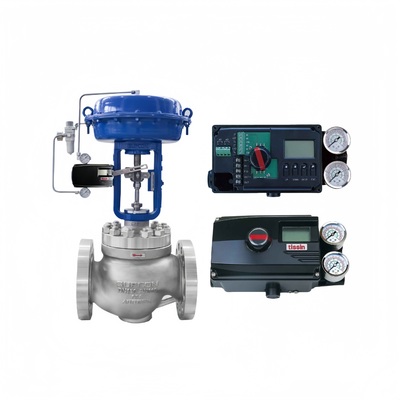

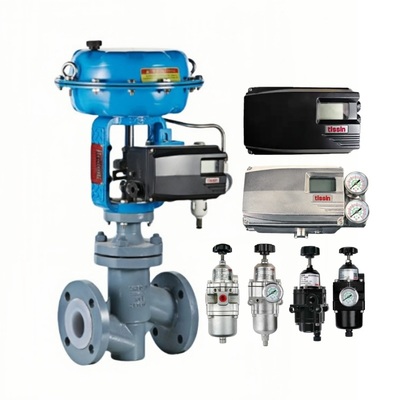

Precision Control TISSIN TS800 Intrinsically Safe Type Digital Intelligent Valve Positioner for Industrial Automation

The Tissin TS800 Smart Valve Positioner is a compact, high-performance electro-pneumatic device designed to accurately control valve stroke in response to 4-20 mA input signals from control panels, DCS, or calibrators. Featuring advanced auto-tuning and self-calibration capabilities, it ensures optimal positioning for linear and rotary actuators with minimal hysteresis. With a robust IP66 enclosure and optional explosion-proof configurations, the TS800 is ideal for chemical, water treatment, and oil & gas industries. Its low air consumption and simple installation make it a cost-effective solution for process optimization and reliable operation.

• Smart Auto-Tuning: Automatic calibration for quick setup.
• 4-20 mA Input: Standard analog signal compatibility.
• Low Air Consumption: Efficient operation with 0.14–0.7 MPa supply.
• IP66 Protection: Dust and water resistant enclosure.
• Universal Mounting: For linear (10-150 mm stroke) and rotary (0-90°) actuators.
• Explosion-Proof Option: Ex ia IIC T5/T6 for hazardous areas.
• Easy Maintenance: Modular design for field servicing.
• Compact Size: Lightweight aluminum body for space-saving.

• Chemical Processing: Valve control in reactors and pipelines.
• Water Treatment: Flow regulation in treatment plants.
• Oil & Gas: Actuator positioning in hazardous areas.
• Pharmaceutical: Hygienic valve automation.
• Power Generation: Steam and fuel valve management.

4-20 mA DC with 500 Ω impedance.

Yes, optional Ex ia IIC T5/T6 certification.

Linear 10–150 mm, rotary 0–90°.

PT1/4 or NPT1/4 threads.

Yes, less than 1 W consumption.

For more information about the Tissin TS800 Smart Valve Positioner, pricing, or to request a demo, contact our team:

• Email: seanshen@gbsxj.com
• Phone: +8613032169980

• Tissin TS805: Stainless steel variant.
• Tissin TS820: Remote sensor model.
• Tissin Control Valves: Compatible valve lineup.
• Tissin Calibration Services: On-site verification.
