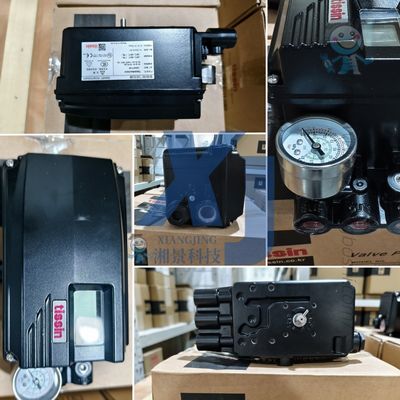

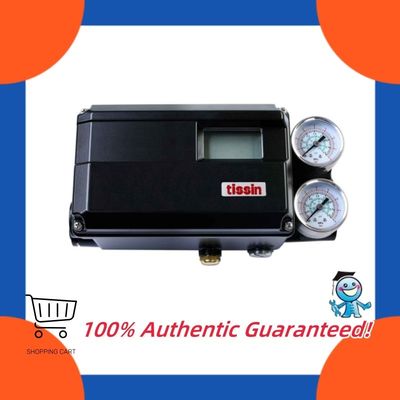

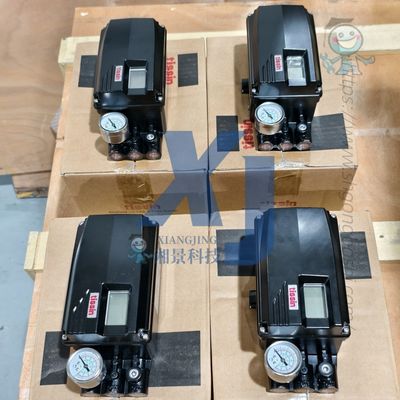

Supplier Break Signal Retaining Type Smart Valve Positioner TISSIN TS700 Digital Valve Controller Price

The Tissin TS700 is a high-performance yet economical pneumatic valve positioner designed for linear and rotary actuators using standard 3-15 psi (0.2–1.0 bar) input signals. Featuring ±0.5% linearity and hysteresis, low air consumption (less than 5 LPM), and simple external zero/span adjustment, it delivers reliable control without the complexity of digital electronics. With a rugged die-cast aluminum body, IP66 protection, and optional limit switches, the TS700 is the ideal choice for general industries where proven analog technology and minimal maintenance are preferred.

• 3–15 psi Standard Input: Direct compatibility with pneumatic controllers
• ±0.5% Linearity & Hysteresis: Excellent repeatability and stability
• Split-Range Capability: 3-9 psi or 9-15 psi with one unit
• Low Air Consumption: less than 5 LPM at 1.4 bar
• External Zero & Span Knobs: Adjustment without cover removal
• IP66 Die-Cast Aluminum Body: Epoxy-coated for corrosion resistance
• High Air Delivery: 180 LPM supply / 350 LPM exhaust
• NAMUR & ISO Mounting: Universal actuator compatibility

• Water & wastewater treatment plants
• HVAC and building automation
• Food & beverage (non-hygienic)
• Pulp & paper auxiliary systems
• General industrial process control

No — it is a pure pneumatic analog positioner (3-15 psi only).

Yes — easily adjustable to 3-9 psi or 9-15 psi.

less than 5 LPM — extremely economical.

No — fully pneumatic operation.
