Flowserve 3200MD Digital Positioners Logix 3200MD Pneumatic Positioner Valve Positioner

Product Overview

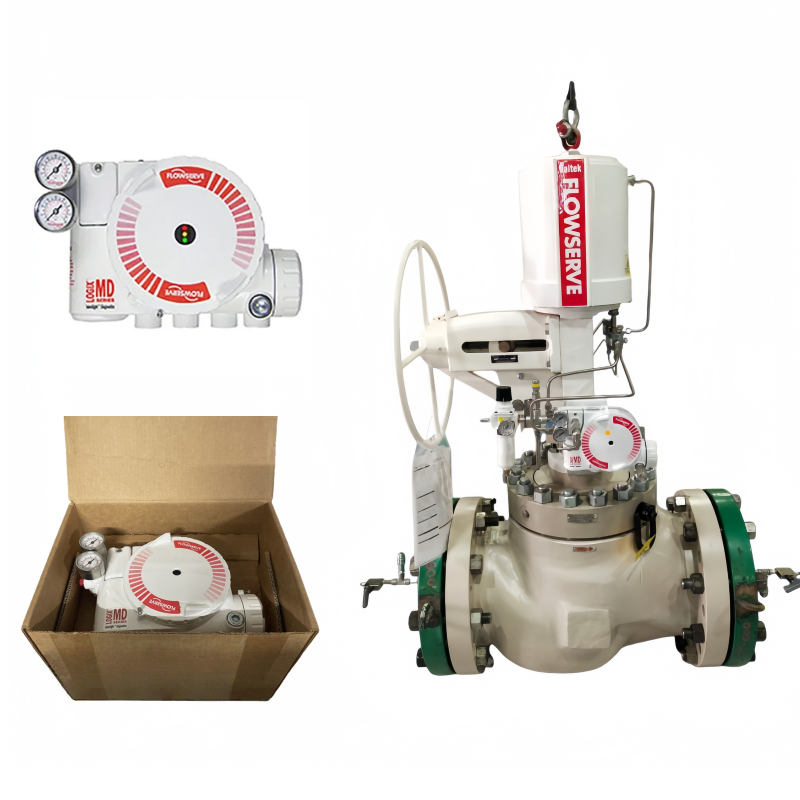

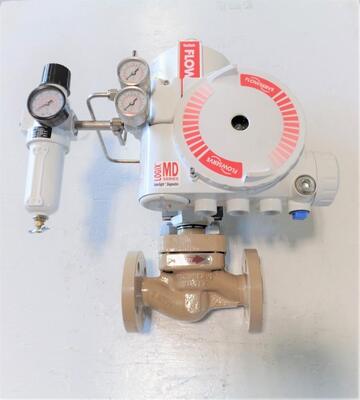

The Flowserve Logix 3200MD Digital Valve Positioner is a high-performance smart positioner designed to provide precise and reliable control of pneumatic control valves in demanding industrial process applications.It combines advanced microprocessor technology with robust mechanical design to ensure accurate valve positioning, fast response, and long-term operational stability.

The Logix 3200MD supports HART communication and analog 4–20 mA input, enabling seamless integration with modern DCS, PLC, and asset management systems. Its modular design and intuitive configuration make it suitable for both new installations and retrofit projects.

Widely used in oil and gas, chemical processing, power generation, and general industrial automation, the Logix 3200MD helps improve process efficiency, reduce downtime, and enhance valve performance.

Key Features

• High-precision digital valve positioning for pneumatic control valves
• Supports 4–20 mA input with HART communication
• Fast response time for improved process control
• Advanced diagnostics for valve and actuator condition monitoring
• Auto-calibration and easy commissioning
• Robust housing suitable for harsh industrial environments
• Compatible with linear and rotary actuators
• Low air consumption for energy-efficient operation
• Configurable control parameters for optimized valve performance
• Optional local display and buttons for field setup

Technical Specifications

Applications

• Control valve positioning in oil and gas production and refining
• Flow, pressure, and level control in chemical and petrochemical plants
• Steam and utility control systems in power generation
• Process automation in water and wastewater treatment
• General industrial valve automation and retrofit projects

Benefits

• Improves control valve accuracy and repeatability
• Enhances overall process stability and efficiency
• Reduces maintenance through predictive diagnostics
• Shortens commissioning time with auto-setup features
• Ensures reliable operation in harsh industrial environments
• Supports digital plant strategies with HART communication

How It Works

The Logix 3200MD receives a 4–20 mA control signal from the control system.Its internal microprocessor compares the signal with valve position feedback and adjusts the pneumatic output to the actuator accordingly.This closed-loop control ensures accurate valve positioning while continuously monitoring valve and actuator performance.

Diagnostic data can be accessed locally or remotely via HART, enabling condition-based maintenance and troubleshooting.

Installation Overview

1. Mount the positioner to the control valve or actuator using the appropriate mounting kit
2. Connect instrument air supply and pneumatic outputs
3. Wire the 4–20 mA input signal loop
4. Perform auto-calibration using local controls or HART communicator
5. Verify valve travel and response under operating conditions

Frequently Asked Questions

• What valves are compatible with the Logix 3200MDIt is compatible with most linear and rotary pneumatic control valves.
• Does the Logix 3200MD support HART communicationYes, HART protocol is supported for configuration and diagnostics.
• Can it be used in hazardous locationsHazardous-area approved versions are available depending on model configuration.
• Is it suitable for retrofit projectsYes, the modular design makes it ideal for replacing older analog positioners.
• What are the main advantages over analog positionersImproved accuracy, diagnostics, faster response, and digital communication capabilities.
