Emerson Industrial Vortex Flow Meter Liquid 8800 Series Rosemount Smart Flowmeter Gas

The Rosemount 8800 Vortex family (especially the 8800D) is the meter that survives steam, dirty gases, and harsh conditions. No impulse lines, no ports, no gaskets – just a solid, all-welded body that stays reliable. The isolated sensor means you can pull it for maintenance without shutting down the process. It's the one plants keep coming back to for steam and critical flow points.

• Gasket-free, non-clog meter body – maximum availability
• Replaceable sensor without breaking seals
• Excellent vibration immunity through mass balancing
• Adaptive Digital Signal Processing for low flow and noise
• MultiVariable option – integral temperature for steam mass flow
• Reducer version – built-in reducing flanges to save piping
• Quad sensor version – for ultimate redundancy

• Flow Meter Accuracy: ±0.65% of volumetric rate for liquids; ±1.0% for gas and steam
• Turndown: Up to 38:1
• Process Temperature: -40 °F to +450 °F (-40 °C to +232 °C) standard; extended to +800 °F possible
• Pressure Rating: Up to ASME Class 1500 or PN 100
• Line Sizes: ½ to 12 inch (15 to 300 mm) standard; reducer up to 14 inch
• Output: 4–20 mA HART, FOUNDATION Fieldbus, Modbus RS-485
• Materials: 316/316L stainless steel standard

• Saturated and superheated steam measurement
• Boiler feed and condensate return
• Dirty or viscous gases
• Critical process lines needing no leaks

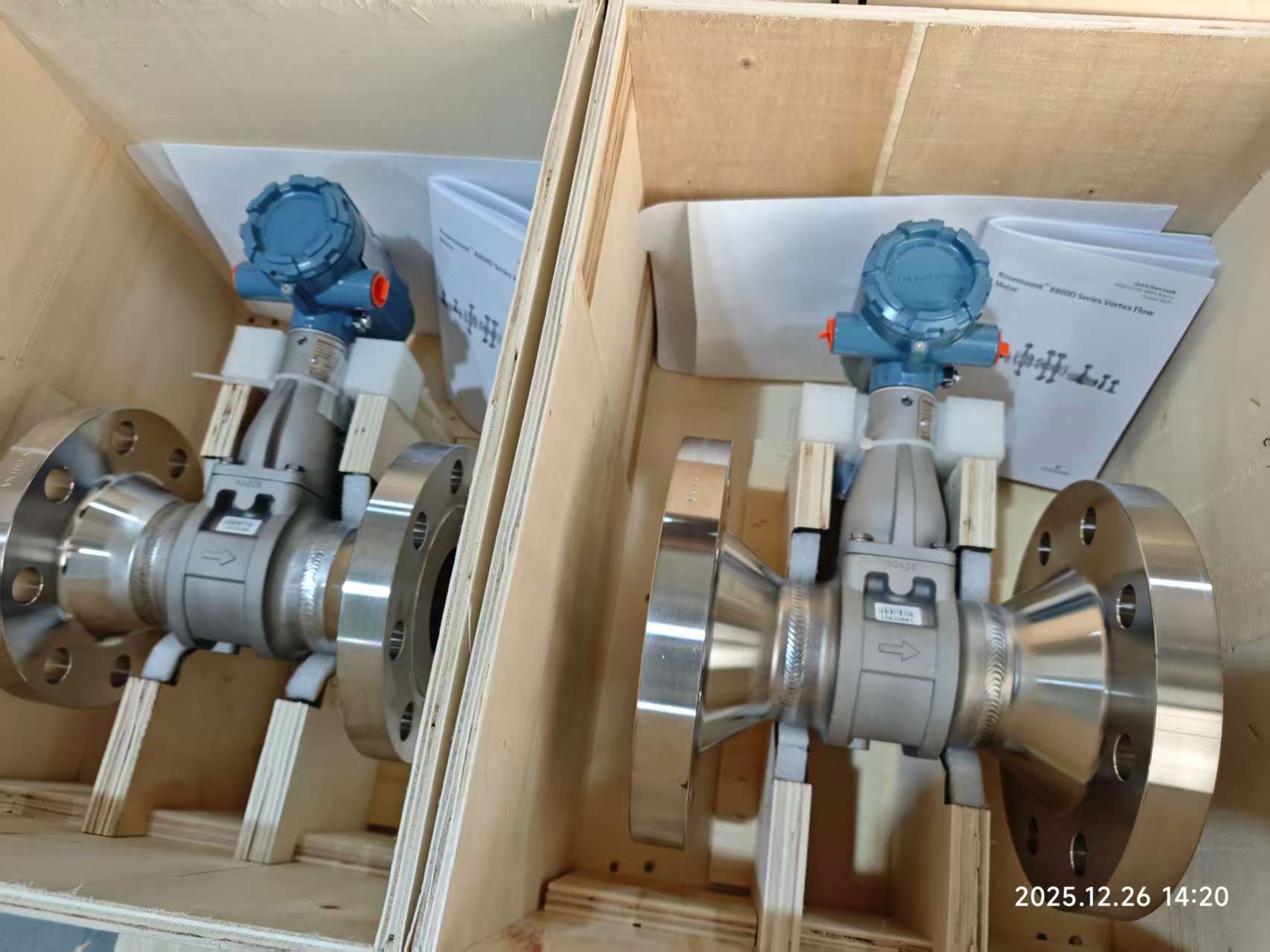

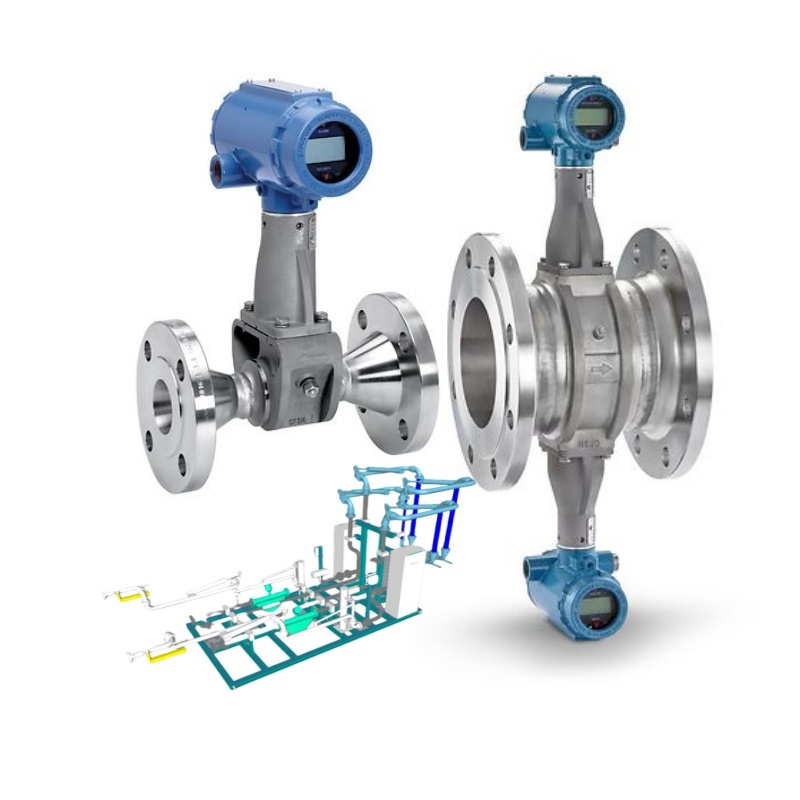

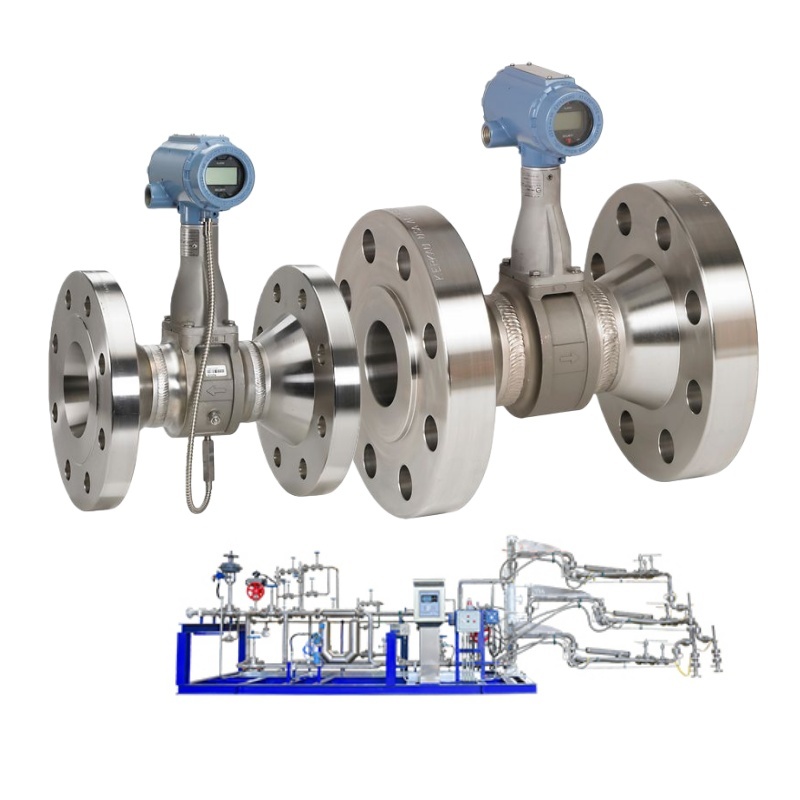

• Rosemount 8800 Reducer Vortex – saves on piping
• Rosemount 8800 MultiVariable – for steam mass flow
• Rosemount 8800 Dual/Quad – for safety/redundancy
