Valworx 5298 5299 Series Digital Valve Positioner Smart Valve Controller SMC JSX JSXM JSXD JSXP JSXR JSXZ Solenoid Valves

Product Overview

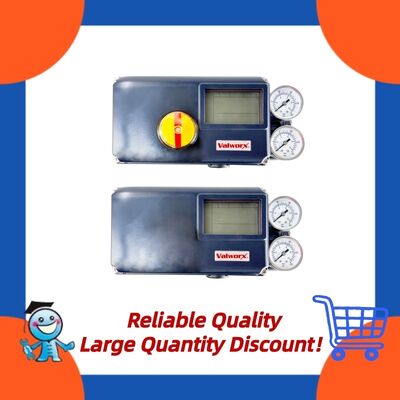

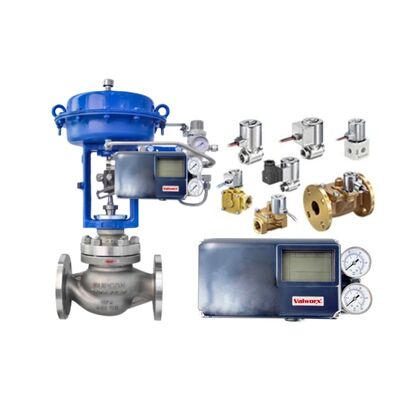

The Valworx 5298 digital smart positioner upgrades pneumatic actuators to smart control with 4-20mA input. It often comes packaged with an SMC solenoid for electrically piloted operation. This combination gives fast, accurate valve positioning with diagnostics, making it popular for retrofits and new actuated valve packages in process plants.

Features

• Digital display for real-time position and status
• Automatic zero/span calibration
• Valve diagnostics and performance monitoring
• Low steady-state air use
• Direct NAMUR mounting
• SMC solenoid for reliable pilot function
• Easy integration with existing systems

Technical Specifications

• Input Signal: 4-20mA DC
• Supply Pressure: 20 to 100 psi (filtered, dry, oil-free air)
• Flow Capacity: 8.8 SCFM @ 20 psi
• Air Consumption: 0.9 SCFM @ 20 psi
• Stroke: Linear 10-150 mm, rotary 55-100°
• Mounting: Direct to actuator (NAMUR standard)

Applications

• Quarter-turn ball and butterfly valve control
• Water treatment and chemical dosing
• General process automation
• Retrofit of manual valves to actuated

FAQ

Q: Is SMC solenoid included? A: Yes in many packaged setups for direct mount.

Q: Air consumption low? A: Very low – 0.9 SCFM steady state.
